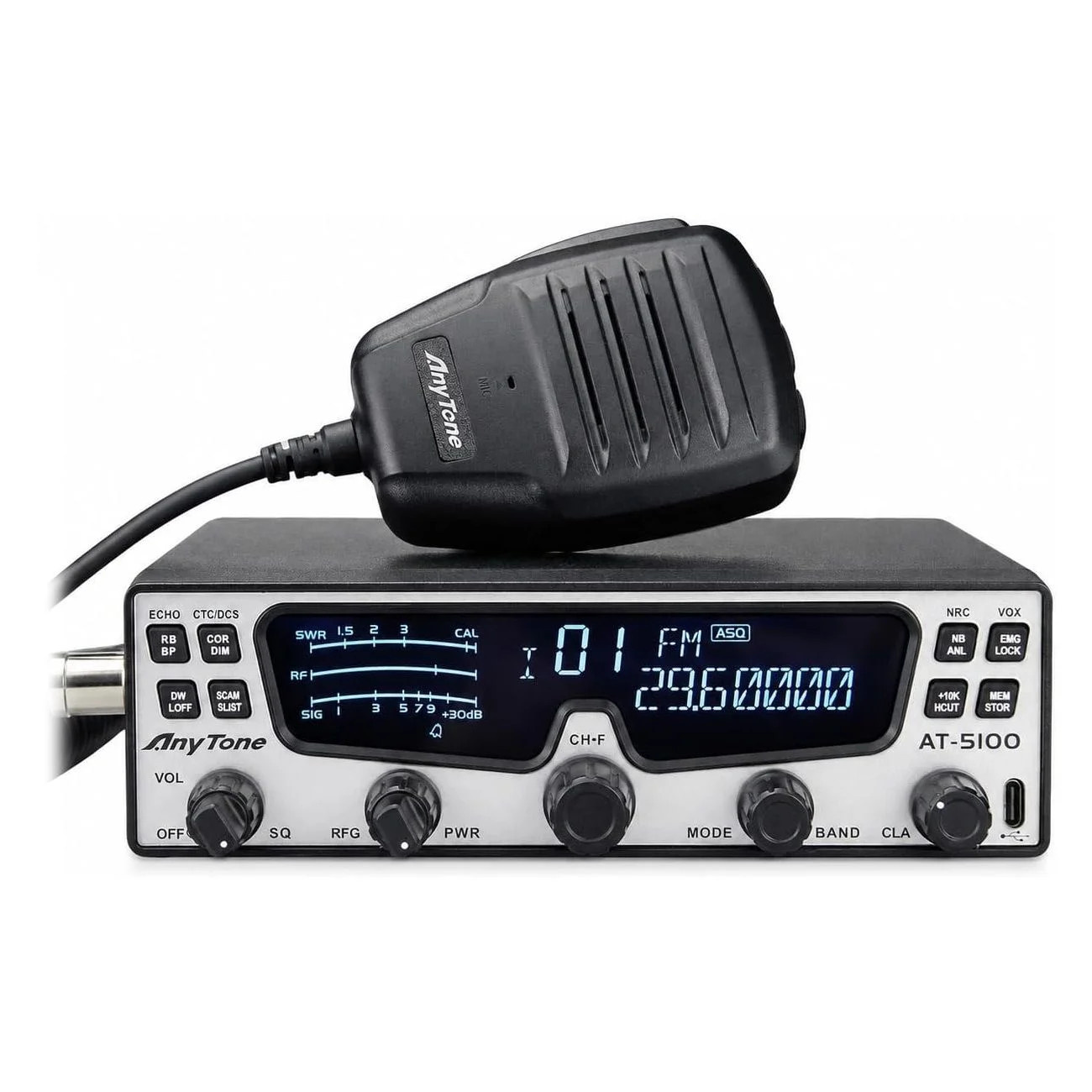

Anytone AT-5100 BT Mobile Transceiver 10m SSB AM FM CW 35W NRC
Read the reviewThe Anytone AT-5100 BT is a high-performance multi-mode mobile transceiver specially designed for the 10-metre band (28 MHz) and, as an option, the extended HF bands from 24 MHz to 29.6 MHz.
Suitable for mobile or fixed-station use, it offers a full range of modulation modes (AM, FM, USB, LSB, CW, PA) and a transmit power of up to 35W PEP.
- Wide frequency coverage from 24.715 MHz to 30.105 MHz
- All modes: AM, FM, USB, LSB, CW and Public Address (PA)
- High RF power: 35W PEP in AM, 30W in FM and 30W in SSB
- Active NRC digital noise reduction during transmission (TX) and reception (RX)
- Ultra-fine 10 Hz step size for precise tuning
- Advanced functions: ASQ automatic squelch, CTCSS/DCS, Dual Watch and adjustable echo
- Programmable via computer using dedicated software
- Bluetooth version
Supplied with: Anytone AT-5100 BT transceiver, handheld microphone with control buttons, mounting bracket with fixing hardware, 12V DC power cable with fuse, microphone stand, user manual.
Data sheet
- NRC TX/RX noise reduction: Features a digital signal processor (DSP) to clean up the audio signal on reception whilst filtering out ambient noise during your transmissions.
- Adjustable transmit power: Delivers up to 35W PEP in AM and 30W in FM/SSB to cut through QRM and optimise long-distance links.
- Ultra-precise tuning: A wide range of frequency steps (10 Hz, 100 Hz, 1 kHz, 5 kHz, 10 kHz, 100 kHz, 1 MHz) for perfect tuning in SSB (USB/LSB) and CW.
- Dual Watch: Simultaneous monitoring of two different channels or frequencies so you never miss a contact.
- Versatile operating modes: Full support for AM, FM, USB, LSB, CW and PA sound modulation.
- Full customisation: Programmable via PC to adjust your settings, memory frequencies and operating options.
Technical specifications
- Frequency range: 28.000 MHz to 29.600 MHz (with optional extended range from 24.715 MHz to 30.105 MHz for RX and TX)
- Modulation modes: AM, FM, USB, LSB, CW, PA
- RF output power: AM: 35W PEP / FM: 30W / SSB: 30W PEP
- Audio filter: Active digital NRC system for TX and RX
- Frequency step: 10 Hz / 100 Hz / 1 kHz / 5 kHz / 10 kHz / 100 kHz / 1 MHz
- Subcarriers: CTCSS and DCS encoder/decoder
- Squelch: Manual and automatic (ASQ)
- Built-in functions: Adjustable echo, Dual Watch, Scan, Roger Beep
- Programming: PC software compatible via optional programming cable
- Power supply required: 13.8 V DC nominal
- Antenna connector: SO-239 (UHF female, 50 Ohms)
Compatibility
- Antennas: All HF / 10m / 28 MHz antennas and 27 MHz CB wideband 50 Ohms antennas with PL-259 plug (UHF male).
- Power supplies: Regulated 13.8 V DC power supplies (10 A to 15 A recommended for full-power operation).
- Accessories: External 8-ohm loudspeakers (3.5mm jack), table microphones and standard antenna switches.
- Environment: Mobile installation in a vehicle (car, 4x4, motorhome, lorry with 24V-12V step-down converter) or as a fixed station in a radio shack.
FAQ
What is the NRC function on the Anytone AT-5100?
The NRC (Noise Reduction Circuit) is a digital signal processing (DSP) system that significantly reduces background noise, hissing and static interference during reception, whilst also attenuating ambient noise from the vehicle’s interior during your transmissions.
Does the Anytone AT-5100 require a licence to transmit?
To use this radio on amateur radio bands (particularly 28 MHz / 10m), you must hold an amateur radio licence (HAREC operator’s certificate or equivalent). Listening remains completely unrestricted.
Can this radio be used as a fixed station at home?
Yes, simply connect it to a stabilised 13.8V DC power supply delivering at least 10 to 12 amps and to an HF antenna tuned to the frequency band in use.
What frequency steps are available for VHF tuning?
The Anytone AT-5100 allows for very fine tuning thanks to configurable steps of 10 Hz and 100 Hz, facilitating perfect tuning and a natural voice tone in USB and LSB.
