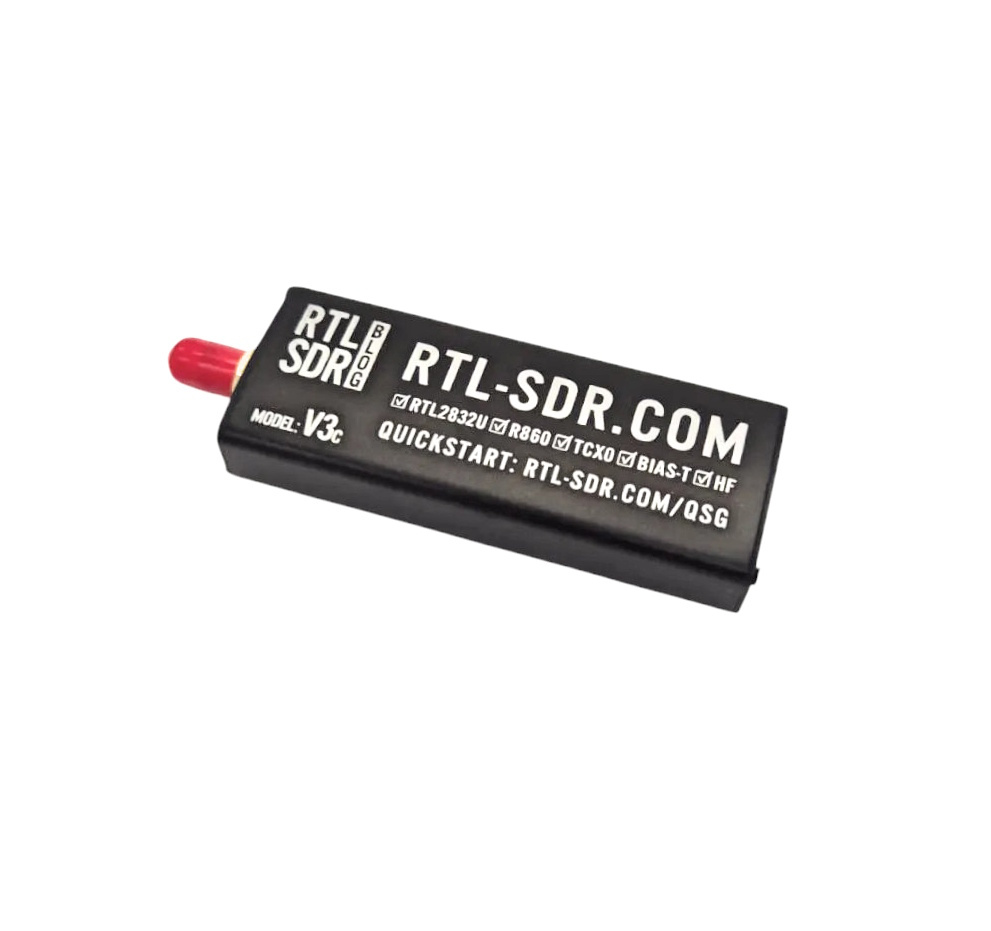

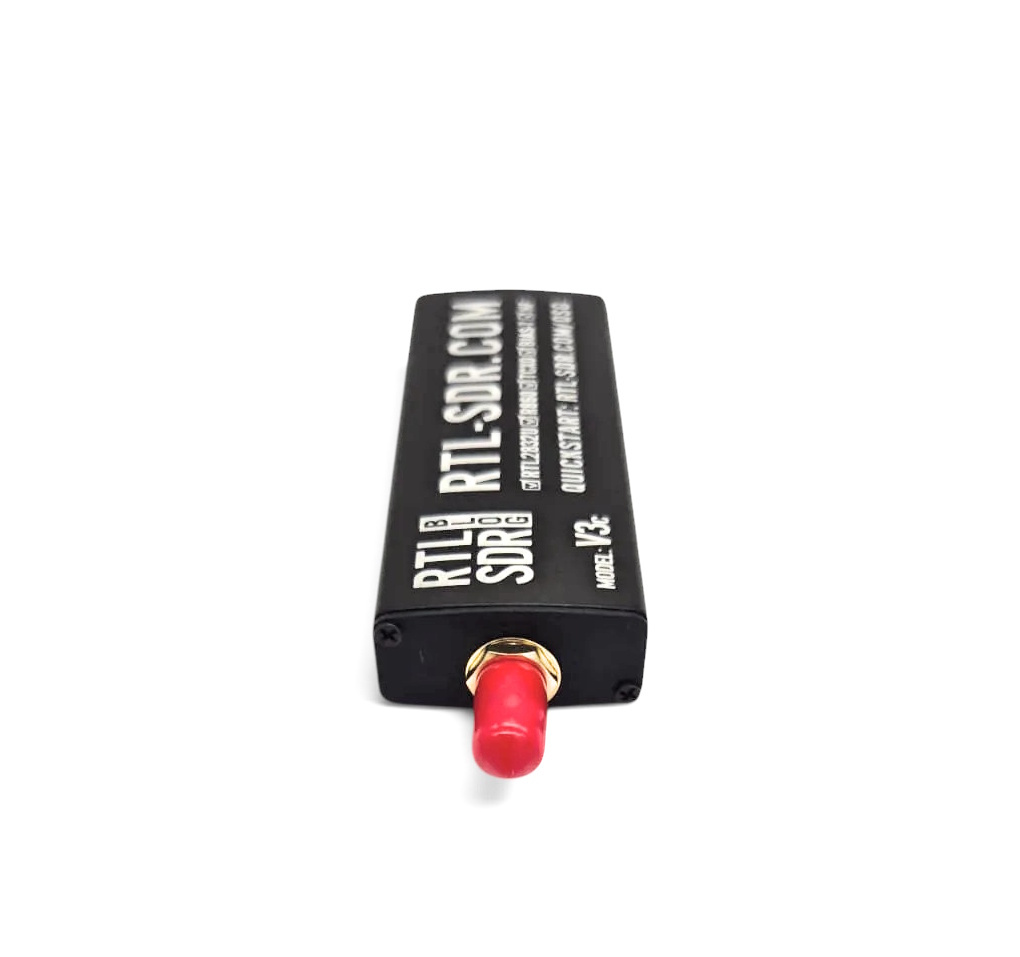

RTL-SDR V3 USB-C TCXO + SMA + Bias-T dongle with R860 tuner
No review at the momentRTL-SDR V3 version with USB-C, featuring the R860 tuner (identical to the R820T2) for reception from 24 to 1766 MHz.
Specifications of the RTL-SDR v3 dongle:
- 1 PPM TCXO (better frequency stability and accuracy)
- Female SMA antenna connector
- Realtek RTL2832U chipset + R860 tuner (e.g. R820T2)
- 4.5V Bias-T power supply via SMA, allows an LNA or active antenna to be powered via coaxial cable
- Aluminium casing with passive cooling
- Experimental: HF mode from 500 kHz to 24 MHz via direct sampling

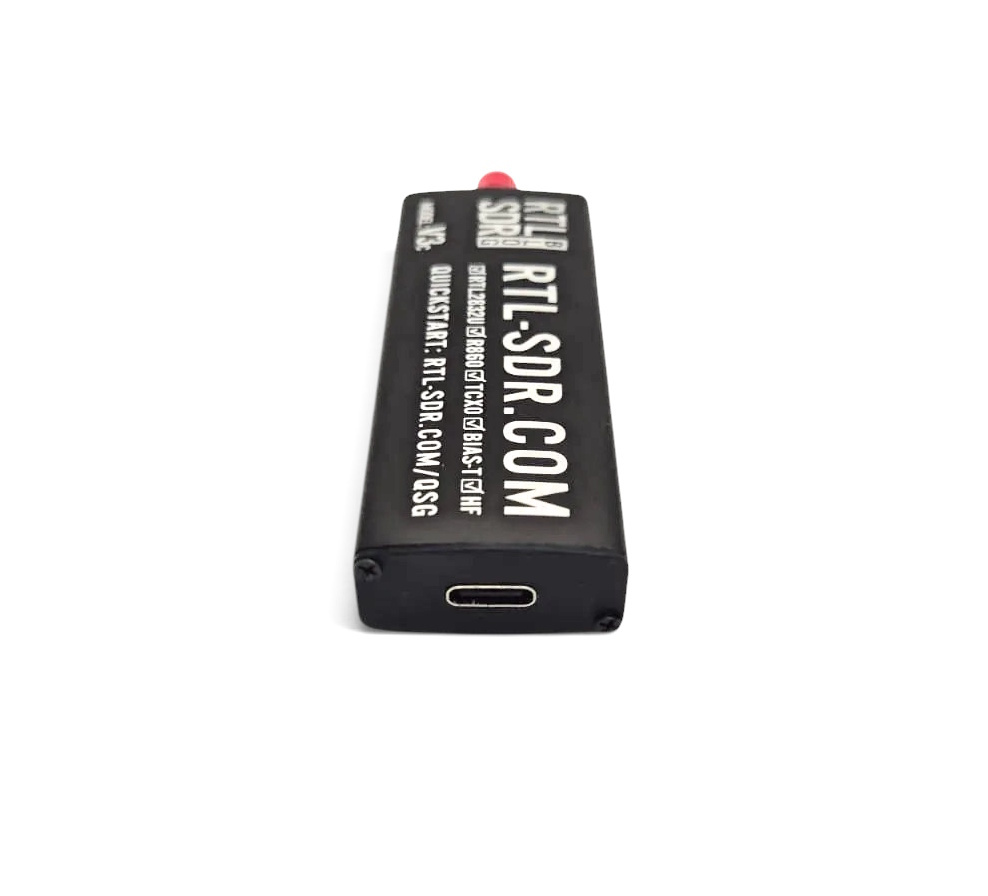

- New : With USB-C port
Antenna kit (optional): 1 dipole antenna mount with 60 cm of cable, 2 telescopic antennas (23 cm to 1 m), 2 telescopic antennas (5 to 13 cm), a 3-metre RG174 extension cable, a flexible tripod and a suction cup.
Supplied with: 1 RTL-SDR V3 dongle (without antenna or CD), with optional antenna kit.
Add all HF bands with the Ham It Up SDR converter to listen to everything from 0.5 to 50 MHz
Other RTL2832U versions available: RTL-SDR V4L and Nooelec NESDR SMART
Data sheet
Choosing an antenna for SDR reception
To get the most out of this RTL-SDR.com dongle in scanner mode, you need to match the antenna to the frequencies you wish to listen to (VHF/UHF) and position it outdoors – at the very least on a window sill, but ideally as high up and unobstructed as possible, mounted on a mast or on the roof of a house or car.
Discover our range ofbroadband and discone antennas, as well as the mounting brackets available.
RTL-SDR V3 Setup and Guide
The RTL-SDR V3 USB dongle is installed and used in the same way as all RTL2832 dongles: by installing the drivers using the Zadig software, then installing the SDR software of your choice.
The V3 version offers three additional features: HF Direct Sampling Mode, Bias-T and software-adjustable clock; see the guide above, available for download (in English).
