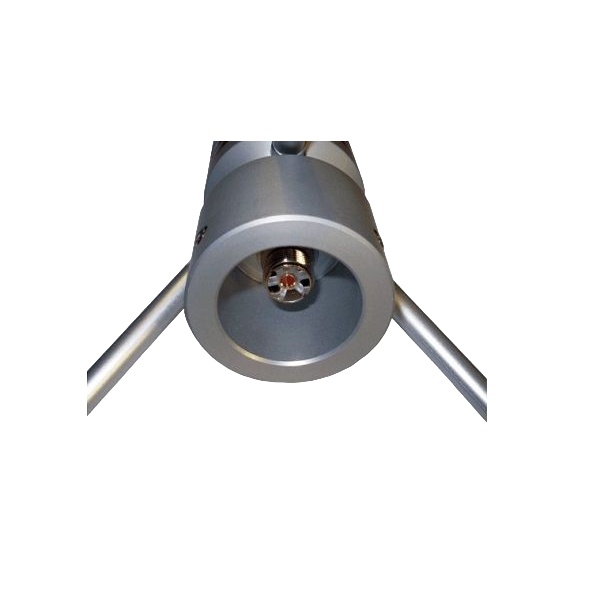

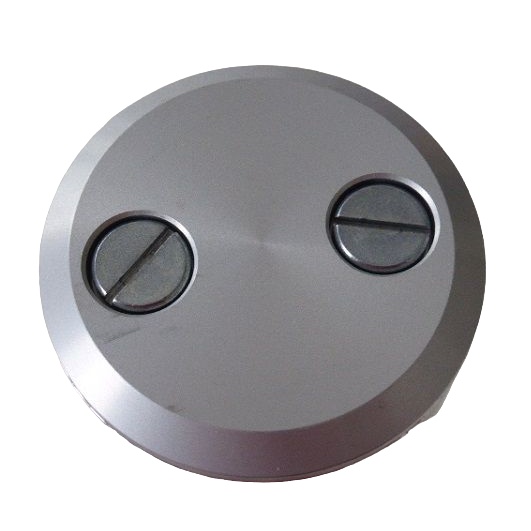

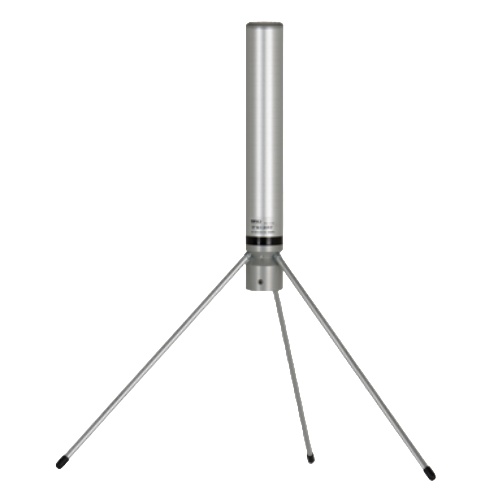

145-175 MHz VHF Base Antenna Sirio GP 160 LB 1000W
No review at the momentSirio GP 160 LB fixed base station antenna for the 145-175 MHz VHF band.
Features :
- Frequency range: 145 - 175 MHz
- Antenna type: 1/4λ ground plane
- Mounting type: On mast (35 to 54 mm)
- Antenna whip: Anodised aluminium
- Radials: 3 with a length of 51cm
- Length: Whip 38 cm, total approx. 70 cm
- Maximum power: 1000 Watt (CW)
- Connector: UHF-Female (SO-239)
Delivered with : Sirio GP 160 LB, with UHF-female connector, 1 English manual (without coaxial cable and mounting bracket).
The optional FT-2 mounting bracket is required to install this antenna on a mast.
Download
Data sheet
Antenna type: 1/4 λ wave
Frequency Range:: 380-480 MHz
SWR (SWR): ≤1.7
Impedance: 50Ω
Radiation (H plane): 360° omnidirectional
Radiation (plane E): beamwidth @ -3dB = 80°
Beam angle: 0°
Polarization: vertical linear
Gain: 2.15 dBi (0 dBd)
Max. power: 300 Watts
Antenna to ground
Connector: UHF-female (GP 430 LB-U version) or N-female (GP 430 LB-N version)
Materials: anodized aluminum, stainless steel, nylon
Wind resistance: 200 Km/h
Wind resistance: 0.02 m²
Height: 295 mm
Weight: 200g
Mast mounting: Ø 36-40 mm
Fixing bracket not included
