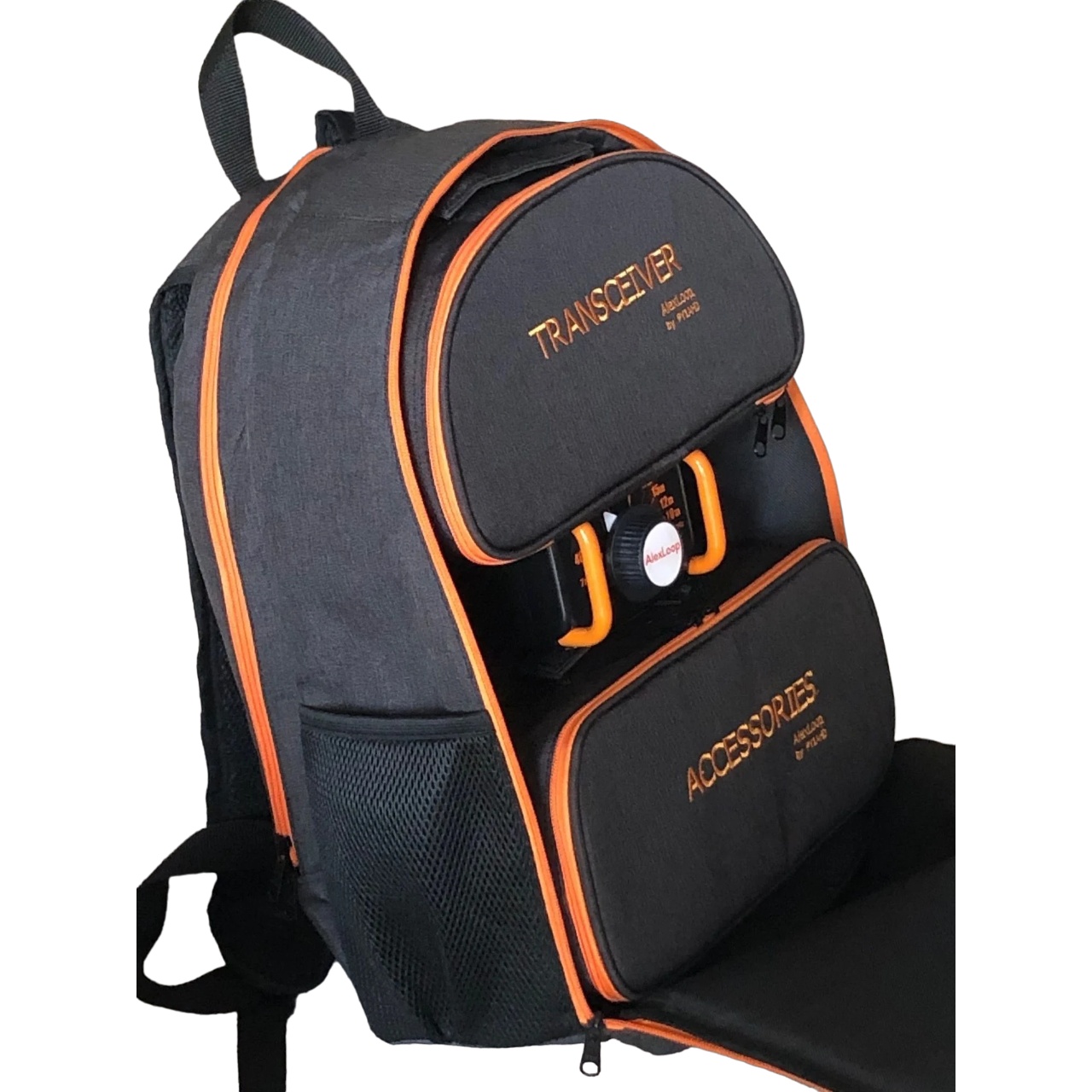

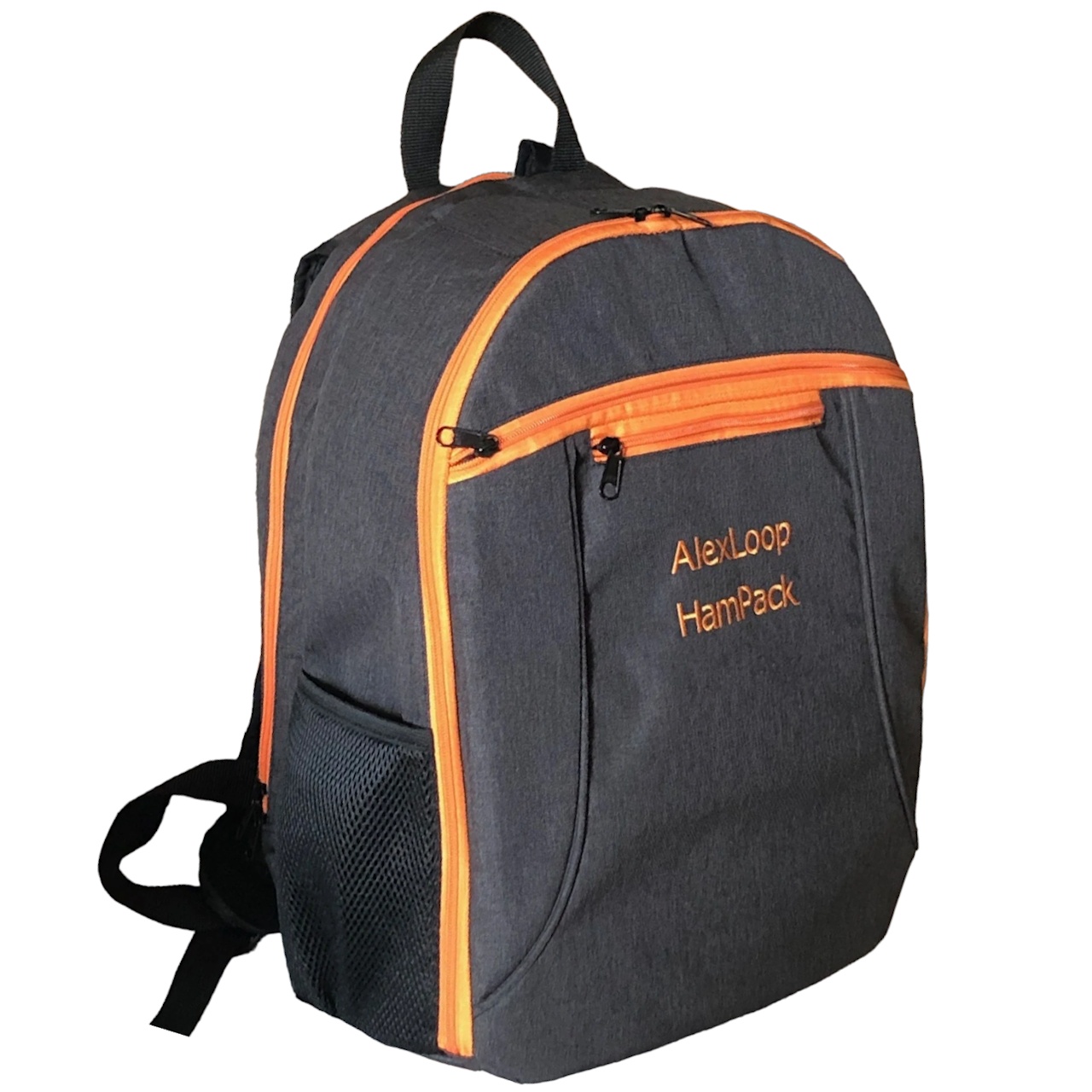

> Radio Antennas>HF 0-30 Mhz>Portable - SOTA>AlexLoop HamPack QRP portable magnetic LOOP antenna with backpack
AlexLoop HamPack QRP portable magnetic LOOP antenna with backpack View larger
Previous Next

AlexLoop

ALEXLOOP-HAMPACK-2635

New product

Brazil.

AlexLoop HamPack QRP portable magnetic LOOP antenna with backpack

rating Read the 3 reviews
Average rating: 5/5 Number of reviews: 3

The AlexLoop HamPack antenna (latest version) is a portable magnetic loop antenna designed for use on amateur radio bands from 10m to 40m and in QRP 25W max. in SSB.

It offers an effective solution for portable, SOTA, POTA or small-space communications.

Its design allows quick installation and adjustment.

  • Antenna type: Portable magnetic loop
  • Frequencies: Covers from 7 MHz to 30 MHz
  • Bands: 40m, 30m, 20m, 17m, 15m, 12m, 10m
  • Maximum power: Up to 10 watts in CW mode (Morse) / digital (FT8, RTTY), etc.) and 25 watts in SSB mode
  • Loop Diameter: Approx. 1 metre
  • Weight: 1.3kg
  • Mounting Type: Photo tripod or similar (not included)

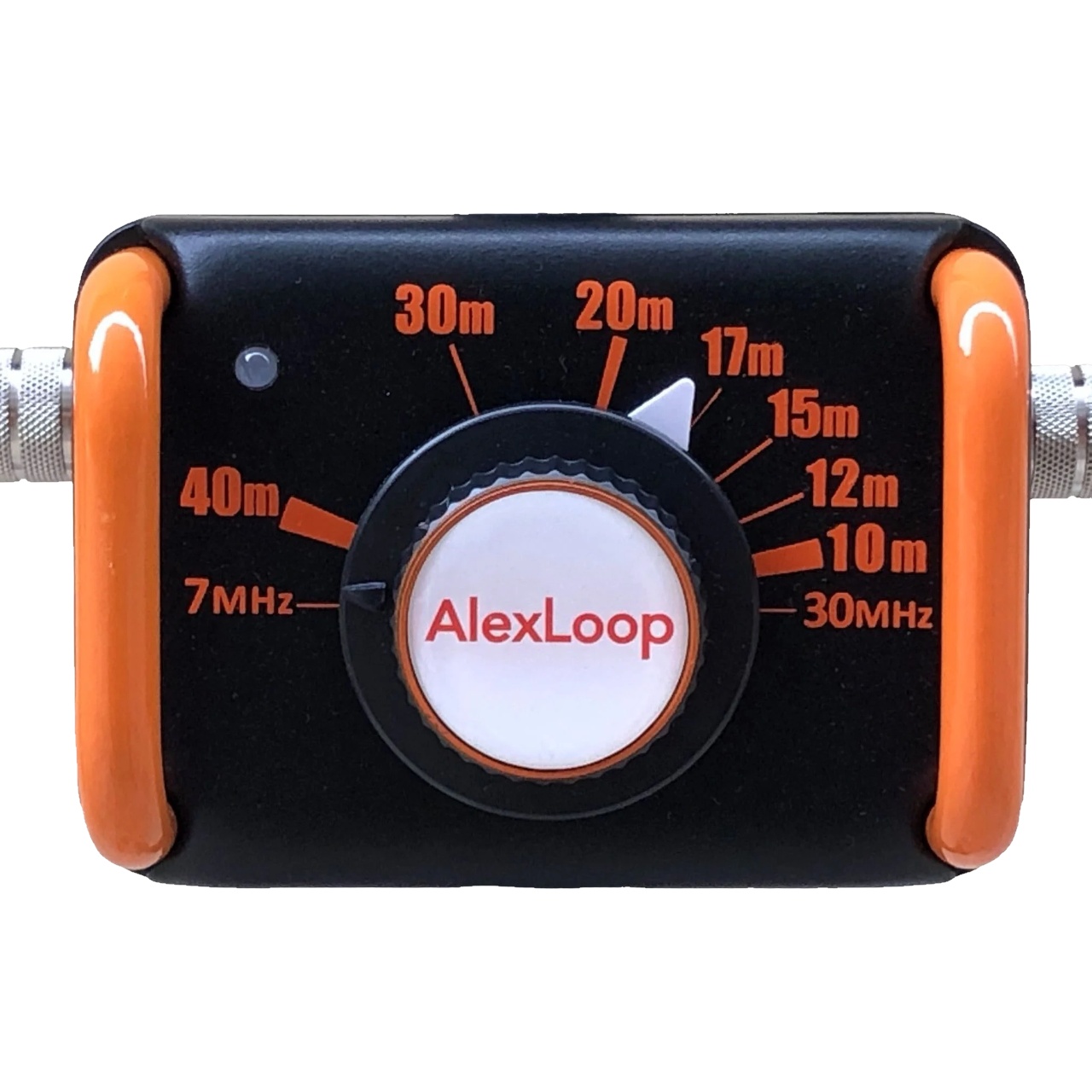

  • Antenna Tuning: Manual tuning via built-in tuner
  • Compatibility: Works with most QRP HF transceivers

The new version incorporates AlexTune, an LED antenna tuning indicator.

Supplied with: 1 AlexLoop tuner, 1 preassembled 2.6 m coaxial cable, 1 doc bag, manual in English and French to download below.

More details

759,00 € tax excl.

This material is no longer available

Download

AlexLoop antenna manual (FR)

French assembly manual for Alexloop antenna. 345.31k

Data sheet

Installation and operation of the loop

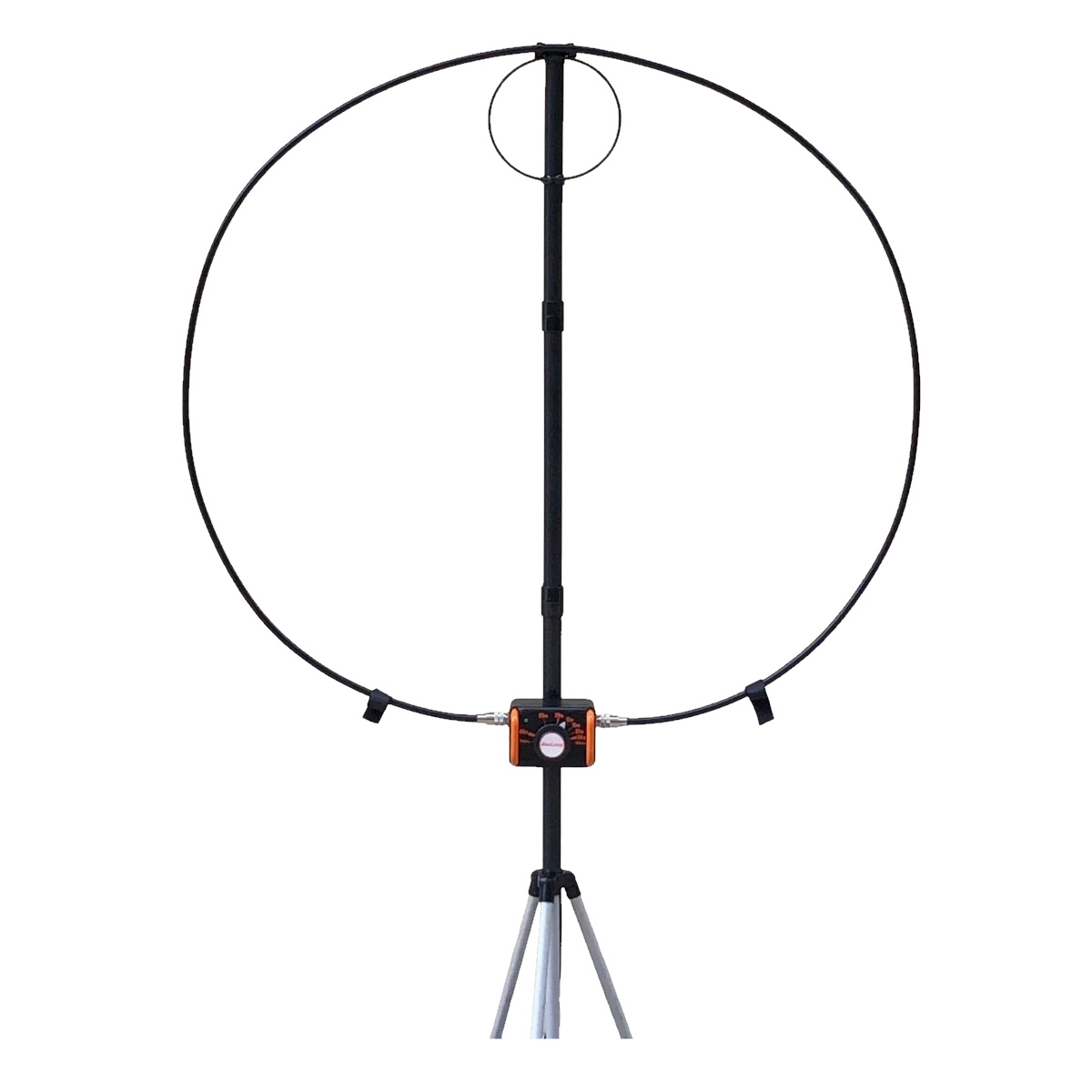

Remove all items from the carry bag. Three black tubes form the backbone of the AlexLoop HamPack.

Insert the tube between the others, so that the small loop is at the top and the tuning box is at the bottom.

The loop and the tuning box must be aligned on the same side of the spine.

The large loop coaxial cable is held firmly in the carry bag by a Velcro strap.

Remove the Velcro and press down on the elliptical ends to return the coax loop to a circular shape, before carefully unwinding it.

The large loop coaxial cable is on the same side of the spine as the large loop coaxial cable.

The large loop coaxial cable is on the same side of the spine as the small loop and the tuning box, with a metal ring holding the large loop in place.

Tilt the coaxial cable inside the metal ring to orient it towards the flattened part of the coaxial cable.

A little pressure from your thumb is needed to engage the coax inside the metal ring on the round tube.

On YouTube "How to correctly engage the AlexLoop coaxial loop" :

Attach the connectors of the large RF loop to the tuner box, making sure that they are aligned to avoid crossovers.

It is important that the PL259 plugs are screwed firmly into the tuner connectors.

The large loop should be positioned to represent a circle, gently reshaping it if necessary.

Unwind the thinner coaxial cable and connect the BNC plug to your transceiver.
