> Coaxial cables>RF Connectors>M&P Crimp Pliers for 50 Ohm connectors
M&P Crimp Pliers for 50 Ohm connectors View larger
Previous Next

Messi & Paoloni

MESSI-CRIMP50OHM-1826

New product

Italy

M&P Crimp Pliers for 50 Ohm connectors

rating No review at the moment

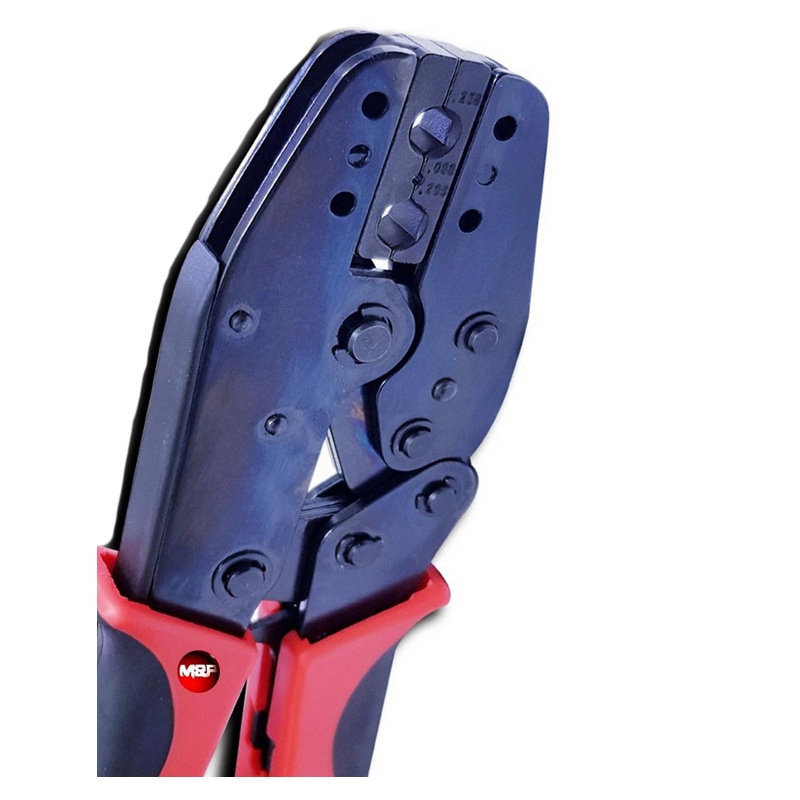

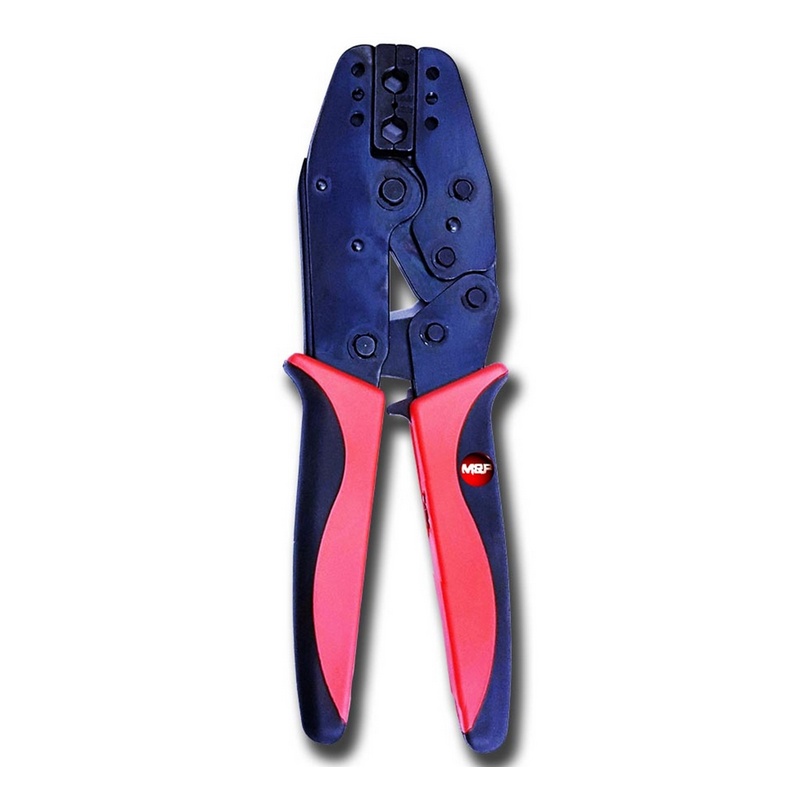

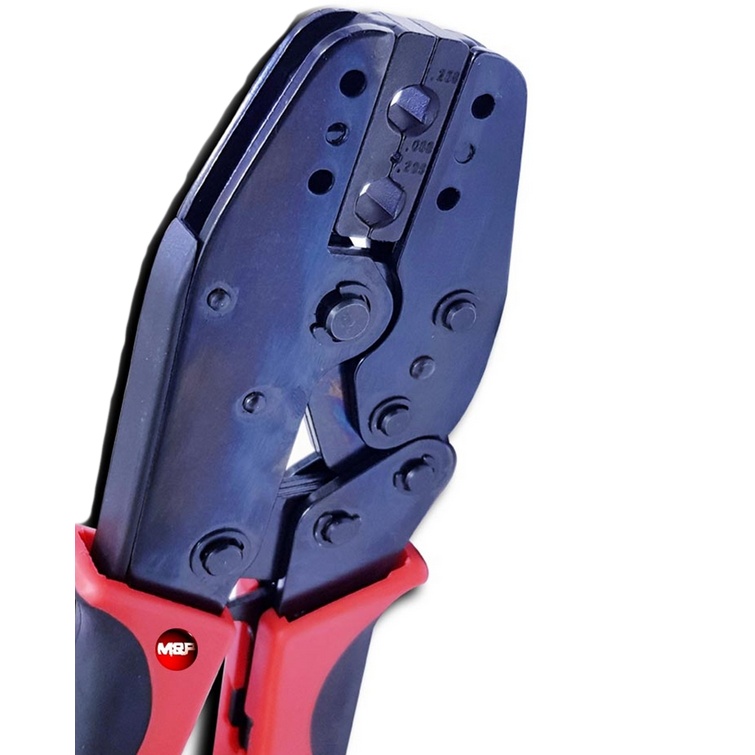

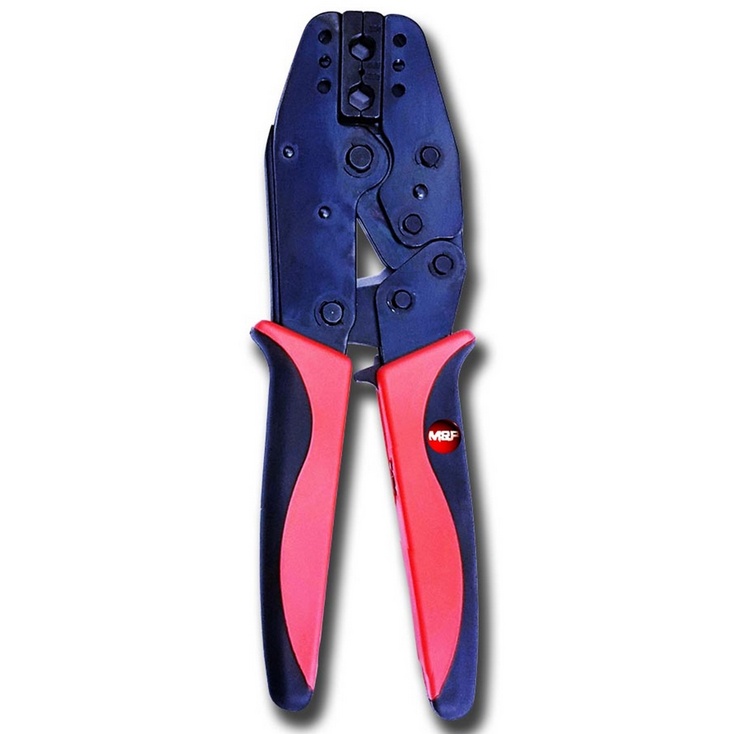

Crimping tool for 50 Ohm Messi & Paoloni connectors, 5mm, 7mm, 10.3mm and Hyperflex and Ultraflex cables.

Includes 1 crimping tool and 2 interchangeable dies, to be used according to the type of cable and connector.

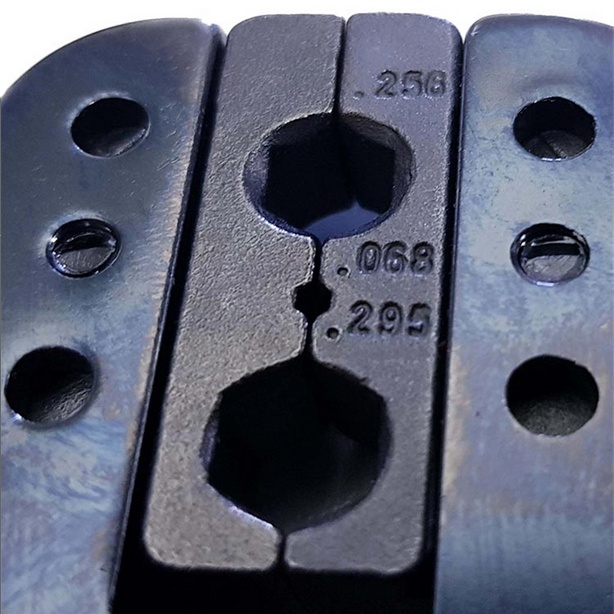

Die No. 1

  • Hole .256 = SMA and BNC connectors for Hyperflex 5
  • Hole .068 = SMA and BNC connector for Hyperflex 5
  • Hole .295 = N-type connector for Ultraflex 7

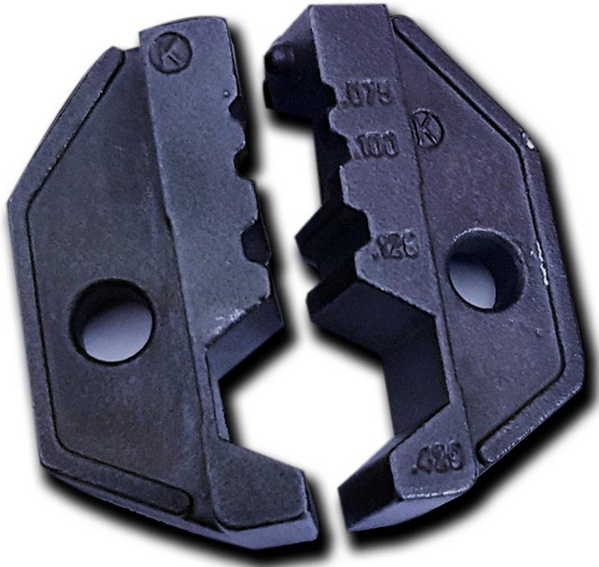

Matrix #2

  • Hole .100 = N-type pin for Ultraflex 7 and all 10.3mm cables
  • Hole .128 = N-type pin for all 10.3mm cables
  • Hole .429 = N-type connector for all 10.3mm cables

52,33 € tax excl.
