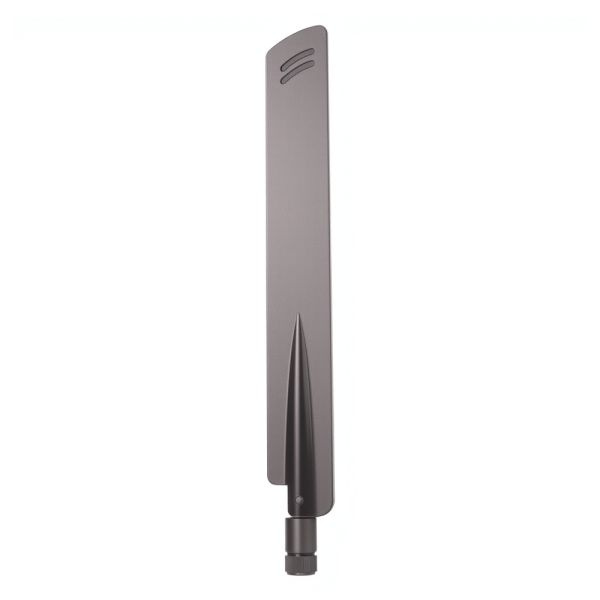

Elecrow 868/915 MHz LoRa Antenna, SMA Male, Directional, Foldable Paddle

This LoRa directional antenna is the ideal accessory for users looking to extend the range of their IoT nodes or gateways. Unlike traditional omnidirectional antennas, its paddle design focuses radio energy in a specific direction, providing better penetration through obstacles and a significant reduction in ambient noise. It is perfectly suited for Meshtastic-type projects, ThinkNode trackers, and industrial installations—both indoor and outdoor.

Key Features

• Precise 90° orientation thanks to its built-in hinge, allowing it to point directly at the signal source.
• Superior performance compared to standard whip antennas thanks to its directivity.
• Compact and rugged design, ideal for field deployment or mobile environments.
• Excellent immunity to interference thanks to its focused beam.
• Complete versatility with support for both major ISM frequency bands (868/915 MHz).

Technical Specifications

• Frequency range: 868 MHz / 915 MHz
• Gain: 3 dBi
• Voltage Standing Wave Ratio (VSWR): ≤ 2.0
• Input impedance: 50 ohms
• Internal cable type: RG178 coaxial
• Connector: Male SMA
• Material: High-durability ABS plastic
• Dimensions: 222 x 27 mm
• Net weight: 29 g
• Operating temperature: -48 °C to +85 °C

Compatibility

• LoRa modules and LoRaWAN gateways equipped with a female SMA connector.
• Elecrow ThinkNode M1, M3, and M5 devices.
• Meshtastic nodes (TTGO T-Beam, Heltec) via an adapter if necessary.
• Helium hotspots and IoT miners (check the SMA/RP-SMA connector type).

FAQ

Why choose the Elecrow LoRa antenna?

• Unbeatable value for a mobile directional antenna.
• Immediate range gain without requiring a cumbersome mast installation.
• Robust hinged design that prevents breakage during handling or transport.
• Universal compatibility with global LoRa RF standards.
