> Radio Antennas>VHF-UHF>Handheld Antenna>Walkie talkie antenna BNC VHF 137-174Mhz to cut Diamond HC-100B
Walkie talkie antenna 137-174Mhz to cut Diamond HC100 series View larger
Diamond Antenna

DIAMOND-HC100B-BNC-1477

New product

Japan

Walkie talkie antenna BNC VHF 137-174Mhz to cut Diamond HC-100B

rating No review at the moment

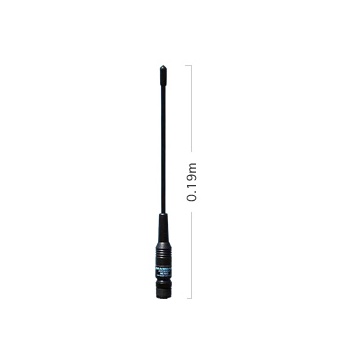

Antenna for VHF walkie talkie with BNC connector, the Diamond HC100B antenna , measures 19cm and can be set to a frequency ranging from 134 to 174MHz (adjustable by cutting the strand). The table of cuts according to the frequency to be tuned is included.

Transmission frequency: VHF 137 to 174 MHz (strand to cut)
Reception frequency: 120, 150, 300, 450, 800 and 900MHz (only in reception)
Type: 1/4 λ wave
Gain: 2.15 dBi
Length: 19cm
Max power : 10 W
Impedance: 50 ohms
ROS: Less than 1.5: 1
Connector: BNC Male
Weight: 45g

19,90 € tax excl.

In stock

   5 Items

Estimate shipping costs by clicking on "Add to cart", then enter only your country and zip code on the cart page.
