Icom IC-7300MK2 (new version) HF/50/70 MHz 100 W with HDMI & USB-C

View larger

Display all pictures

Manufacturer: ICOM France

Reference: ICOM-IC7300-MK2-3083

Condition: New product

Country of origin: Japan

Safety Information +

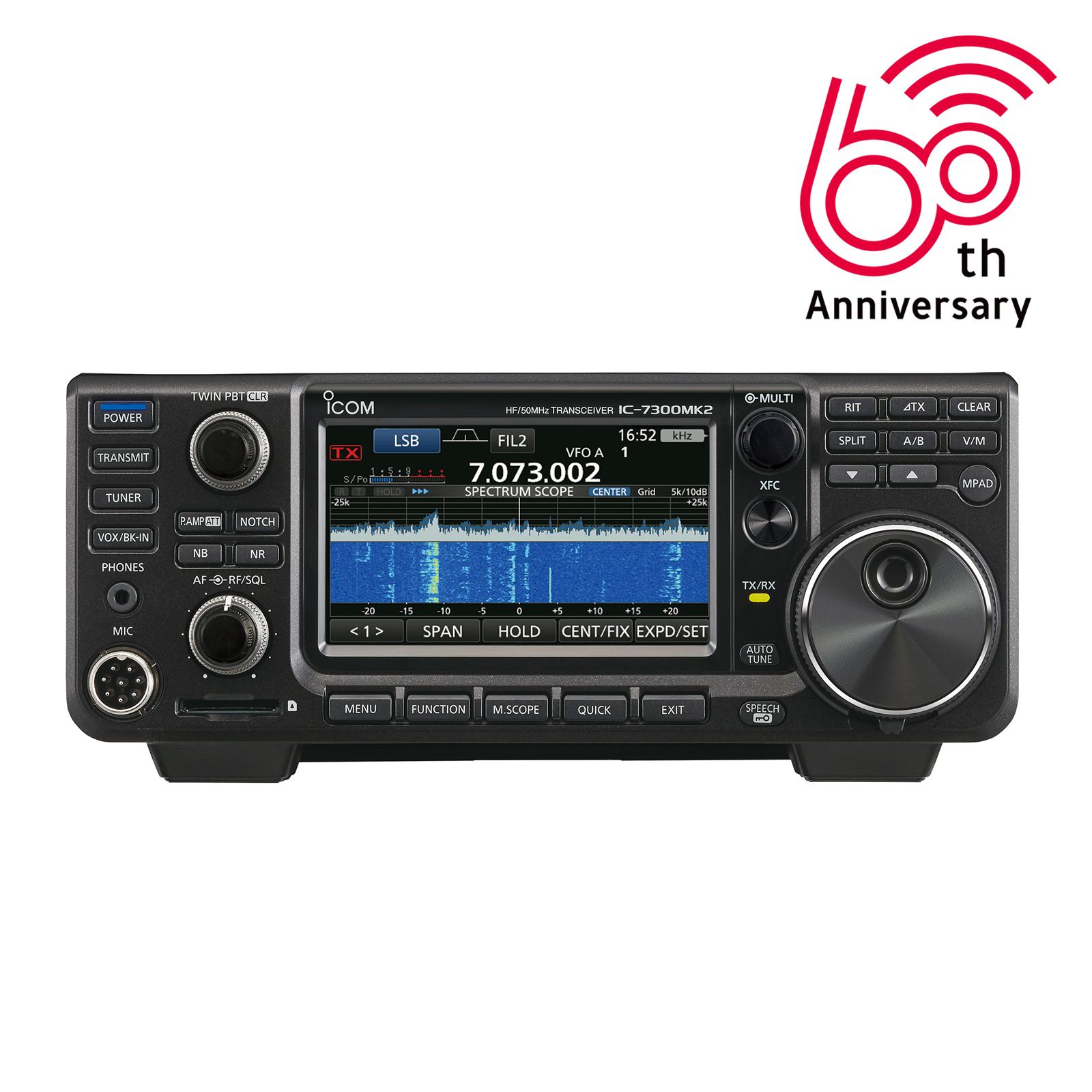

Icom IC-7300MK2 (new version) HF/50/70 MHz 100 W with HDMI & USB-C

No review at the moment

A compact 100W HF/50/(70) MHz SDR transceiver, the IC-7300MK2 builds on the success of the 7300 by adding HDMI for external display, USB-C (dual COM + audio), dedicated RX input/output, LAN for remote control and significantly improved RX/TX performance.

Improved performance: RMDR ~105 dB at 2 kHz, TX phase noise ~-139 dBc/Hz at 1 kHz → better resistance to adjacent signals and cleaner transmission
Reduced RX power consumption (~0.7 A) and less heating for extended listening/testing
HDMI™: scope/waterfall and menu display on large screen + audio output via HDMI
USB-C with dual virtual COM + audio ports: run FT8 and your log at the same time with a single cable
Dedicated RX antenna inputs/outputs (SMA): loop for RX filters/preamps or separate receive antenna
Integrated LAN + RS-BA1 v2: remote control without a server PC, remote power on/off
Integrated CW decoder: Morse decoding without a PC
Power: up to 100 W HF/50 MHz
European version: 70 MHz and 5 MHz band support

Supplied with : IC-7300 MK2, HM-219 handheld microphone, DC power cable, fuses.

Preliminary data sheet based on official Icom information (Tokyo Ham Fair 2025), adjustments are possible until commercial availability and CE approval.

Expected availability in France: End 2025. The price is not yet known.

More details

Data sheet

Transmitting power: 100 W (HF/50 MHz)
Performance: typical RMDR ≈ 105 dB (separation 2 kHz, 14.2 MHz, CW, IF BW 500 Hz)
Typical TX phase noise ≈ -139 dBc/Hz (offset 1 kHz)
RX standby current ~0.7 A (typical)
Display & ergonomics: real-time scope + waterfall, HDMI™ output to external monitor (image + audio)

PC & remote connectivity

USB-C with dual virtual COM + audio (simultaneous CAT + digital audio).
Integrated LAN (Ethernet) for RS-BA1 v2 without server PC, remote ON/OFF.
CW: integrated Morse decoder with automatic filter and speed tracking.

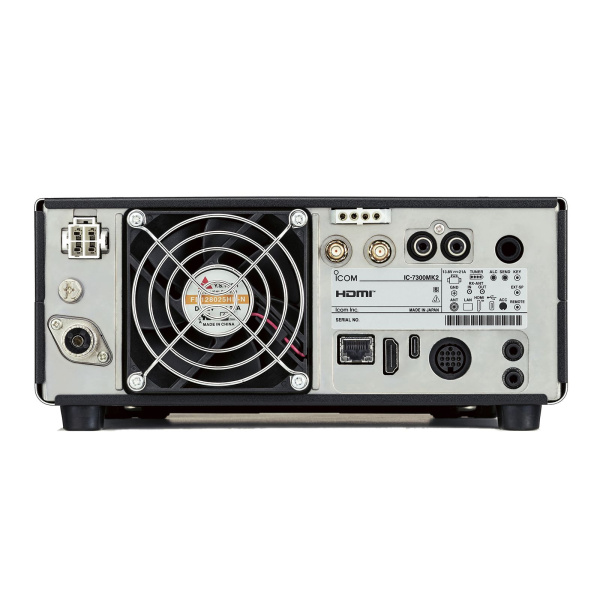

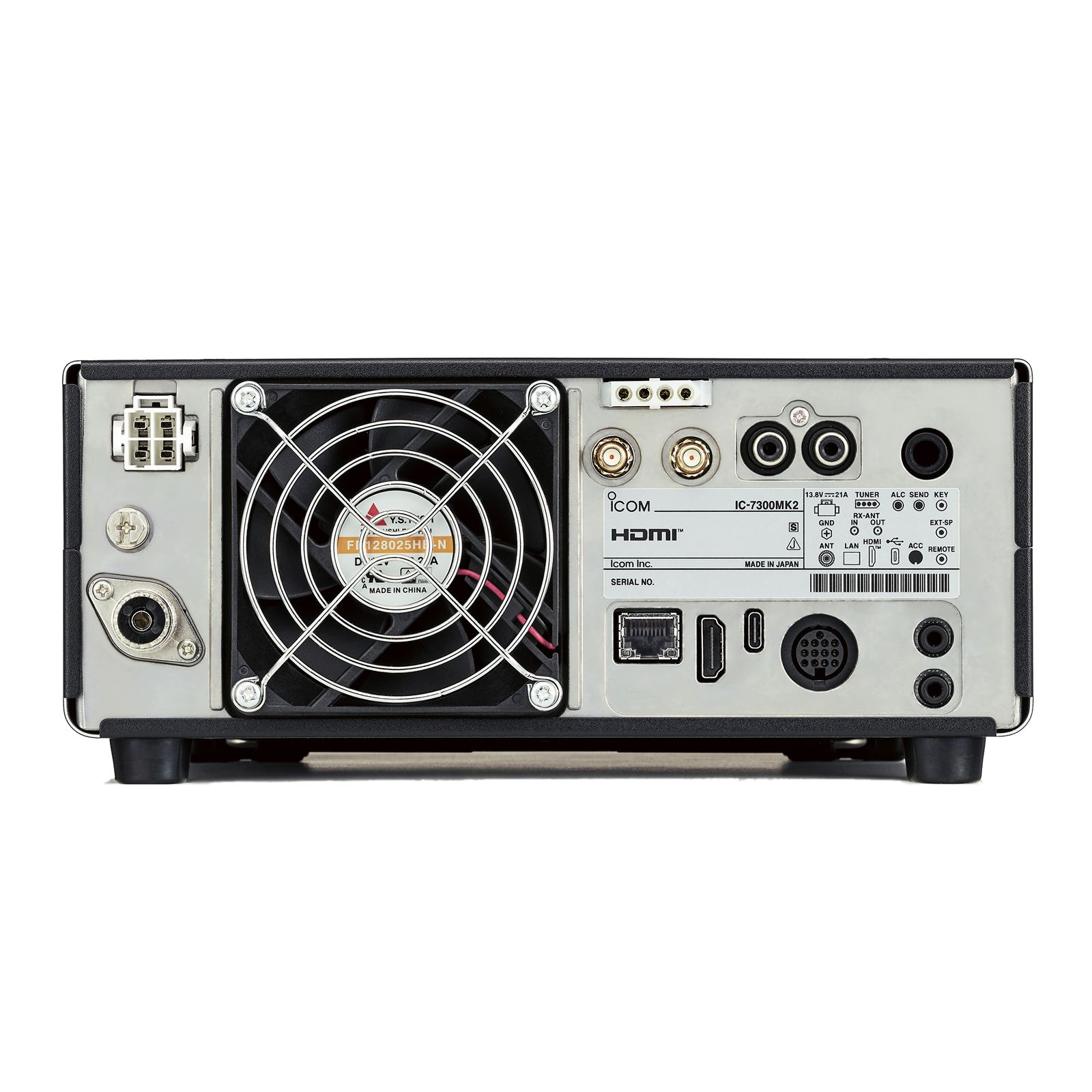

I/O & ports (rear) :

TX/RX antenna connector (50 Ω) SO-239
RX ANT IN/OUT (SMA)
HDMI
USB-C
LAN
ACC 13-pin
KEY,
ALC/SEND
Ext. speaker socket
Tuner socket
