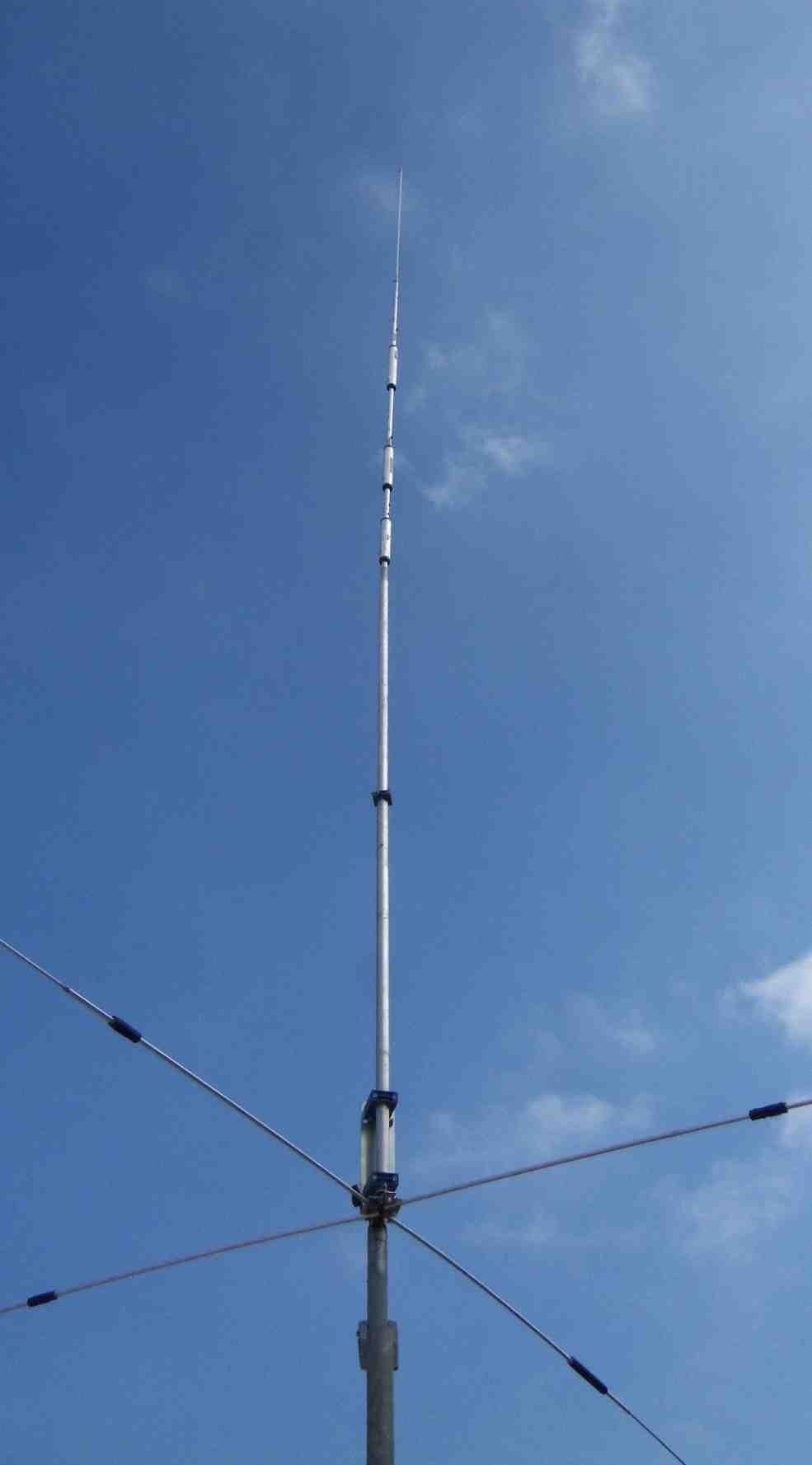

PST-152VC Multi-band vertical antenna View larger

PRO.SIS.TEL

PST-152VC-2500

New product

Italy

PST-152VC vertical multiband antenna for 10, 15 and 20m ProSisTel

rating No review at the moment

Specifications

  • 10-15-20m multi-band vertical antenna with loaded rigid radials.
  • Maximum length of rigid radials = 2m
  • Bandwidth
  • 20m = approx. 250Kc/s
  • 15m = total coverage
  • 10m = approx. 800Kc/s

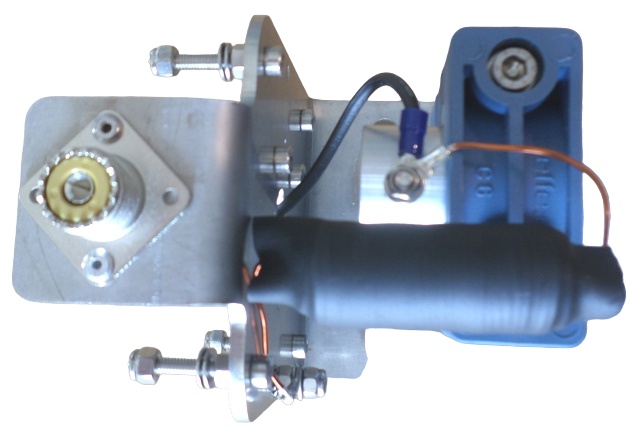

  • RF shock for electrostatic protection
  • 2KW pep
  • SO239
  • Height: approx. 4m
  • Maximum loaded radial length = 2m
  • Weight = 4Kg
  • Wind surface area = 0.09m2
  • Maximum wind speed = 130km/h
  • Accepts a 40-50mm mast (60mm on request)

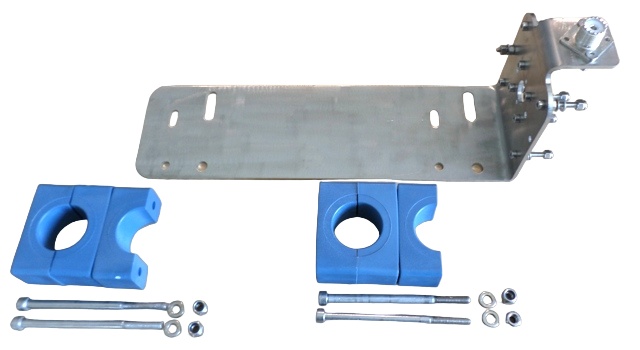

  • Aluminium 6060T6, stainless steel bracket and hardware.

211,07 € tax excl.

Available in backorder within 1-2 months
