> Radio Antennas>HF 0-30 Mhz>Mobile Antenna HF 14Mhz (20m) Diamond HF20FX
Mobile Antenna HF 14Mhz (20m) Diamond HF20FX Diamond Antenna HF 0-30 Mhz DIAMOND-HF20FX-607 View larger
Diamond Antenna

DIAMOND-HF20FX-607

New product

Japan

Safety Information +

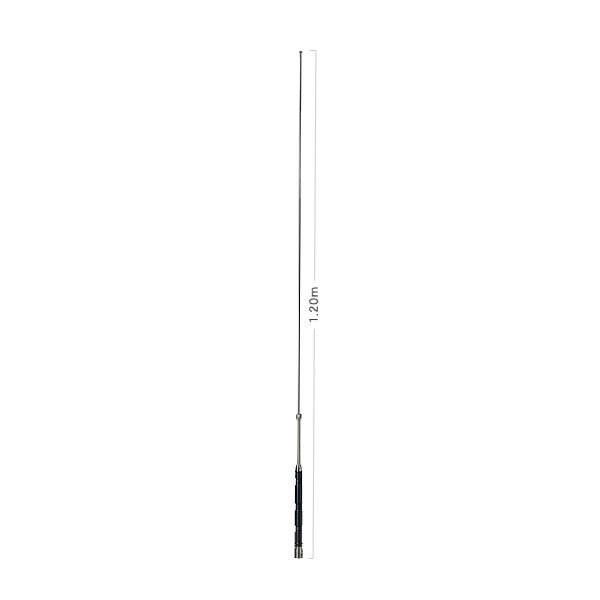

Mobile Antenna HF 14Mhz (20m) Diamond HF20FX

rating Read the 4 reviews
Average rating: 5/5 Number of reviews: 4

Antenna 100% genuine: Diamond HF20FX for mobile and 14Mhz amateur radio single-band (20m) with adjustable whip for the SWR.

Antenna type: Whip 1 / 4λ (quarter wave)
Frequency band: 14Mhz (20 meters)
Maximum power: 220 Watts SSB
Impedance: 50 ohms
SWR: Less than 1.5: 1
Length of the antenna: 1,2m
Weight: 210g
Connector: PL-259 (UHF Male)

Country of origin: Japan

64,90 € tax excl.

Out of stock, available in 2 to 3 months

Estimate shipping costs by clicking on "Add to cart", then enter only your country and zip code on the cart page.

Download

Manual HF-20FX Diamond (EN)

User manual and datasheet in english Diamond Antenna HF-20FX 684.42k

  • Customers also bought

    • Magnetic base 150mm with coaxial cable RG58 and PL-259 Komunica BK-1500
      25,90 €

      Reference: KOM-EMBASE-BK-1500-539

      Magnetic base 150mm with coaxial cable RG58 and PL-259 Komunica BK-1500

      This 15cm diameter magnetic base ensures a solid fixation and allows to screw a PL-259 antenna (UHF-male) on a car roof or a metal surface of minimum 1m².The magnetic base allows to support antennas

      25,90 €
    • Mobile Antenna HF 28Mhz (10m) Diamond HF10FX Diamond Antenna HF 0-30 Mhz DIAMOND-HF10FX-606
      67,00 €

      Reference: DIAMOND-HF10FX-606

      Mobile Antenna HF 28Mhz (10m) Diamond HF10FX

      Antenna 100% genuine: Diamond HF10FX for mobile and 28Mhz amateur radio single-band (10m) with adjustable whip for the SWR. Antenna type: Whip 1 / 4λ (quarter wave)Frequency band: 28Mhz (10

      67,00 €
    • Mobile Antenna HF 7Mhz (40m) Diamond HF40FXW Diamond Antenna HF 0-30 Mhz DIAMOND-HF40FXW-608
      69,90 € 74,23 € tax excl. In stock

      -4,33 €

      Reference: DIAMOND-HF40FXW-608

      Mobile Antenna HF 7Mhz (40m) Diamond HF40FXW

      Antenna 100% genuine: Diamond HF40FXW for mobile and 7Mhz amateur radio single-band (40m) with adjustable whip for the SWR. Antenna type: Whip 1/4λ (quarter wave)Frequency band: 7Mhz (40

      69,90 €

      74,23 €

      Reduced price!
    • Mobile Antenna HF 3.5Mhz (80m) Diamond HF80FX Diamond Antenna HF 0-30 Mhz DIAMOND-HF80FX-610
      76,00 €

      Reference: DIAMOND-HF80FX-610

      Mobile Antenna HF 3.5Mhz (80m) Diamond HF80FX

      Antenna 100% genuine: Diamond HF80FX for mobile and 3.5Mhz amateur radio single-band (80m) with adjustable whip for the SWR. Antenna type: Whip 1 / 4λ (quarter wave)Frequency band: 3.5Mhz (80

      76,00 €

  • We also recommend

    • Roofrail mount bracket 3-axis adjustable K-512 Diamond Diamond Antenna Mounting bracket DIAMOND-K512-132
      41,90 €

      Reference: DIAMOND-K512-132

      Roofrail mount bracket 3-axis adjustable K-512 Diamond

      K-512 Diamond Roofrail Mounting Bracket 3-axis adjustable. Mast diameter accepted: 15-34mmRooftop railing Height accepted: Less than 32mm Width accepted: I 50mmSquare mast side length accepted:

      41,90 €
    • Nagoya Trunk lid / Hatchback Mount Nagoya Antenna Mounting bracket NAGOYA-RB400-138
      13,52 € 16,90 € tax excl. -20%tax excl. In stock

      -20%

      Reference: NAGOYA-RB400-138

      Nagoya RB-400 trunk lid universal antenna mount 4-door car

      Nagoya RB-400 antenna support for mounting a mobile antenna, to mount on trunk lid, 4-door car. 2 angle adjustable.Delivered: Nagoya support RB-100 genuine, without cable (optional below). Coaxial

      13,52 €

      16,90 €

      Reduced price!
    • Balcony railing bracket for antenna Diamond BK11 Diamond Antenna Mounting bracket DIAMOND-BK11-266
      28,50 €

      Reference: DIAMOND-BK11-266

      Balcony railing bracket for antenna Diamond BK11

      The BK11 (former BK10) is a mounting bracket to put for example a mobile antenna on a balcony. This support agree to the antenna sockets standard PL (UHF male) or plug N and can be mounted directly on

      28,50 €
    • Ampro-20 : Mobile antenna 14MHz 20 meters Moonraker
      29,90 €

      Reference: MOON-12-062-AMPRO20-2151

      Ampro-20 : Mobile antenna 14MHz 20 meters Moonraker

      Type : Helical mobile antenna Frequency: 14MHz Length : 245cm VSWR: 1.5:1 or better Power : 250 Watts Connection: 3/8thread Bandwidth: 150 KHz

      29,90 €

Reviews

Click here to leave a review

rating 5
Perfect
It didn\'t come in the protective foil as these antennas usually come, so the fixing thread dropped from it during transport (it luckily wasn\'t lost), but it looks new and works OK. The price was also very good (in comparison with other sellers). Regarding the performance, of course it\'s compromise antenna, but the performance is great as expected from this type of short vertical. With this antenna on the balcony and 100W, the whole world isn\'t a problem :) On my balcony it even doesn\'t need a counterpoise (radials), but I think a counterpoise could improve the situation, because my coax feeder seems to detune the antenna a bit if I touch it and I have also low RF currents on the ground wire, so additional grounding wouldn\'t hurt, even it isn\'t necessary. The antenna has bandwidth cca. 50 - 100 kHz, and in my setup it can be tuned from cca. 14.000 Mhz to 14.500 MHz with SWR bellow 2.0, from cca. 14.100 Mhz with SWR bellow 1.5. Counterpoise will probably also improve it.
rating 5
HF20FX
Non essayée
rating 5
Très bien
Antenne légère et efficace.
Très bonne fabrication.
rating 5
Super antenna
I use it mobile (stand still ) on a 10cm magnetic base. Easy to tune. Bandwidth .+- 200Khz
