ATS Mini V3S SI4732 0.1-30 MHz HF receiver with Donut WB antenna

rating No review at the moment

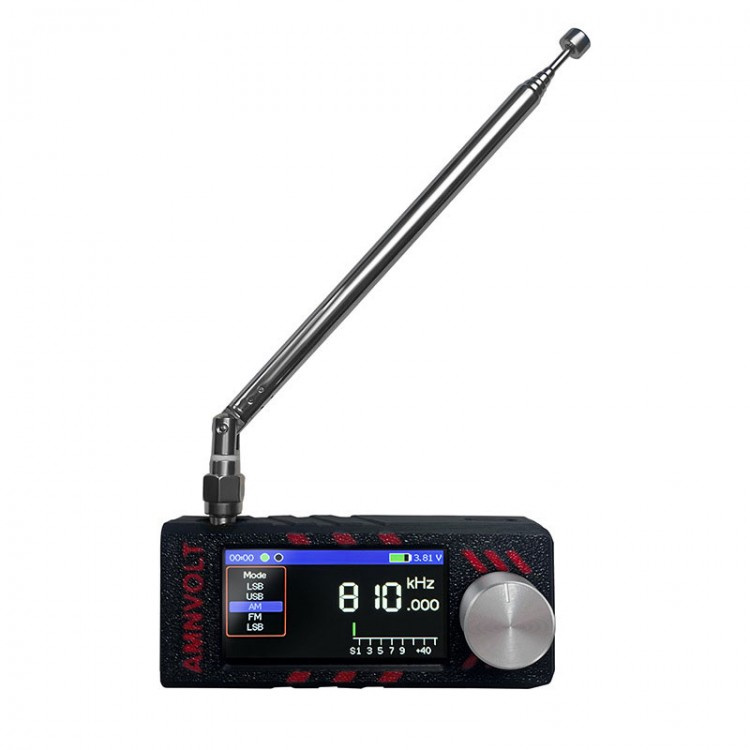

The upgraded ATS Mini V3S is a pocket-sized receiver covering 0.1 to 30MHz, based on the compact, high-performance SI4732 DSP, featuring a 1.9" IPS display, built-in speaker, 800mAh battery and supplied with a Donut Wideband antenna and telescopic antenna.

Thanks to the ESP32-S3 processor and SI4732 DSP, it supports the LW/MW/SW/FM bands as well as AM, FM, USB and LSB modes, with AGC, ATT and an internal Hi-Z circuit to improve reception of weak signals.

Its ergonomics are based on a unique rotary encoder for simple, intuitive operation.

  • ESP32-S3 + SI4732 DSP chipset covering all broadcast bands
  • Modes supported: AM, FM, LSB, USB
  • 1.9" high-definition IPS display with brightness control
  • Integrated 800mAh battery status indicator and USB-C power supply
  • 1W internal speaker for clear, powerful sound
  • Internal Hi-Z for improved sensitivity to weak signals
  • Built-in headphone amplifier for accurate listening
  • Full control via rotary encoder (press/rotate)
  • Compatible with firmware updates

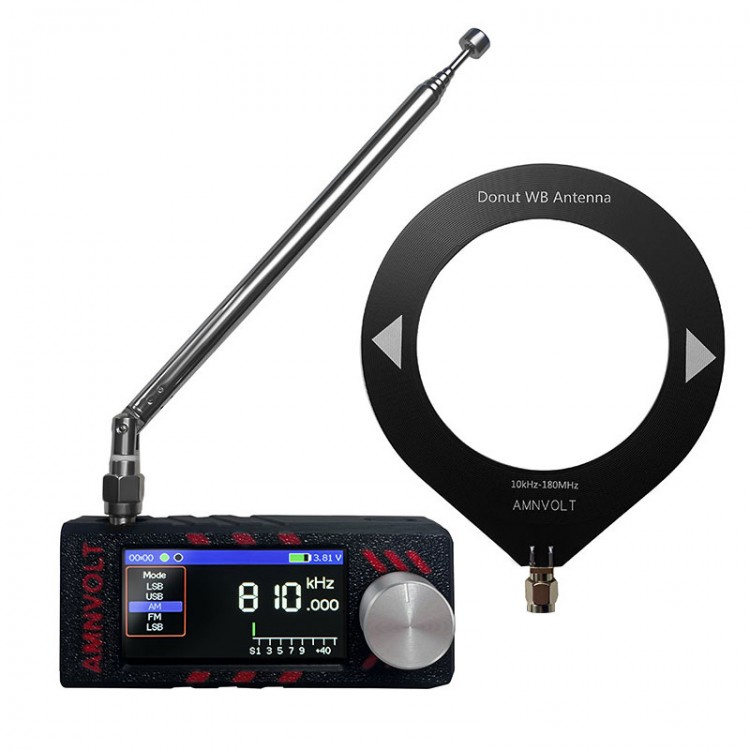

Supplied with : ATS Mini V3S receiver, 1x Donut WB wideband antenna, 1x telescopic antenna.

More details

55,48 € tax excl.

In stock

   More than 10 Items

Estimate shipping costs by clicking on "Add to cart", then enter only your country and zip code on the cart page.

Data sheet

Processor: ESP32-S3
DSP: Silicon Labs SI4732

Bands supported:

FM
MW / AM
LW
SW (shortwave)

Modes: AM, FM, USB, LSB

Advanced features :

  • AGC (Automatic Gain Control)
  • ATT (Attenuator)
  • Hi-Z circuit for improved resolution of weak signals
  • Display: 1.9" colour IPS, adjustable brightness
  • Indicator: battery level display
  • Internal speaker: 1 W, optimised sound cavity
  • Integrated headphone amplifier: clear, powerful sound
  • Ergonomics: unique rotary encoder (click + turn)
  • Firmware: update support
  • Power supply: 800mAh battery and USB-C

Antennas included :

- Wideband WB Donut antenna
- Telescopic antenna

Typical use of the ATS Mini V3S receiver: SWL listening, DXing, audio decoding, reception of broadcast tapes and HF ham radio.
