Antenne Nebra 860-930MHz N Male 8dBi Hélium HNT LoRaWan

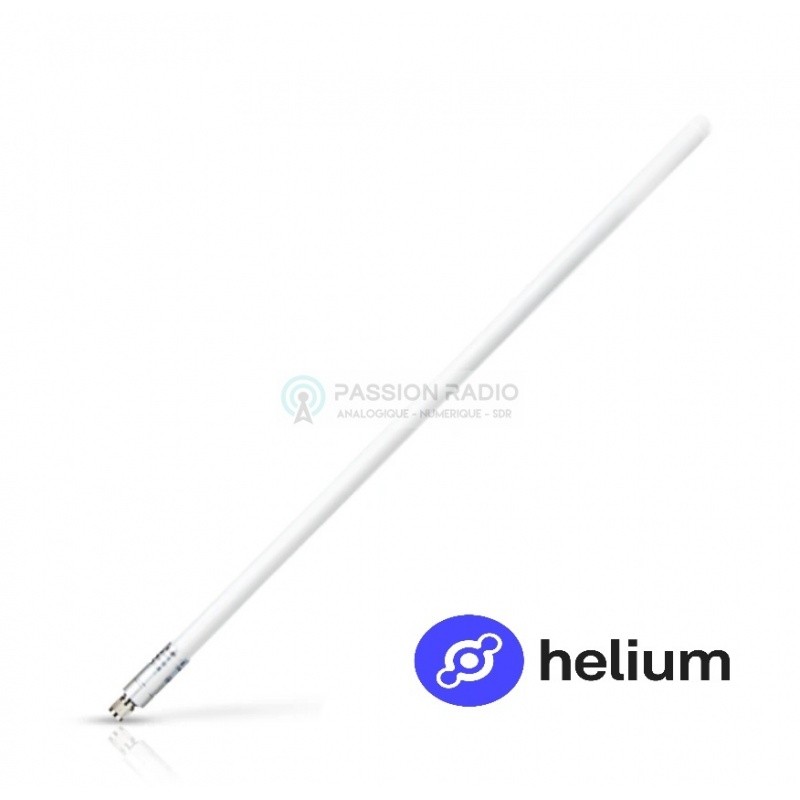

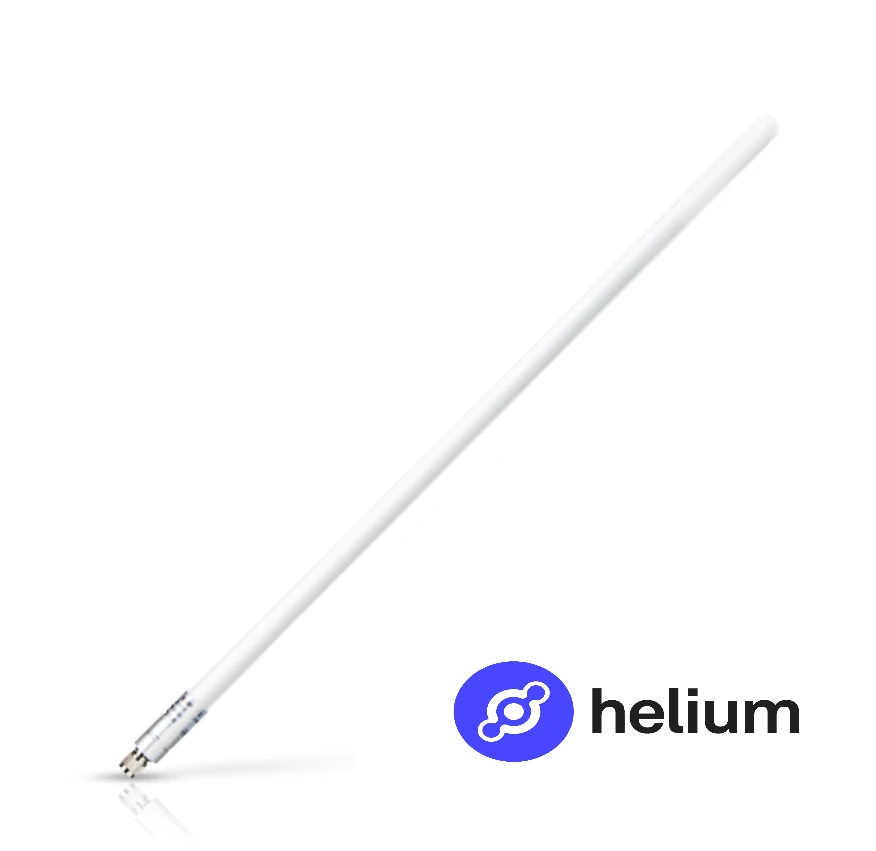

Omnidirectional vertical antenna for outdoor use from 860 MHZ to 930 MHz, compatible for transmitting and receiving on the 868 MHz ISM band (e.g. LoRa, LoRawan, Helium hotspot, Sigfox), with 8dBi gain, length of 110cm and with N Male connector.

Installation on a 35-70mm diameter mast with bracket included.

Antenna color: Grey or white depending on availability.

Supplied with: 1 fixed Nebra wide band ISM 8dBbi antenna, with mounting bracket.

Other recommended model for helium hotspot: Tuned HNT antenna 868 MHz 4.4dBi

More details

Data sheet

Compatible frequency: ISM 868 MHz and 915MHz band
Antenna type: Dipole
Bandwidth: 860-930MHz
UV resistant fiberglass radome
Color: Grey or white depending on availability
Connector: N male (order a cable or adapter with N female to be compatible with)
Type of installation: 35-70 mm diameter mast with bracket supplied
Gain : 8 dBi (5.85dB)
Length : 110cm
Operating temperature : -40°C to +60°C
SWR: ≤1.5
Polarization Type: Vertical
Maximum power: 20W
Impedance: 50 Ohms
Compatible: LoRawan (Lora), Sigfox, Zigbee and Helium HNT hotspot networks (Sensecap M1, Nebra, RAK miner, Boobcat, etc.)
2 years warranty
