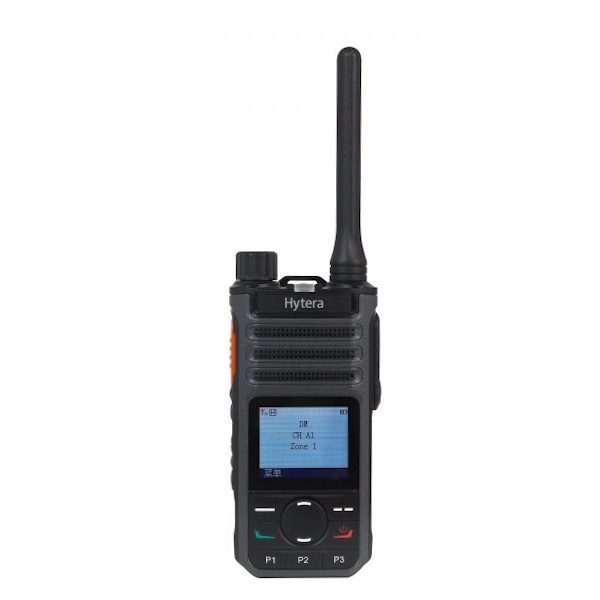

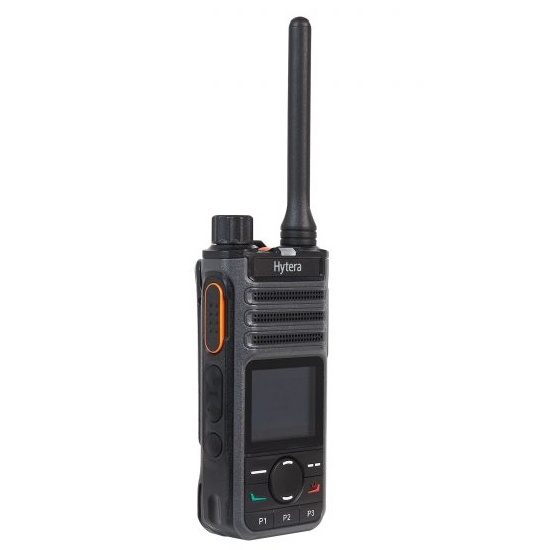

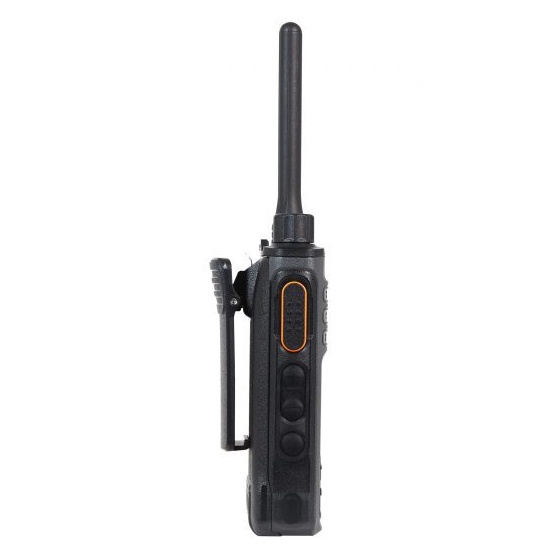

Hytera BP565 VHF DMR & FM 136-174 MHz 5W IP54 with display and keypad

No review at the moment

The Hytera BP565 walkie-talkie is a portable digital DMR and analogue FM radio, operating on the 136 to 174 MHz VHF band, with a maximum power of 5W, for easy use, with keypad and display, 128 channels.

DMR Tier II compatible and protected against dust and liquid ingress (IP54).

Supplied complete with: 1x Hytera BP565V, 1x VHF antenna, 1x 1500mAh Li-ion battery, 1x 220v mains adapter, 1x belt clip and 1x carrying strap, 1x user manual.

More details

Download

Brochure BP515 & BP565

4.3M

Drivers Hytera DMR

2.94M

CPS Firmware Hytera BP serie

Data sheet

Analogue and digital VHF walkie-talkies
RX and TX frequencies: 136 to 174 MHz
Power: 5W and 1W
DMR Tier II compatible
Detachable antenna
128 channels
8 zones
16 channels per zone
Battery: Li-ion 1500mAh
Autonomy: 12h analogue and 16h digital
Squelch, CTCSS, DCS for analogue channels
Protected against water and dust (IP54 standard)
MIL-STD-810 C/D/E/F/G standard)
With LED display
Size: 115 x 54.5 x 29.5 mm
Weight: 210g
Operating temperature: -20°C to +60°C
CE RED standards
2-year warranty
