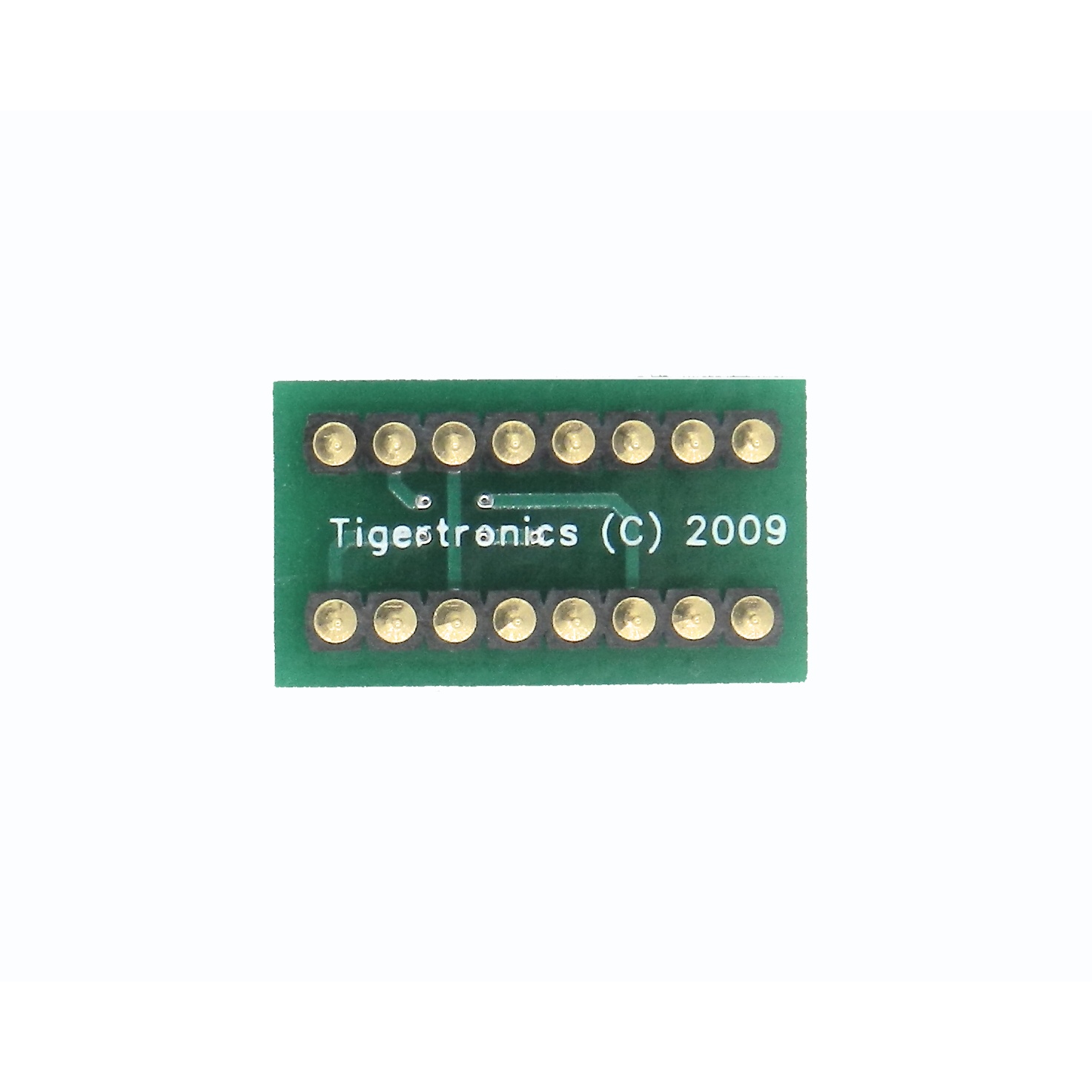

Jumper Signalink SLMOD-8PD for Icom Mini DIN Data 8-pin

The Signalink SLMOD8PD Jumper module is compatible for use with the Signalink USB sound card and with virtually all ICOM radios which have an 8-pin mini-DIN data port (DATA socket).

This module is intended for ICOM radios only. It cannot be used with other brands of radio (Ten-Tec, etc.) even if they use the same type of connector.

The radio cable compatible with this jumper module has the reference: SLUSB8PD .

In case of doubt, you can check using the guide to download in PDF below, the correct reference of radio cable and jumper module (jumper) for your set.

Supplied with: 1 Signalink SLMOD-8PD Jumper module.

More details

Download

Signalink cable jumper guide FR

Guide in French to choose the right radio cable and jumper according to the brand and model of the radio used. 177.6k

Signalink cable jumper guide EN

Guide in English to choose the right radio cable and jumper according to the brand and model of the radio used. 666.13k

Data sheet

ICOM
IC-275A
IC-575A / H
IC-707
IC-725, IC-726
IC-728, IC-729
IC-735, IC-736, IC-737, IC-738
IC-7400
IC-746 **
IC-746PRO **
IC-756 / 756PRO
IC-756PROII, IC-756PROIII
IC-761, IC-765
IC-775, IC-775DSP
IC-781
IC-7600, IC-7700, IC-7800
IC-820H, IC-821H
IC-910H
IC-970
IC-M600
IC-M700PRO
IC-M710
IC-M802

** This socket only supports HF operation. If you want to operate both HF and VHF, then you will need to use the 6-pin mini-DIN data port instead (IC-746PRO model only).
