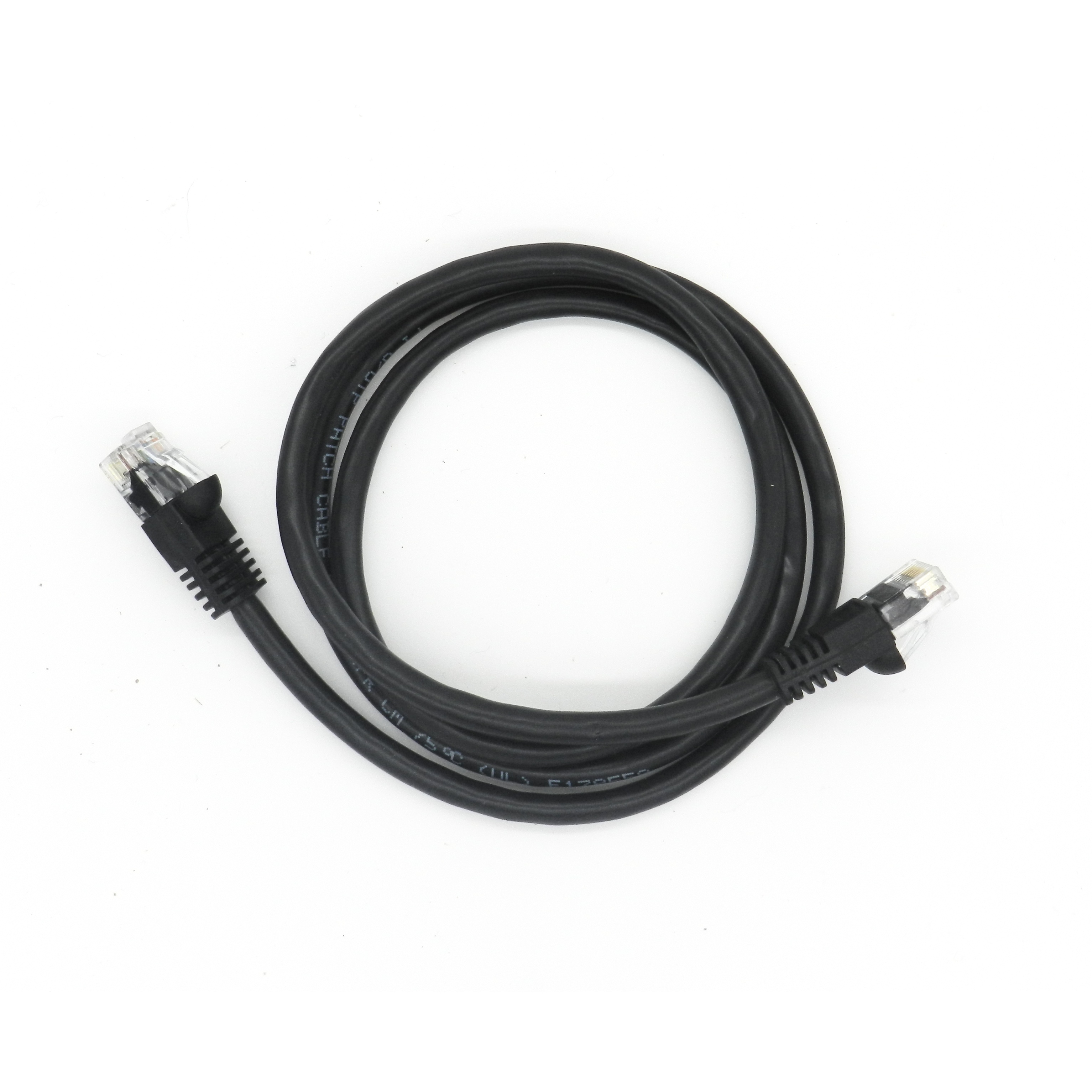

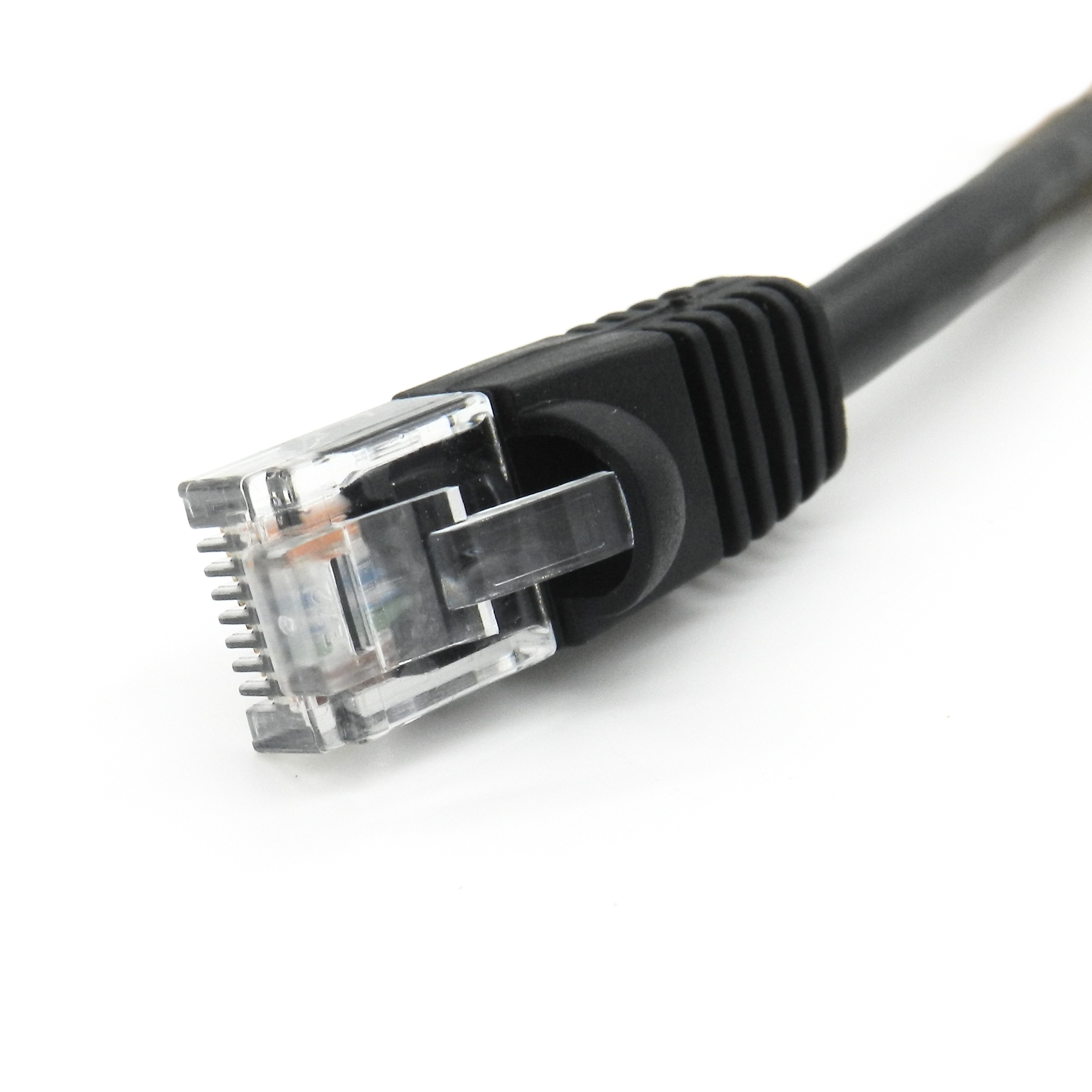

Signalink SLCAB-RJ4 radio cable micro RJ45 socket for Alinco Icom Kenwood Yaesu Anytone
Read the 3 reviewsThe Signalink SLCABRJ4 radio interface cable can be used with the Signalink USB sound card and with practically all Alinco , ICOM, Kenwood, Yaesu radios and Anytone AT-578UV (V1 et V2). This radio cable is compatible with virtually all radios that have an 8-pin RJ-45 type microphone plug . This includes, but is not limited to, the radios listed below.
The jumper modules compatible with this cable bear the reference: SLMODR4I, SLMODR4K , SLMODR4Y .
If in doubt, check the guide below by searching the PDF download document to find the correct cable and jumper module reference for your radio.
Supplied with: 1 Signalink SLCAB-RJ4 radio cable.
Download
Guide in French to choose the right radio cable and jumper according to the brand and model of the radio used. 227.6k
Guide in English to choose the right radio cable and jumper according to the brand and model of the radio used. 495.03k
Data sheet
Alinco (SLMODR4I)
| DR-605E |
| DR-605T |
| DR-735E |
| TK-2100 |
Icom (SLMODR4I)
| IC-207H |
| IC-208H |
| IC-281A |
| IC-281E |
| IC-281H |
| IC-704 |
| IC-706 |
| IC-706MKII |
| IC-706MKIIG |
| IC-2000 |
| IC-2100H |
| IC-2200H |
| IC-2300H |
| IC-2700 |
| IC-2720H |
| IC-2730A |
| IC-2730E |
| IC-2800 |
| IC-2820 |
| IC-7000 |
| IC-7100 |
| IC-F121 |
| IC-V8000 |
| ID-800H |
| ID-880 |
| ID-4100A |
| ID-4100E |
| ID-5100A |
| ID-5100E |
Kenwood (SLMODR4K)
| TK-90 |
| TK-863G |
| TK-7102H |
| TK-7108HM |
| TK-7108M |
| TK-7160E |
| TK-7160HM |
| TK-7160M |
| TK-7162E |
| TK-7180E |
| TK-7189E |
| TK-8108HM |
| TK-8108M |
| TK-8160E |
| TK-8160M |
| TK-8162E |
| TK-8180E |
| TK-8189 |
| TM-251 |
| TM-255 |
| TM-261 |
| TM-271 ** |
| TM-271A ** |
| TM-281 |
| TM-451 |
| TM-455 |
| TM-461 |
| TM-481A |
| TM-641 |
| TM-642 |
| TM-732 |
| TM-733A |
| TM-741 |
| TM-742 |
| TM-941 |
| TM-942 |
| TM-D700 |
| TM-D700A |
| TM-D710 |
| TM-D710A |
| TM-D710E |
| TM-D710G |
| TM-D710GA |
| TM-G707 |
| TM-V7A |
| TM-V71A |
| TM-V71E |
| TM-V708 |
| TS-480HX |
| TS-480SAT |
Yaesu (SLMODR4Y)
| FT-450 |
| FT-600 |
| FT-817 |
| FT-817ND |
| FT-858 |
| FT-857D |
| FT-898 |
| FT-897D |
| FT-900 |
| FT-992 |
| FT-991A |
Anytone
AT-578UV V1 and V2
SignaLink jumper settings for the AT578 :
G - 8
PTT - 1 (via a resistor from 1.5Kohm to 2.2Kohm, see PTT** note below
MIC - 6
SPK - Do not install this jumper wire, see SPK*** note below
PTT**: A 1.5Kohm to 2.2Kohm resistor is required instead of the normal jumper wire, otherwise you may damage the radio. Use only a 1/4 watt resistor, as it has the correct size wires to connect to the SignaLink jumper, a larger resistor will damage the plug. Also as noted on http://members.optuszoo.com.au/jason.reilly1/578mods.htm#Microphone, the radio must have VOX detection enabled or the PTT will not work.
SPK***: The microphone jack on this radio uses differential audio which cannot be used with Signalink, otherwise you will damage the radio's audio amplifier. Instead, attach the supplied audio cable between the SignaLink's SPKR jack and one of the radio's external speaker jacks.
