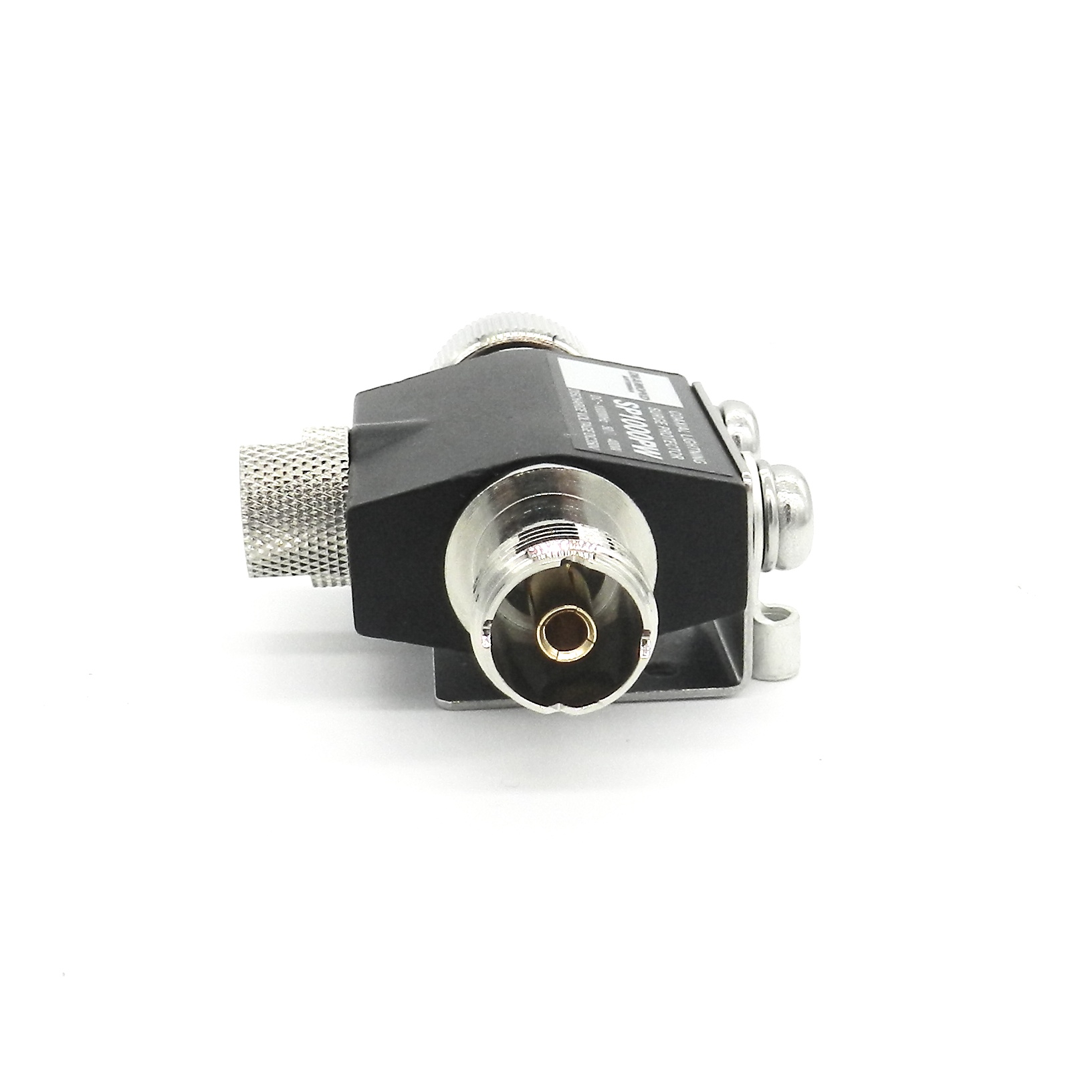

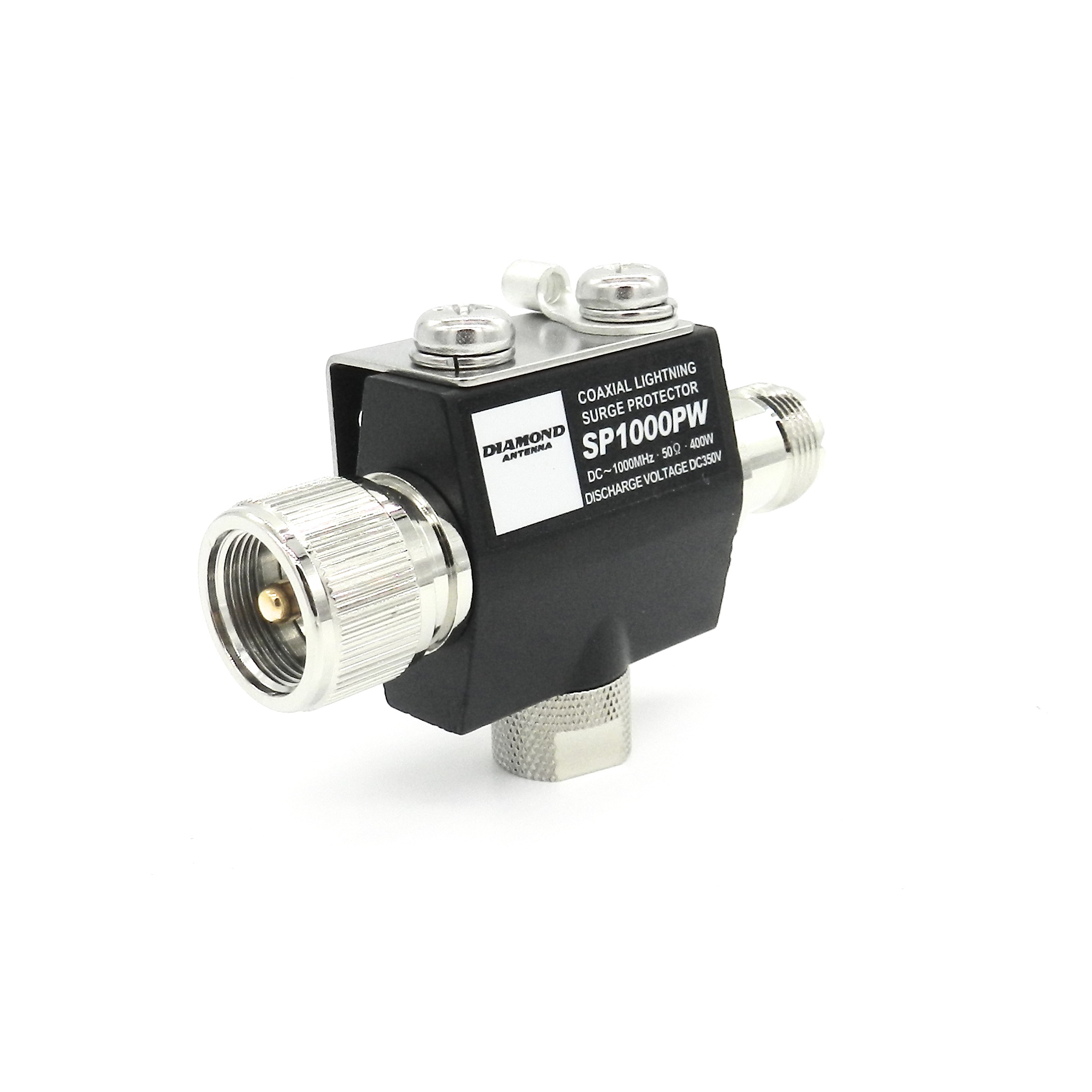

Diamond SP1000PW PL Connect / Socket 400W 0-1000MHz surge protector View larger

Diamond Antenna

DIAMOND-SP1000PW-FOUDRE-1539

New product

Japan

Diamond SP1000PW PL-259 / SO-239 surge protector (UHF Male - Female) 400W 1GHz

rating No review at the moment

The Diamond SP1000PW surge arrester works for frequencies from 0 to 1000 MHz and for a maximum transmission power of 400W, it is equipped with a PL-259 / SO-239 connector (UHF Male - Female) and offers a low insertion loss of -0.3 dB.

This equipment provides protection for the radio equipment in the event of a nearby lightning strike , but not in the event of a direct lightning strike on the antenna, in this case it is necessary to install a lightning rod, above the level of the lightning. 'antenna.

The SP-1000PW must be grounded , by the shortest route, for safe operation. A stainless screw (M4) is available to connect a cable to earth.

It is recommended to place a surge arrester both at the level of the antenna, as well as at the level of the entry of the coaxial cable in the building.

The SP3000-P is not waterproof and must be protected for outdoor use.

More details

26,90 € tax excl.

Out of stock, available in 2 to 3 months

Estimate directly shipping costs by clicking on "Add to cart", then enter your country and zip code on the cart page.

Data sheet

  • Frequency range: 0 - 1000 MHz
  • Impedance: 50 Ω
  • Maximum power: 400 W
  • Breakdown voltage: 800 Volts
  • Maximum discharge current: 6000A
  • Waterproof: No
  • Insertion loss: <0.3 dB
  • Connector 1: PL-259 (UHF Male)
  • Connector 2: SO-239 (UHF Female)
  • Dimensions: 78 x 55 x 26 mm
  • Weight: 110g

Recommendation for the use of the lightning arrester

  1. Do not share the earth line with other earth lines such as power lines. It is recommended to separate the earth line of the surge arrester from those of other systems
  2. Although the hardware is designed to protect radio equipment from high surges caused by lightning or static electricity, it cannot protect the equipment from high current and voltage caused by direct thunder clap on the antenna. . To protect the equipment from direct lightning strike, install a suitable lightning conductor separately
  3. To achieve maximum safety, the equipment uses an integrated pressurized gas tube surge arrester element to discharge and ground the electric current when it exceeds the predetermined discharge voltage.
