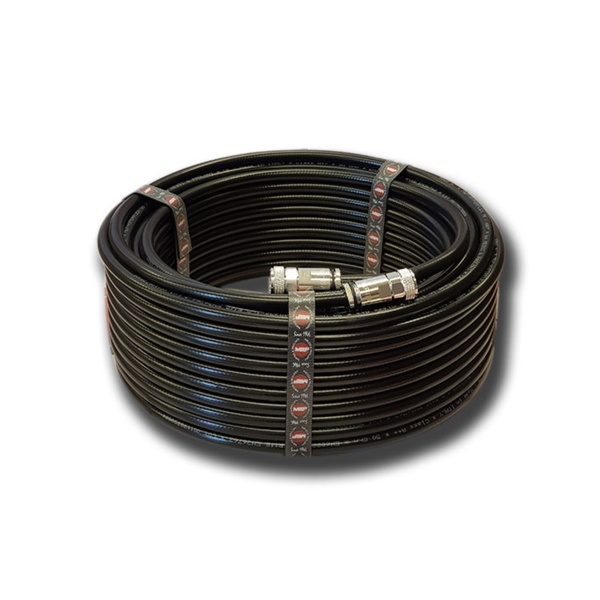

M&P 10.3mm coaxial cable with UHF-Male connector (PL-259) HYPERFLEX 10 View larger

Messi & Paoloni

New product

Italy

Extension coaxial M&P 10.3mm HYPERFLEX 10 cable with UHF-Male (PL-259)

rating Read the 11 reviews
Average rating: 5/5 Number of reviews: 11

This coaxial cable extension is ready to use, with UHF Male connector (PL-259) Messi & Paoloni, with a diameter of 10.3mm with M&P HYPERFLEX 10 cable, flexible and offering excellent performance with lower attenuation compared to RG213 cable.

PL-259 connectors are designed to provide perfect protection against water infiltration, humidity and condensation.

Available in different sizes: 5m, 10m, 15m, 20m and 30m (to choose below).

Weight in 5m: 0.560 Kg
Weight in 10m: 1,120 Kg
Weight in 15m: 1,680 Kg
Weight in 20m: 2,240 Kg
Weight in 30m: 3.360 Kg

Cable manufactured and tested by M&P, class A++, usable from -40°C to + 60°C, CE and RoHS standards.

Packaging changes depending on cable's diameter and meters quantity. Images are for demonstration purpose only.

Supplied with velcro fasteners.

More details

41,58 € tax excl.

In stock

   More than 10 Items

  • 5m
  • 10m
  • 15m
  • 20m
  • 30m

Download

Data sheet

Connector 1: Male (PL-259)
Connector 2: UHF-Male (PL-259)
Impedance at 200Mhz: 50 Ohm
Minimum bending radius: 40 mm
Operating temperature: -40°C to + 60°C
Capacitance: 78 pF / m ± 2
Velocity: 87%
Class: A++
Internal conductor resistance: 3.6 Ohm / Km
Resistance of outer conductor: 12 Ohm / Km
Voltage test (spark test): 8 kV
Maximum peak power: 13000 W
CE and Rohs standards.

Net weight over 100m: 11.2 Kg

Attenuation at 20°C in dB/100m

1.8 MHz 0.8dB
3.5 MHz 1.0dB
7 MHz 1.1dB
10 MHz 1.3dB
14 MHz 1.5dB
21 MHz 1.8dB
28 MHz 2.0dB
50 MHz 2.7dB
100 MHz 3.9dB
144 MHz 4.7dB
200 MHz 5.6dB
400 MHz 8.3dB
430 MHz 8.6dB
800 MHz 11.9dB
1000 MHz 13.4dB
1296 MHz 15.4dB
2400 MHz 21.8dB
3000 MHz 24.6dB
4000 MHz 29.1dB
5000 MHz 33.1dB
6000 MHz 36.9dB
7000 MHz 40.7dB
8000 MHz 44.2dB
9000 MHz 47.5dB
10,000 MHz 50.7dB

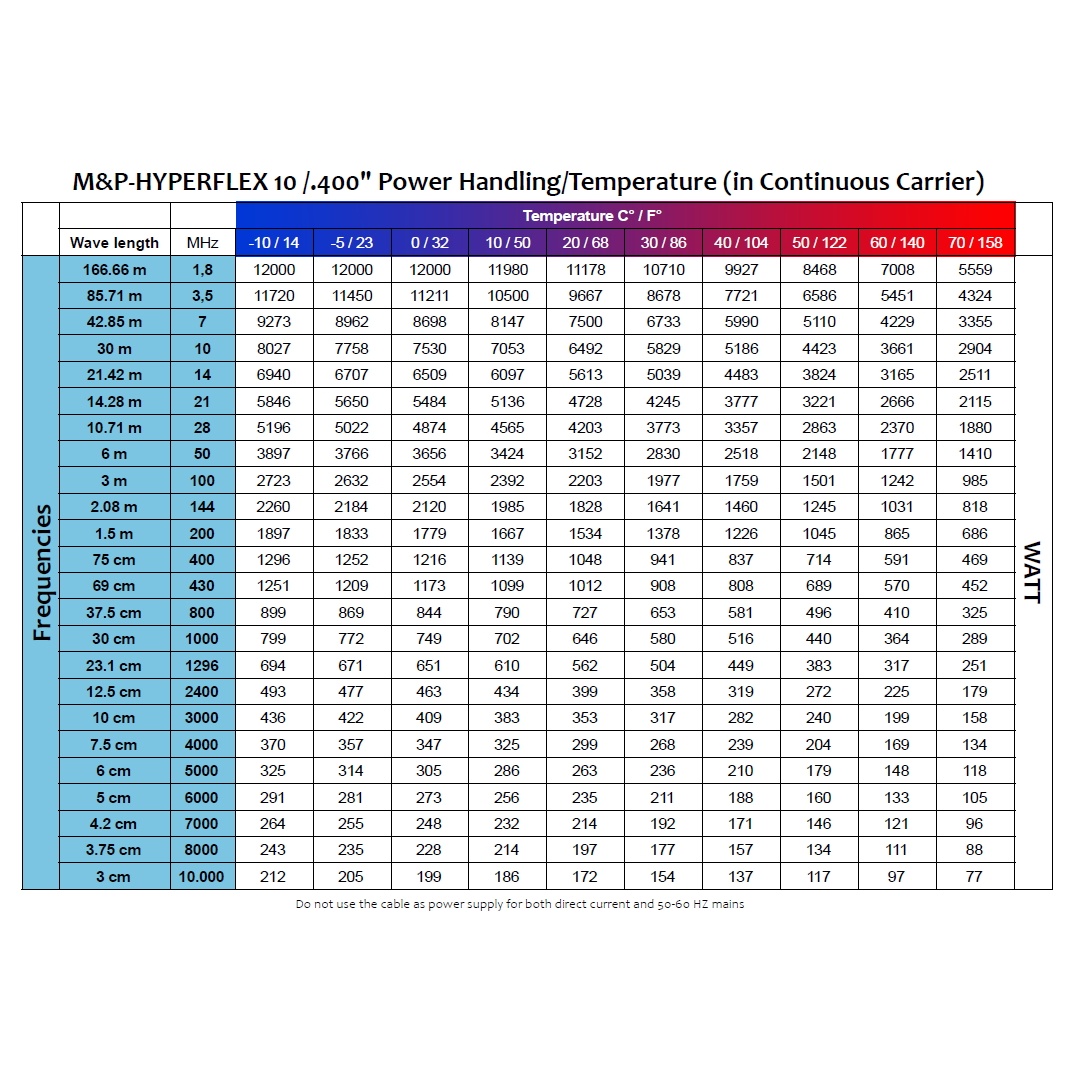

Maximum power at 40°C depending on frequency

1.8 MHz 9927 W
3.5 MHz 7721 W
7 MHz 5990 W
10 MHz 5186 W
14 MHz 4483 W
21 MHz 3777 W
28 MHz 3357 W
50 MHz 2518 W
100 MHz 1759 W
144 MHz 1460 W
200 MHz 1226 W
400 MHz 837 W
430 MHz 808 W
800 MHz 581 W
1000 MHz 516 W
1296 MHz 449 W
2400 MHz 319 W
3000 MHz 282 W
4000 MHz 239 W
5000 MHz 210 W
6000 MHz 188 W
7000 MHz 171 W
8000 MHz 157 W
10000 MHz 137 W
