JNCRADIO MC-599 Portable HF Dipole Antenna 7–50 MHz 200W Chelegance

Summary

The Chelegance JNCRADIO MC-599 dipole antenna is the ultimate solution for mobile amateur radio operators who demand high performance and quick set-up. Designed to cover the HF bands from 7 to 50 MHz with a power handling capacity of 200W, it features a 1:1 balun and an ingenious marking system on the whip elements for precise, tool-free tuning. It is the perfect choice for POTA and SOTA activations or temporary set-ups whilst on holiday.

Key features

• Intuitive marking system: No more fiddling around to find the resonance – the telescopic whip antennas are marked for each band (14–50 MHz), allowing adjustment in a matter of seconds.

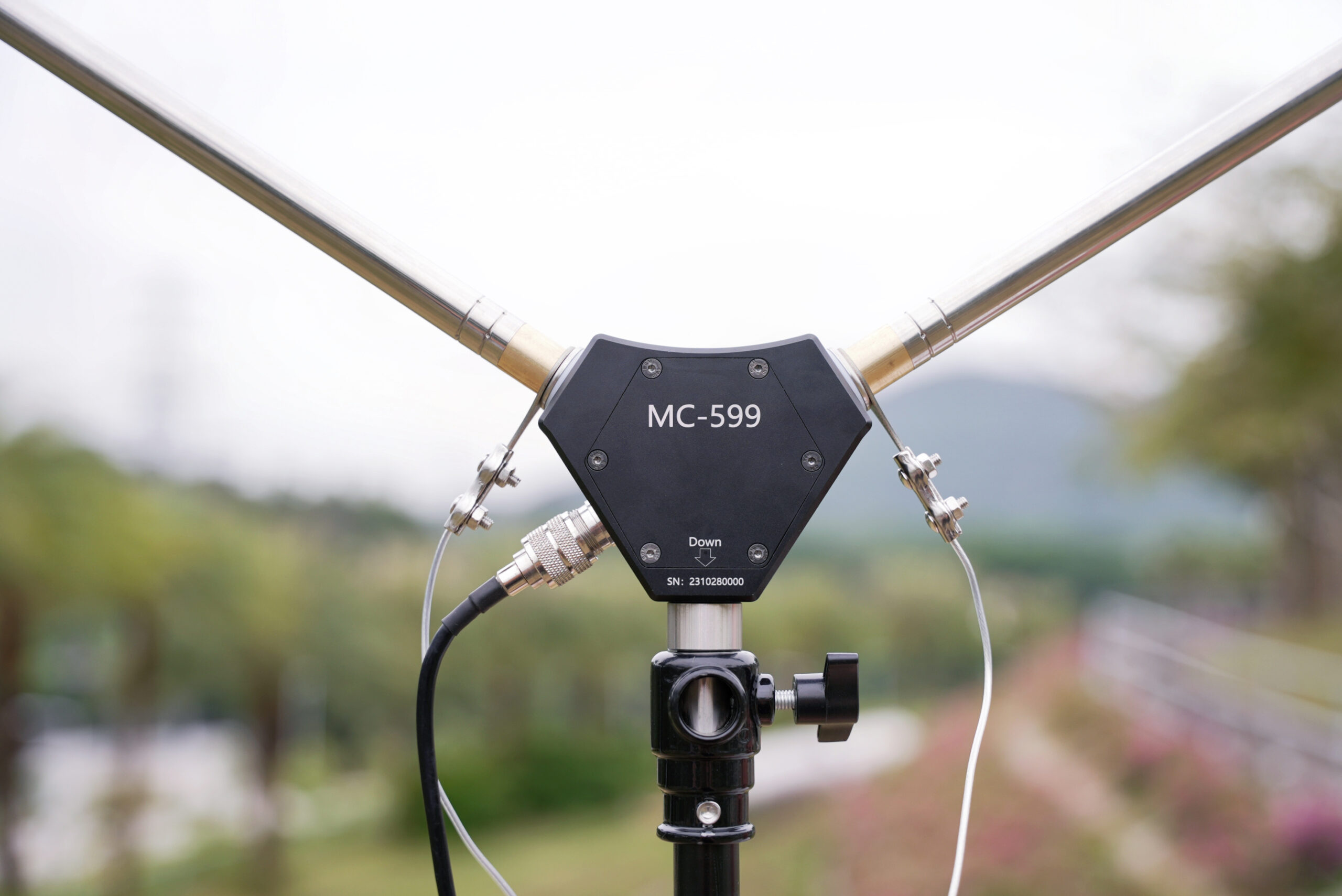

• High-performance 1:1 balun: Integrated directly into the aluminium base, it eliminates common-mode interference and ensures a clean signal.
• 40-metre extension included: Unlike many portable antennas limited to 20 metres, the MC-599 includes specific wire elements to operate effectively on the 7 MHz band.
• Robust and lightweight: Weighing just 1.43 kg and featuring a sturdy aluminium base, it combines durability with ease of transport.
• Wide bandwidth: Once tuned to a centre frequency (e.g. 14 MHz), it generally covers the entire band without requiring constant readjustment.

Technical specifications

• Frequencies covered: 7 MHz (40m) to 50 MHz (6m)

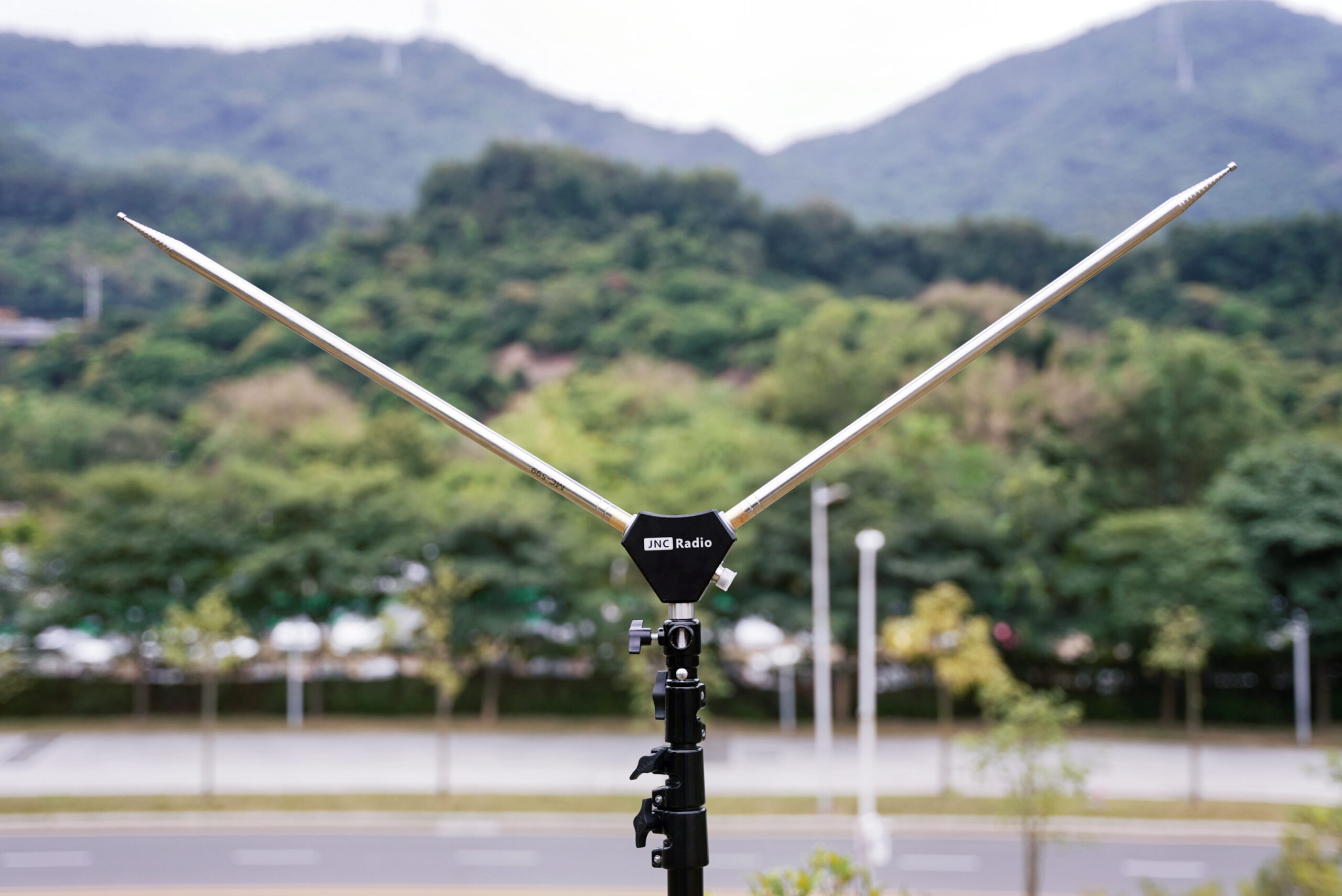

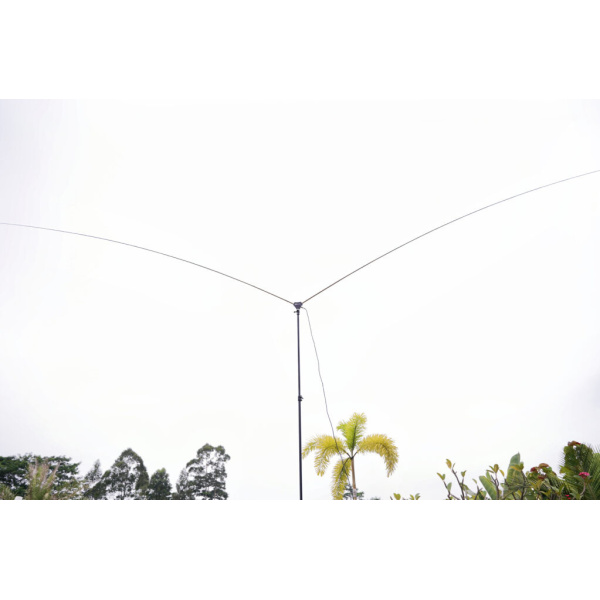

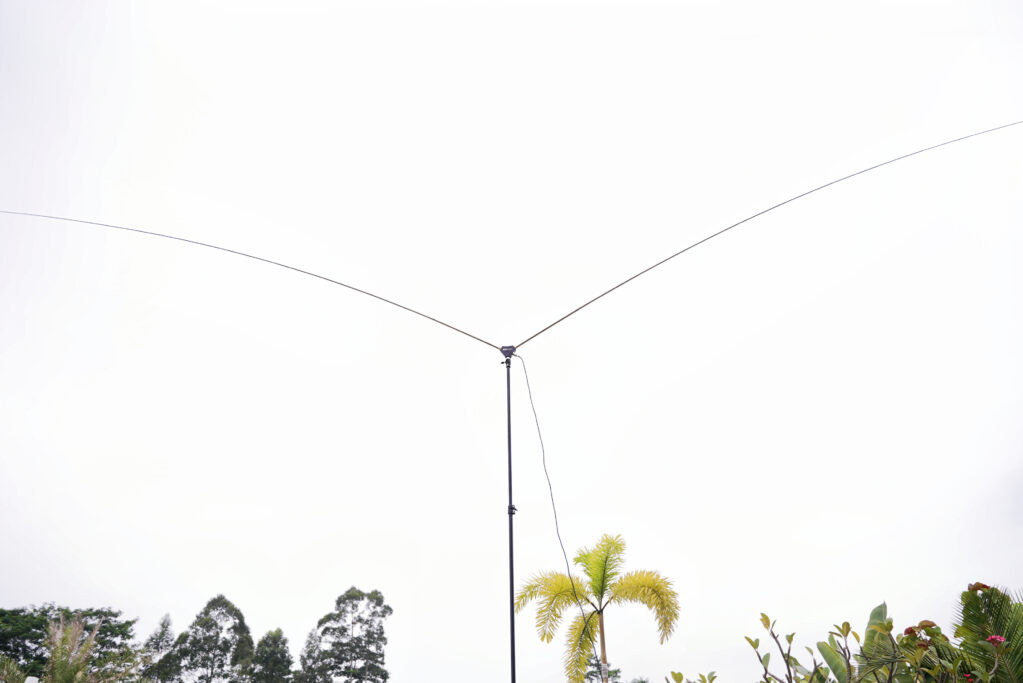

• Antenna type: Rigid dipole (V-Dipole) / inverted V (for 40m)
• Rated power: 200W PEP (SSB), 100W (CW/FT8)
• Impedance: 50 ohms
• TOS (SWR): ≤ 1.5 on the tuned bands
• Antenna connector: UHF female (SO-239)
• Whip length: 5.6m extended / 53.5 cm folded
• Whip connector: M10 thread
• Mounting connector (tripod): M14 thread (adapters are often required for standard camera tripods)
• Carry bag dimensions: 57.5 x 11 x 7.5 cm
• Total weight: 1.43 kg

Compatibility

• Transceivers: Compatible with all HF radios (Yaesu FT-891, Icom IC-705, Xiegu G90, Lab599 TX-500, etc.).
• Mounting: Requires a mast or tripod (not included) compatible with the M14 base thread or via an adapter.
• Coaxial cable: Any 50-ohm cable with a PL-259 connector (UHF male).

FAQ

Why choose the JNCRADIO MC-599?

• Quick to set up: The visual marking system eliminates the need for an antenna analyser in the field, saving valuable time.
• 40m–6m versatility: It offers a true all-in-one solution without sacrificing the 40m band, which is often critical for local and regional contacts.
• Chelegance build quality: Renowned for the finish of its products (JNC Radio), with robust connectors and high-quality whip antennas.
• Excellent performance-to-size ratio: It fits into a small rucksack whilst offering the gain and efficiency of a full 5.6m dipole with a span of 5.6m on each side.
