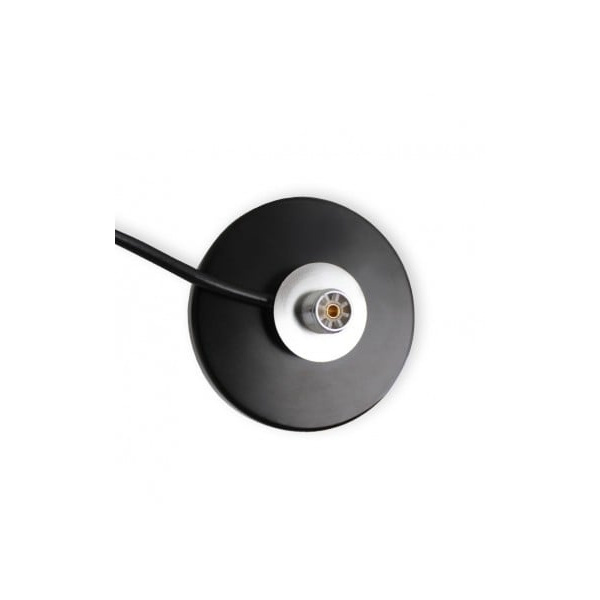

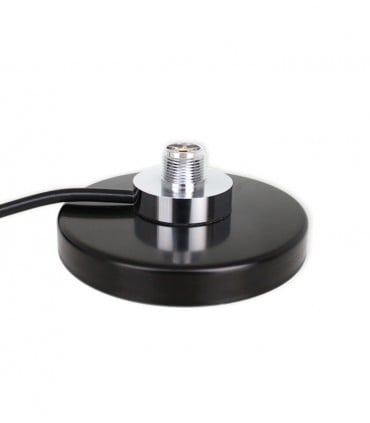

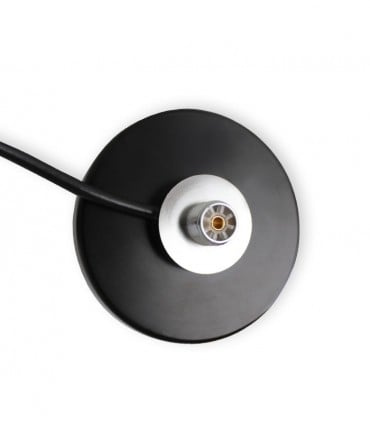

Komunica MB-90-PL Extra-flat Magnetic Base 9cm SO-239 with 5m RG-58 Cable
Read the reviewThe Komunica MB-90-PL is an ultra-flat magnetic base designed to provide a stable and secure attachment of your mobile antennas on the roof of a vehicle. Thanks to its compact design and high-performance magnet, it ensures excellent hold even at high speed.
- Extra-flat design for better aerodynamics
- 90 mm diameter providing maximum adhesion force
- Female SO-239 (PL-259) connector compatible with a wide range of antennas
- Comes with 5 meters of high-quality RG-58 coaxial cable
- Male PL-259 connector already mounted at the end of the cable
Comes with: 1 MB-90-PL magnetic base, 5 meters of RG-58 cable, PL-259 connector.
Data sheet
The Komunica MB-90-PL magnetic base is the ideal solution for ham radio operators and CB users looking for a discreet but powerful support. Its low profile reduces wind resistance and the risk of tearing, while maintaining a sober aesthetic on the vehicle.
Key Features
- Ultra-low profile for maximum discretion and reduced whistling noise.
- High power magnet ensuring perfect stability on metal surfaces.
- Generous 5-meter cable allowing a clean installation from the roof to the radio station.
- Robust construction resistant to weather and corrosion.
- Protected contact surface to prevent scratches on the vehicle bodywork.
Technical Specifications
- Model: MB-90-PL
- Type: Extra-flat magnetic base
- Diameter: 90 mm
- Base connector: SO-239 (UHF female)
- Cable type: RG-58 Mil-Spec
- Cable length: 5 meters
- Cable connector: PL-259 (UHF male)
- Material: Treated steel and high performance magnetic base
- Color: Black
Compatibility
- Compatible with all mobile antennas equipped with a PL-259 (male) connector.
- Ideal for VHF/UHF, CB 27 MHz and medium-sized HF antennas.
- Can be installed on any vehicle with a steel roof or a flat metal surface.
FAQ
Can this base support large antennas?
The 9 cm diameter is optimized for small to medium-sized antennas. For very long CB or HF antennas, it is advisable to check the wind resistance at high speed.
Does the base scratch the car's paint?
No, the Komunica base is designed to be gentle with the bodywork, but it is recommended to clean the roof surface before installation.
Can I change the coaxial cable?
The cable is pre-installed and sealed to ensure waterproofing, it is not recommended to replace it yourself.
Is it compatible with NMO antennas?
No, this base uses a standard SO-239 (PL) thread. For an NMO antenna, an adapter or a specific base would be necessary.
Is it waterproof?
Yes, the extra-flat design and seals provide excellent protection against moisture and water splashes.
