Nissei TX-101A HF 1.6-60 MHz 2kW SWR power meter with PEP measurement

rating No review at the moment

The Nissei TX-101A is a high-precision measuring instrument designed for radio amateurs and CB users operating in the HF and 50 MHz bands. It simultaneously monitors forward power, reflected power and standing wave ratio (SWR) to optimize your station's performance.

  • Wide frequency range from 1.6 to 60 MHz (HF and 6 meters)
  • Three selectable power scales: 20W, 200W and 2kW
  • Switchable peak power measurement (PEP) for SSB modes

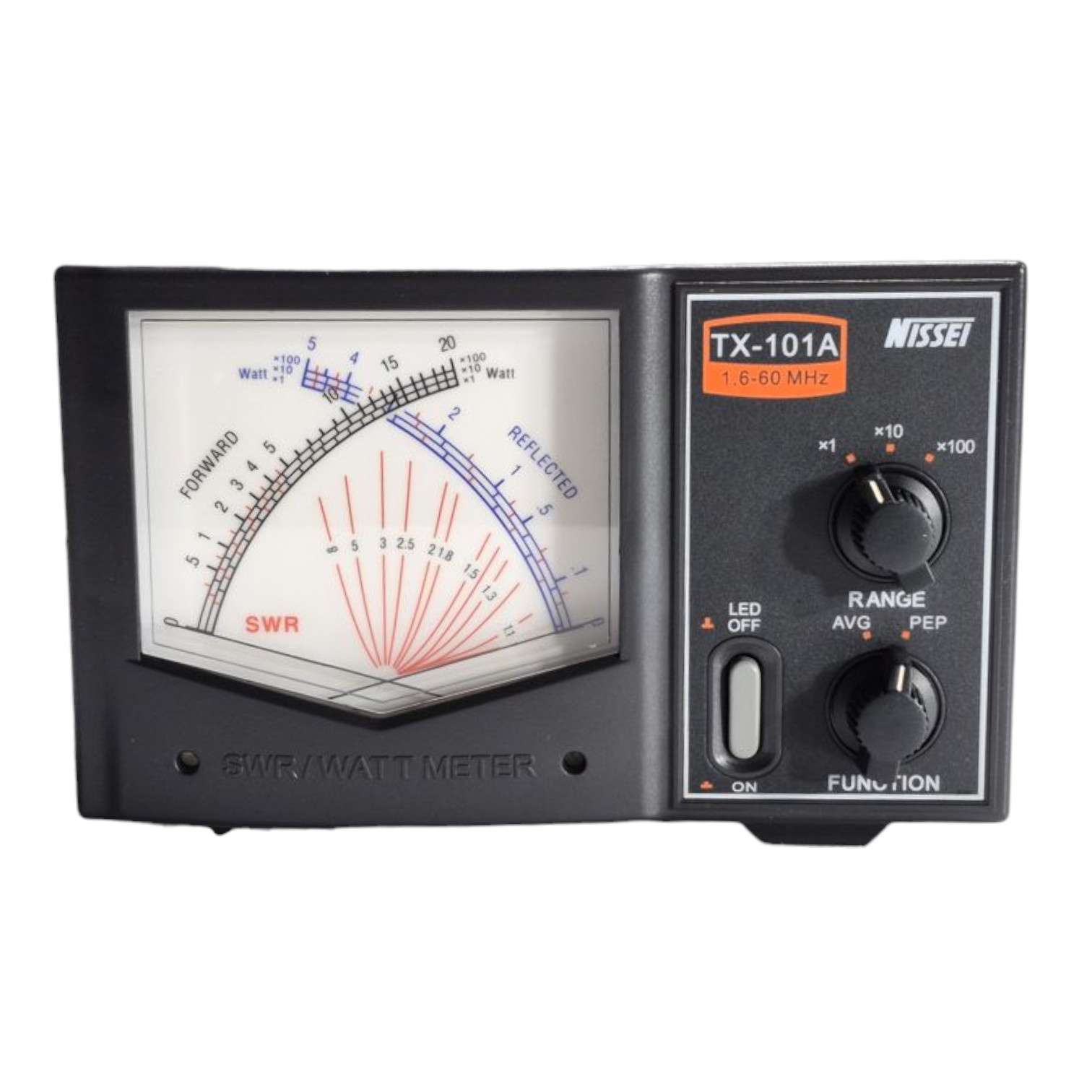

  • Large backlit crosshair dial for easy reading

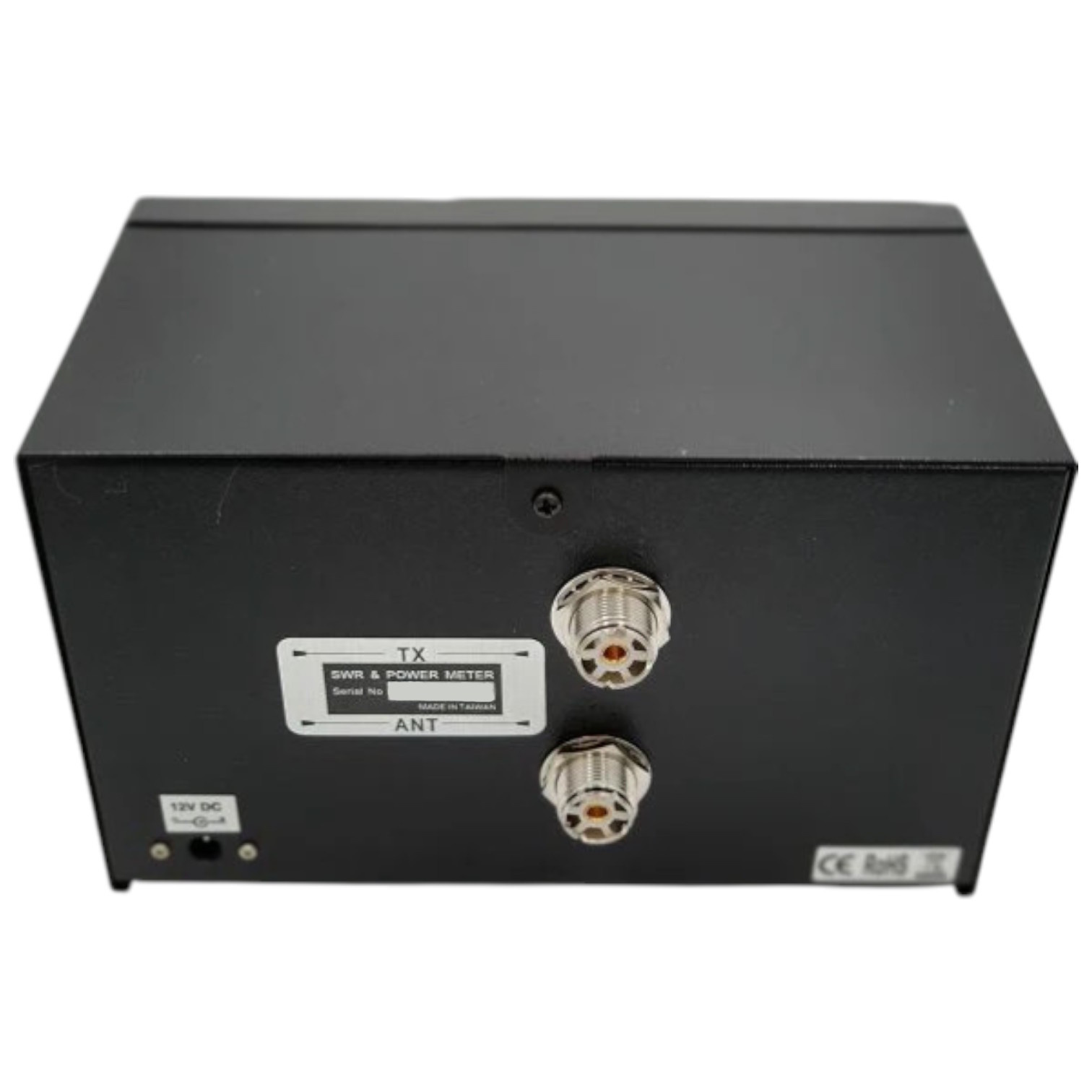

  • Rugged SO-239 (UHF-Female) connectors
  • Accuracy better than 10% of full scale

Supplied with: 12V power cord for backlight, English user manual.

More details

149,00 € tax excl.

In stock

   4 Items

Estimate shipping costs by clicking on "Add to cart", then enter only your country and zip code on the cart page.

Data sheet

The Nissei TX-101A is an indispensable measuring instrument for any radio operator wishing to check signal quality and transmitter safety in the HF bands. Its robust design and clear display make it the ideal choice for fixed stations.

Highlights

  • Double needle for immediate reading of power and SWR without prior calibration.
  • Supports up to 2000W, ideal for high-power amplifiers.
  • Active PEP function for precise measurement of SSB modulation peaks.
  • Shielded metal housing limits RF interference and ensures long life.
  • Integrated backlight for comfortable use in low-light conditions.

Technical specifications

  • Frequency range: 1.6 to 60 MHz
  • Input/output impedance: 50 Ohms
  • Power ranges: 20 / 200 / 2000 Watts
  • Minimum power for SWR measurement: 1 Watt
  • Accuracy: +/- 10% of full scale
  • Measurement functions: direct power, reflected power, PEP, SWR
  • Connections: UHF-Female (SO-239)
  • Lighting power supply: 9 - 14 VDC, 200mA max
  • Dimensions: 184 x 118 x 131 mm
  • Weight: 900 g

Compatibility

  • All HF transceivers (ICOM, Kenwood, Yaesu, Alinco, AnyTone).
  • HF linear amplifiers up to 2kW.
  • HF antennas (dipoles, verticals, beams) and 50 MHz antennas.
  • Coaxial cables with PL-259 plugs.

FAQ

Does the backlight require an external power supply?

Yes, to switch on the dial and use the active PEP function, a 12V to 14V DC power supply is required.

Is it possible to measure the power of a VHF/UHF walkie-talkie?

No, this device is specifically calibrated for HF frequencies (1.6-60 MHz). For VHF/UHF, prefer the TX-402 or TX-502.

What is the PEP mode on this model?

PEP (Peak Envelope Power) mode measures real power at SSB voice peaks, which standard needles can't capture accurately.

Does the device affect output power?

Insertion loss is negligible (less than 0.2 dB), so the device can be left permanently plugged into the transmission line.

Is it suitable for CB (27 MHz)?

Absolutely, it covers the CB band perfectly and enables much more accurate measurements than entry-level models.

Why choose the Nissei TX-101A?

  • Excellent value for money for a 2kW device.
  • Reliability of the Nissei brand, world-renowned in the field of radio measurement.
  • Simultaneous SWR/Power reading without calibration buttons (Cross-Needle system).
  • Durable construction with a heavy chassis that remains stable on the desk.
