> Ham & radio equipment>CB 27Mhz >CB mobile>CB BLU/SSB Mobile>JOPIX AT-5555N II Mobile Transmitter 10 meters 28MHz AM/FM/SSB 60W

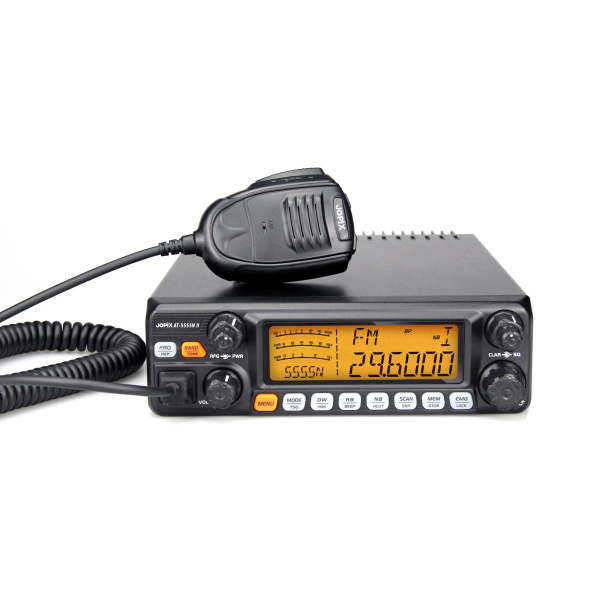

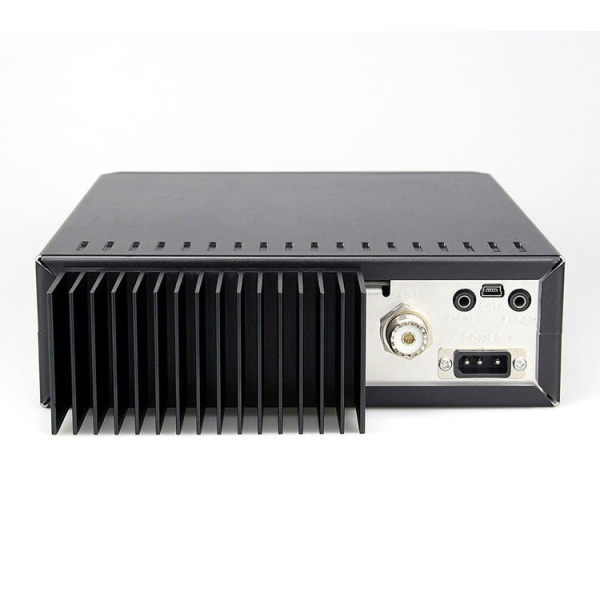

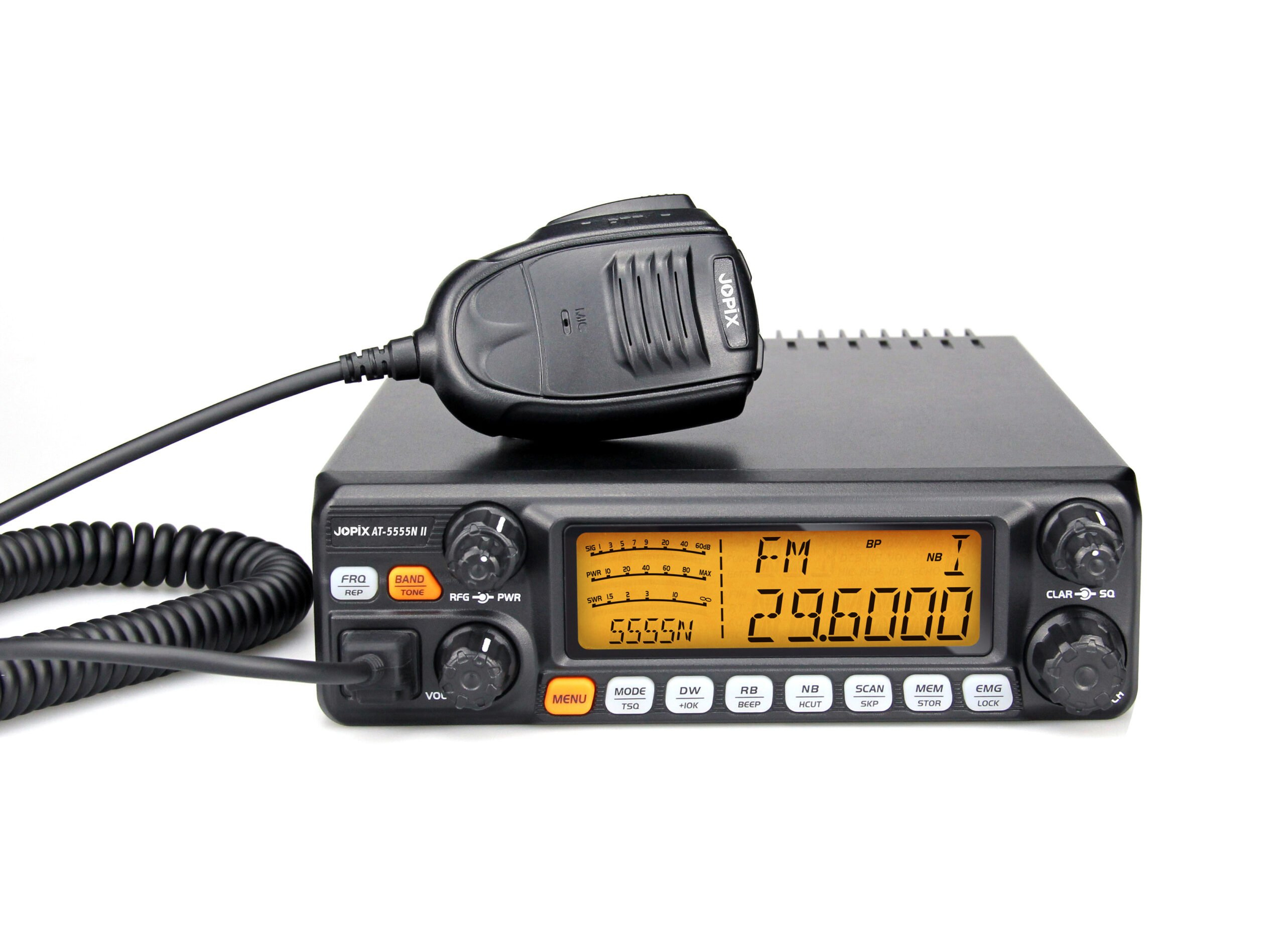

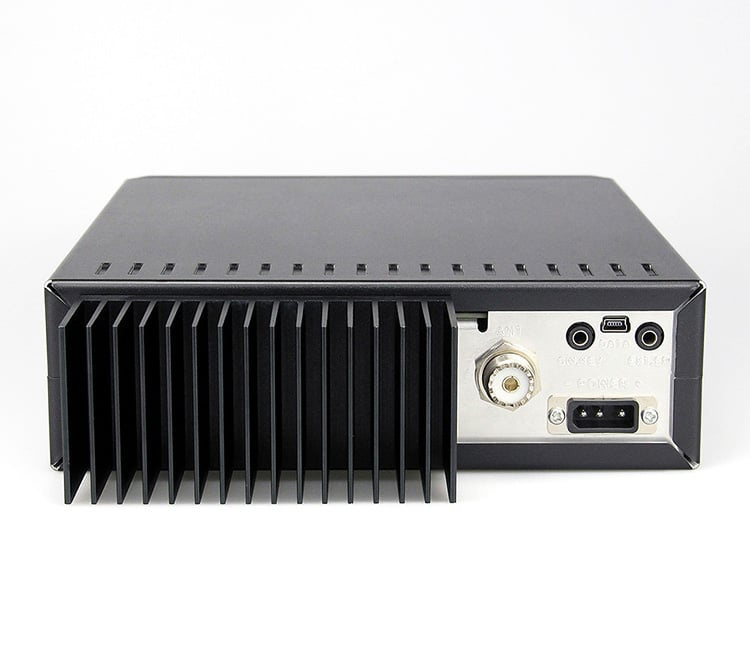

New JOPIX AT-5555N II Mobile Transmitter 10 meters 28MHz AM/FM/SSB 60W View larger

Jopix

JOPIX-5555NII-3068

New product

Spain

Safety Information +

JOPIX AT-5555N II Mobile Transmitter 10 meters 28MHz AM/FM/SSB 60W

rating No review at the moment

JOPIX AT-5555N II 10-metre (28MHz) mobile transmitter with AM/FM/BLU 60W modes.

  • 10-metre band (28 MHz)
  • AM/FM/BLU modes (LSB/USB)
  • Multifunction LCD display
  • RX/TX clarifier
  • Scan and memory function
  • 60W SSB PEP output

Supplied with: microphone, mounting bracket, user manual, power cable.

More details

259,00 € tax excl.

In stock

   5 Items

Estimate shipping costs by clicking on "Add to cart", then enter only your country and zip code on the cart page.

Data sheet

  • Frequency: 28,000 - 29,700 MHz (10 metres)
  • Modes: AM/FM/SSB (LSB/USB) and CW
  • RF output power: 60W (PEP on AM and SSB) / 50W (FM)
  • Power consumption: 10A maximum
  • Power supply: 13.8V DC ±15
  • Frequency control: PLL synthesiser
  • Frequency steps: 100Hz / 1kHz / 5kHz / 10kHz / 100kHz / 1 MHz
  • Frequency tolerance: ±5.0 ppm
  • Operating temperature : -20° to +50°C
  • Microphone: With [PTT] / [UP] / [DN] buttons and coiled cable
  • Supply voltage: 13.8 Vdc
  • Dimensions : 250 (length) x 200 (width) x 60 (height) mm
  • Weight: 1.5kg
  • Display: multifunction LCD
  • Antenna connector: SO-239
  • Audio output: 3 W @ 8 Ω

Features

  • Large LCD display with backlight dimming
  • FM / AM / USB / LSB / CW / PA modes
  • Tuning steps: 100Hz / 1kHz / 5kHz / 10kHz / 100kHz / 1 MHz
  • Clarifier setting ±500Hz /5kHz (R/T/R+T selectable)
  • Flexible menus and PC programming software
  • Noise reduction on TX and RX
  • VFO / BAND / Memory Channel modes
  • CTCSS/DCS with "RX/TX Split" functions.
  • Enhanced VOX functions (can be supported in digital mode)
  • SQ, ASQ function (FM and AM mode only)
  • RF gain adjustment
  • RF power adjustment
  • SCAN function
  • NB/ANL function
  • Repeater offset / frequency offset
  • Counter for SIG / PWR / SWR functions
  • TOT transmission timer
  • Voice distortion filter (HI-CUT)
  • SWR protection
  • Supply voltage protection
  • WX weather channels with RX VFO mode (136-174 MHz FM)
  • Keypad lock
  • Compatible with electronic and dynamic microphones
  • Echo chamber function (ECHO)
  • Programmable Roger Beep (RB)
  • 10 kHz offset
  • Dual standby (DW)
  • Emergency channel (EMG)
  • Talkback function
