Car antenna Sirio HP-2070/R VHF-UHF Sirio Mobile CRT-SIRIO-HP-2070-541 View larger

New product

Car antenna Sirio HP-2070/R VHF-UHF

5 1
rating
5/ 5
No review at the moment

Screw whip antenna with PL259 for car of SIRIO HP-2070 and 2070R, for the band VHF and UHF in emission and reception:

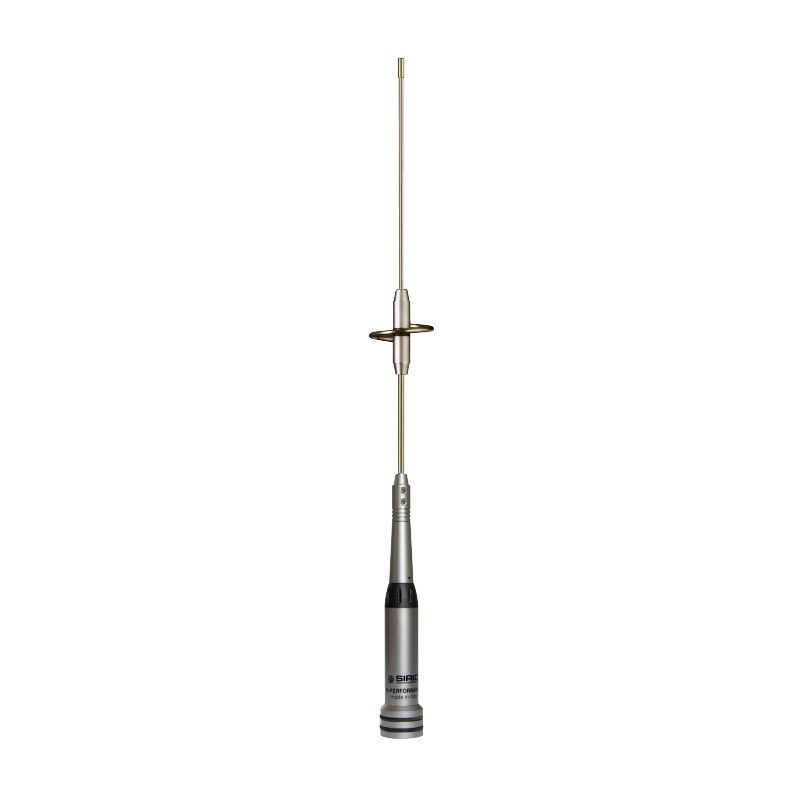

Sirio HP-2070 version (44.5cm length): Frequency VHF 141-149Mhz and UHF from 422 to 447Mhz

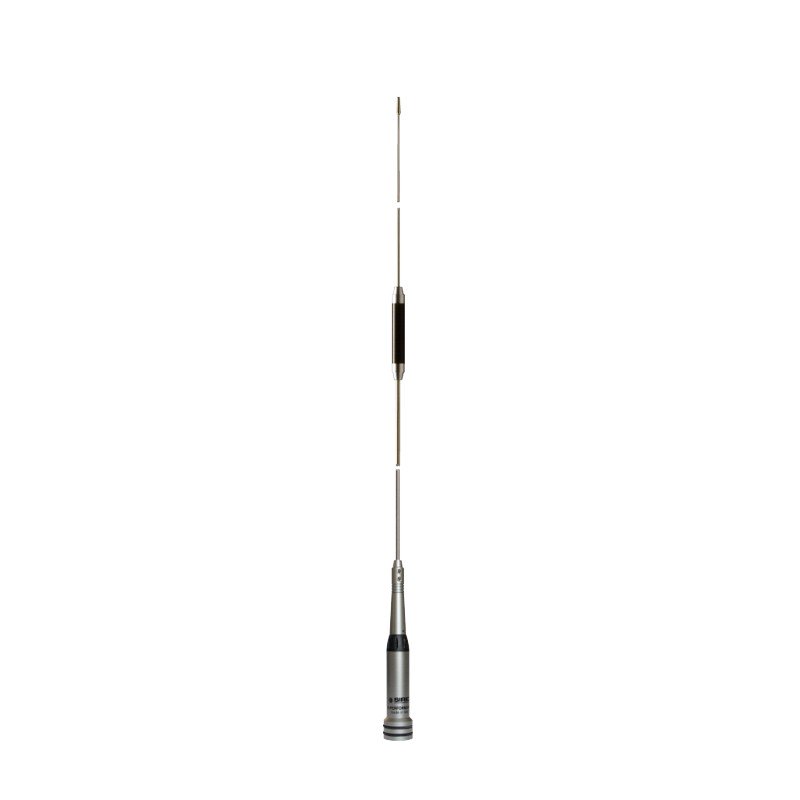

Sirio HP-2070R version (1m length): VHF frequency 142-148 MHz and UHF 430-440 MHz

Supplied without cable and support available as an option.

This antenna requires a ground plane to operate, either via a support connected to the body, or via a magnetic base on the roof of the vehicle or on a metal plate of 1m² minimum.

More details

44,90 € tax incl.

In stock

   3 Items

  • HP-2070 44,5cm
  • HP-2070-R 1m

More info

Technical specifications SIRIO 2070

Frequencies: VHF 141-149 MHz, UHF 422-447 MHz
Impedance: 50 Ohms
Type: VHF 1/4 - UHF 5/8 wave
Maximum power: VHF 150 W, UHF 100 W
Length: 445 mm
Weight: 270 g
Polarization: vertical
Gain: VHF: 0 dB - UHF: 2dB
Stainless steel whisk

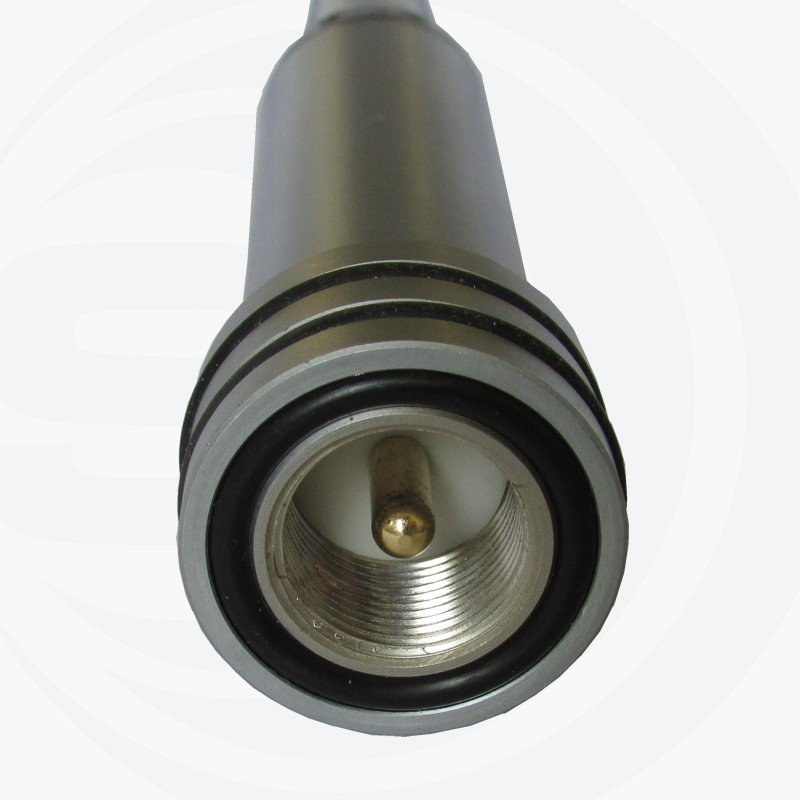

Connector Type: PL259 (UHF MALE)

Technical specifications SIRIO 2070R

Frequencies: VHF 142-148 MHz and UHF 430-440 MHz
Impedance: 50 Ohms
Type: VHF 1/2 - UHF 2x 5/8 wave
Maximum power: VHF 150 W, UHF 100 W
Length: 1000 mm
Weight: 300 g
Polarization: vertical
Gain: VHF 0.6dB - UHF 4.6dB
Stainless steel whisk
Connector Type: UHF MALE (PL 259)
