Discone antenna SIRIO SD-1300 RX 25-1300 Mhz & TX VHF-UHF

Read the 2 reviews

Average rating: 5/5 Number of reviews: 2

Demander un devis

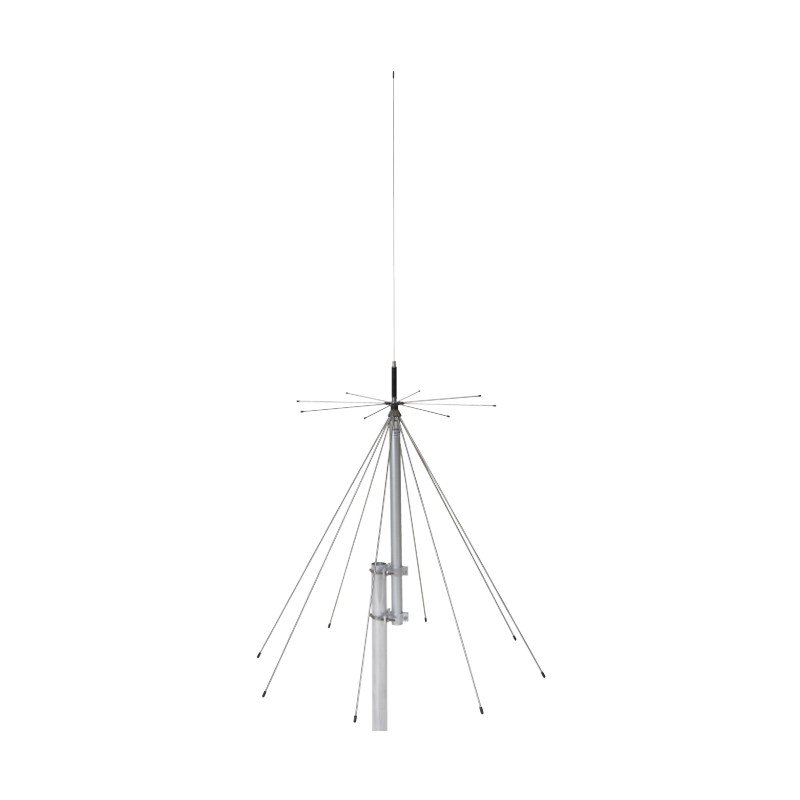

Discone antenna SIRIO SD 1300 N (with N plug) or SD1300U (with UHF female connector - SO-239), wide-bande in reception from 25 to 1300 Mhz and the radio amateur bands in emission on 50Mhz, 144Mhz, 430Mhz and 1200Mhz with female connector and a size of 1,6m.

- Reception from 25 to 1300 MHz
- Emissions on 49.5-50.5, 120-180, 215-300, 415-465, 610-650, 710-1000, 1130-1300 MHz

Delivered with: 1 SIRIO SD-1300N or SD-1300U antenna, to choose below.

More details

Download

Manual SD-1300 N

Installation guide for SIRIO SD-1300 N in english 107.54k

SIRIO Discone comparison

Comparison of SIRIO discone antennas: SD-1300 U/N, SD-2000 U/N and SD 3000 U/N. 1.4M

Data sheet

Discone antenna Sirio SD1300

Receive from 25 to 1300 MHz: CB 27MHz, 6m, 2m, 70cm, VHF Airband, Marine VHF, AIS-162MHz, TETRA, LTE-450, 4G-LTE, ISM-433MHz, etc.
Length: 1600mm
Radian circumference: 810mm
Weight: 1.2Kg
Gain: 0dB (2dBi)
Impedance: 50 ohms

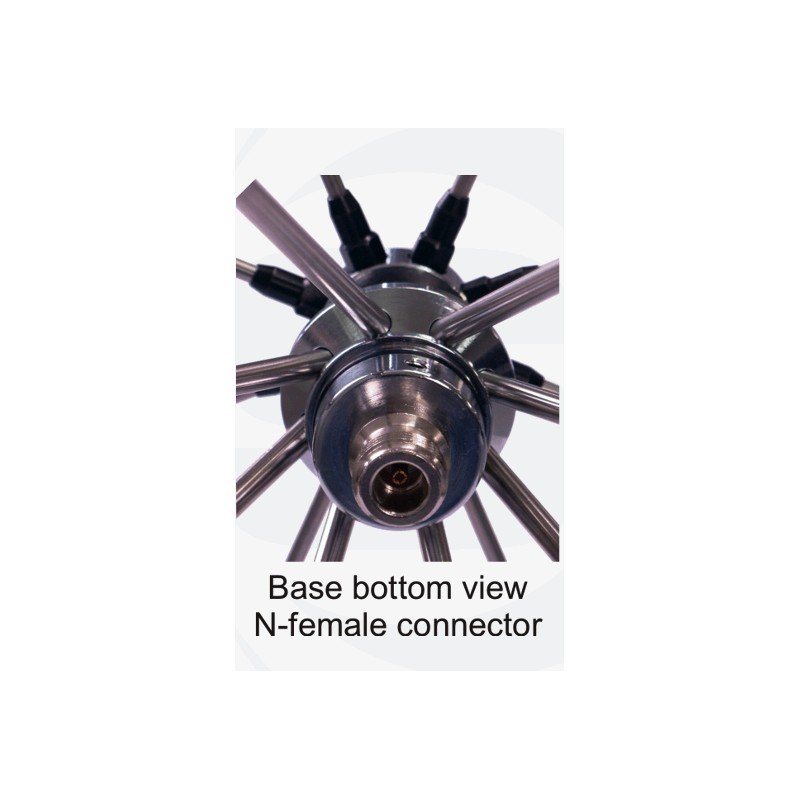

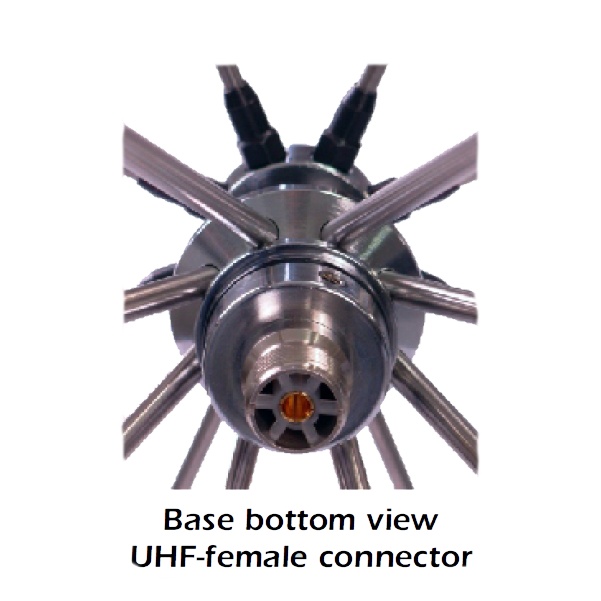

Connector: N Female (SD1300N version) or UHF female (SO-239 SD1300U version)
Maximum power: 200W (VHF), 300W (UHF)
Adjustable in transmission (TX): 49.5-50.5, 120-180, 215-300, 415-465, 610-650, 710-1000, 1130-1300 MHz
SWR: Less than 2
Diameter of accepted mat: 25mm to 54mm
Wind resistance: 130 Km/h
