TYT TM-D70W Mobile VHF UHF 70W transponder

rating No review at the moment

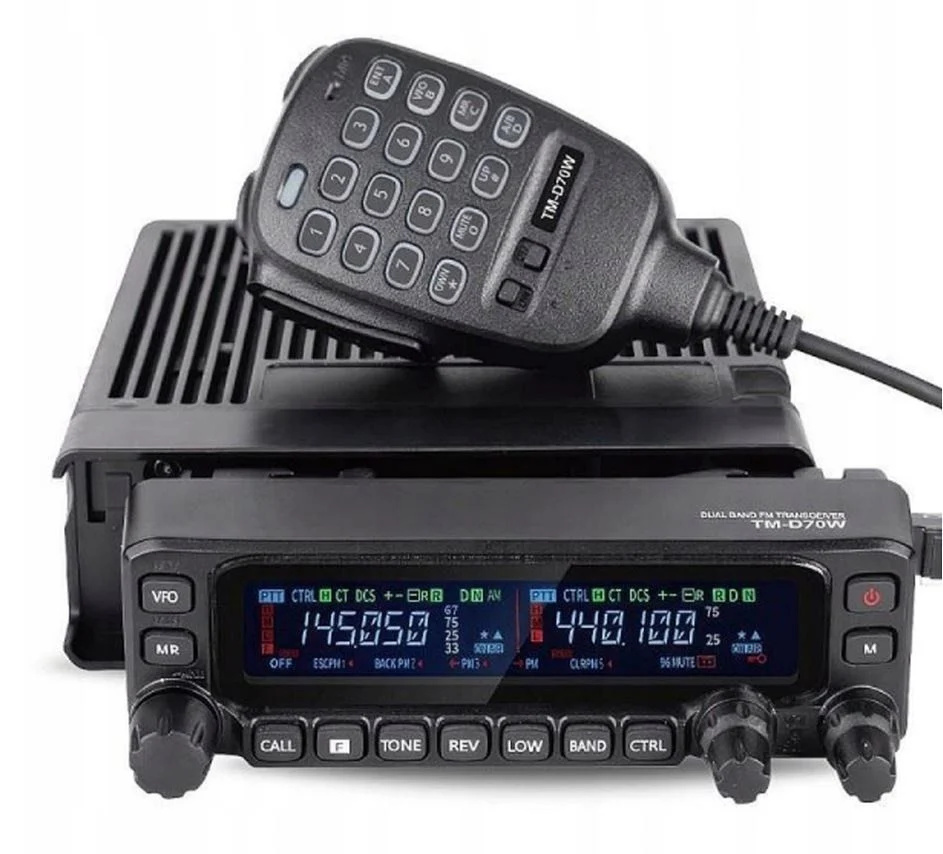

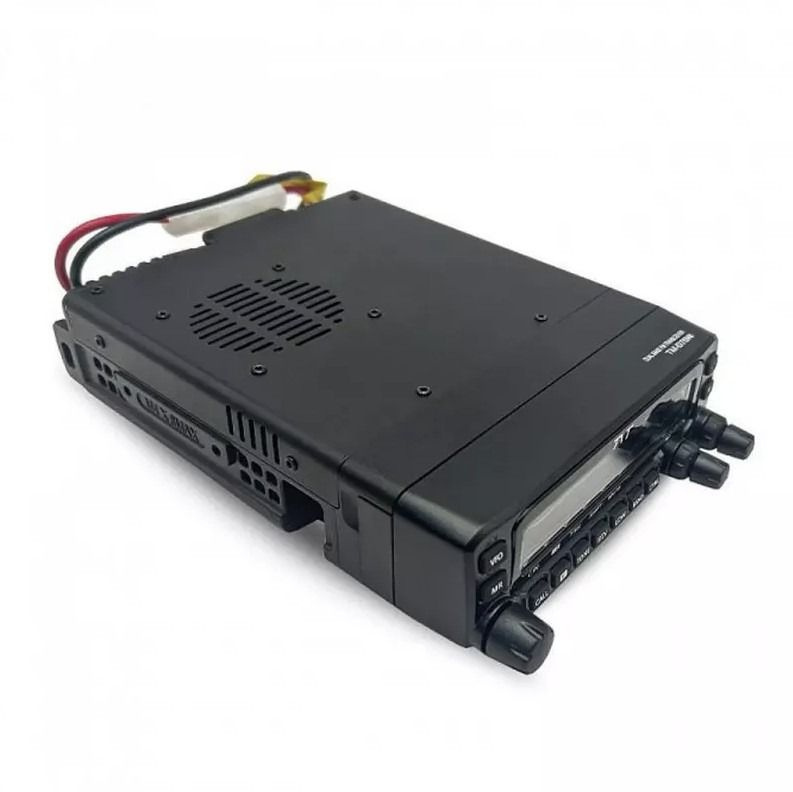

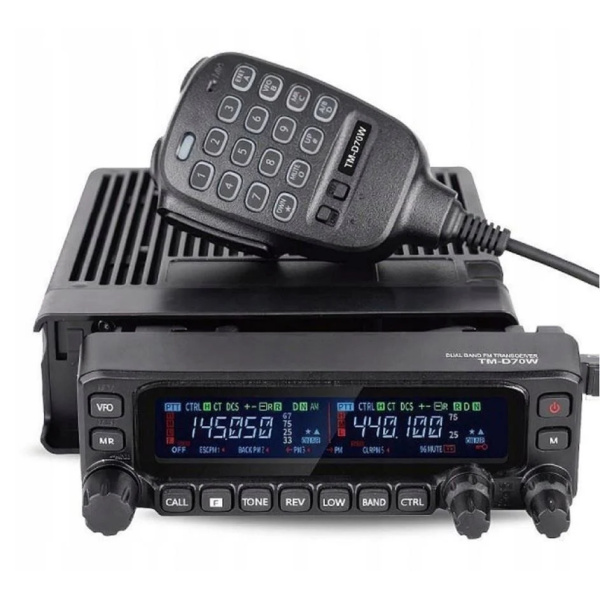

The TYT TM-D70W is a VHF/UHF dual band analog mobile station designed for vehicle installation, fixed station or emergency radio, with high power up to 70 W in VHF and 60 W in UHF, independent dual reception and a cross-band relay function (transponder) to extend the coverage of a portable via a mobile installation.

Compact design, 13.8 V DC power supply, with detachable front panel, SO-239 antenna socket and PC programming via supplied USB-C cable.

  • Analog VHF/UHF mobile transceiver for amateur radio use

  • High power: up to 70 W in VHF and 60 W in UHF depending on used band

  • Dual reception with two independent receivers to monitor two frequencies simultaneously

  • Cross-band relay function to relay a communication between VHF and UHF

  • Detachable front panel for remote installation in a vehicle

  • Large dual display screen, readable in mobile use

  • PC programming via supplied USB-C cable

Comes with: microphone, mounting bracket with screws, 12 V power cable, 13 foot remote front panel cable, fuses, user guide, USB-C programming cable.

More details

295,00 € tax excl.

In stock

   10 Items

Estimate shipping costs by clicking on "Add to cart", then enter only your country and zip code on the cart page.

Download

Firmware TM-D70W 0526

1.44M

CPS TM-D70W

1.24M

Data sheet

  • Brand: TYT

  • Model: TM-D70W

  • Type: VHF/UHF analog mobile transceiver

  • Usage: mobile vehicle radio, fixed station, cross-band relay, simplex or relay communications

  • Covered Bands: VHF 2 m and UHF 70 cm

  • Transmission Power: up to 70 W in VHF and 60 W in UHF

  • Power Levels: high, medium, low; measurements taken around 71 W / 27 W / 2.5 W in VHF and 59 W / 26 W / 2.4 W in UHF according to independent test

  • Memory Channels: 200 memory channels according to dealer sheets and tests consulted

  • Reception: FM broadcast 64–108 MHz, AM aviation band 108–134 MHz, FM VHF 136–174 MHz and UHF 400–520 MHz

  • Emission: VHF/UHF according to programming, version and applicable regulation; TX 144–146 MHz / 430–440 MHz for the European amateur radio market

  • Relay Function: integrated VHF/UHF cross-band (transponder)

  • Double Reception: two independent receivers with separate volume and squelch settings

  • Display: dual screen with frequency display, channel name or channel number

  • Channel Names: up to 16 characters, with scrolling of the full name according to Miklor test

  • Front Panel: detachable front panel for remote installation

  • Front Panel Cable: 4m extension cable included

  • Programming: PC programming via USB-C port and supplied cable

  • Antenna Connector: SO-239

  • Rear Connection: SO-239 antenna socket, cooling fan, external speaker outputs, USB-C programming port

  • Power Supply: 13.8 V DC

  • High Power Current: over 12 A measured at high power; direct battery connection recommended for mobile use

  • Cooling: thermostatic fan and reinforced heat sink

  • Protection: IP54

  • Functions: VOX, cross-band relay, dual display, dual reception, PC programming, detachable front panel

  • Dimensions: 140 × 43 × 215 mm

  • Weight: about 1.1 kg

  • Installation: mobile vehicle, 4x4, motorhome, fixed station with suitable 13.8 V power supply

  • Antenna Compatibility: VHF/UHF 50 ohm antenna with suitable SO-239/PL-259 connector

  • Licence: use in transmission reserved for authorised operators, according to the current amateur radio regulation
