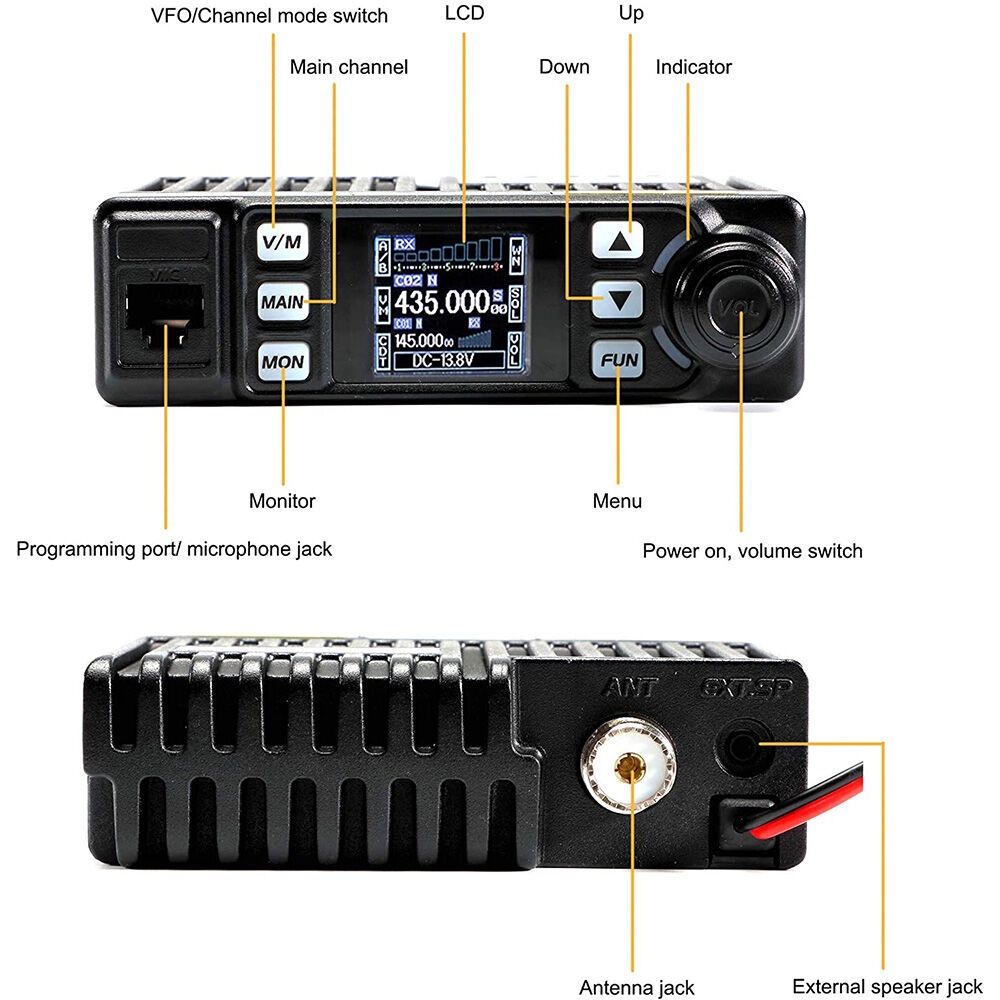

Anytone AT-779UV 25W FM 144/430Mhz Dual Band Mobile

The Anytone AT-779UV is the latest addition to Anytone's ultra-compact and rugged dual band VHF and UHF range for the 144Mhz (2m) and 430Mhz (70cm) amateur radio bands, analogue FM mode with 25 watts (VHF) and 20 watts (UHF ) and TFT colour display.

With CTCSS, DCS, DTMF, 1750Hz tone, 2Tone, 5Tone, 500 channels, 2.5K, 5K, 6.25K, 10K, 12.5K and 25K frequency steps, external speaker/listener jack and 12V power supply with cigarette lighter plug included.

This set is programmable under Windows 10 with the not included USB programming cable.

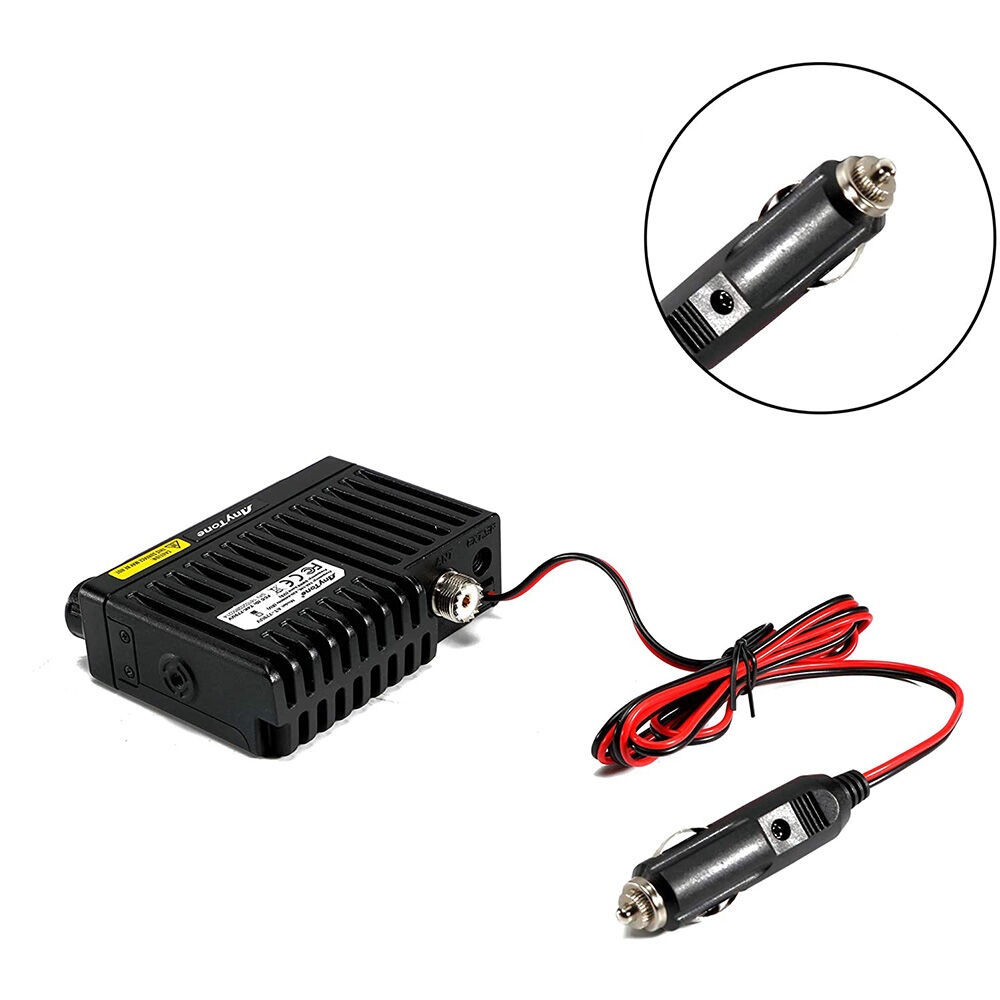

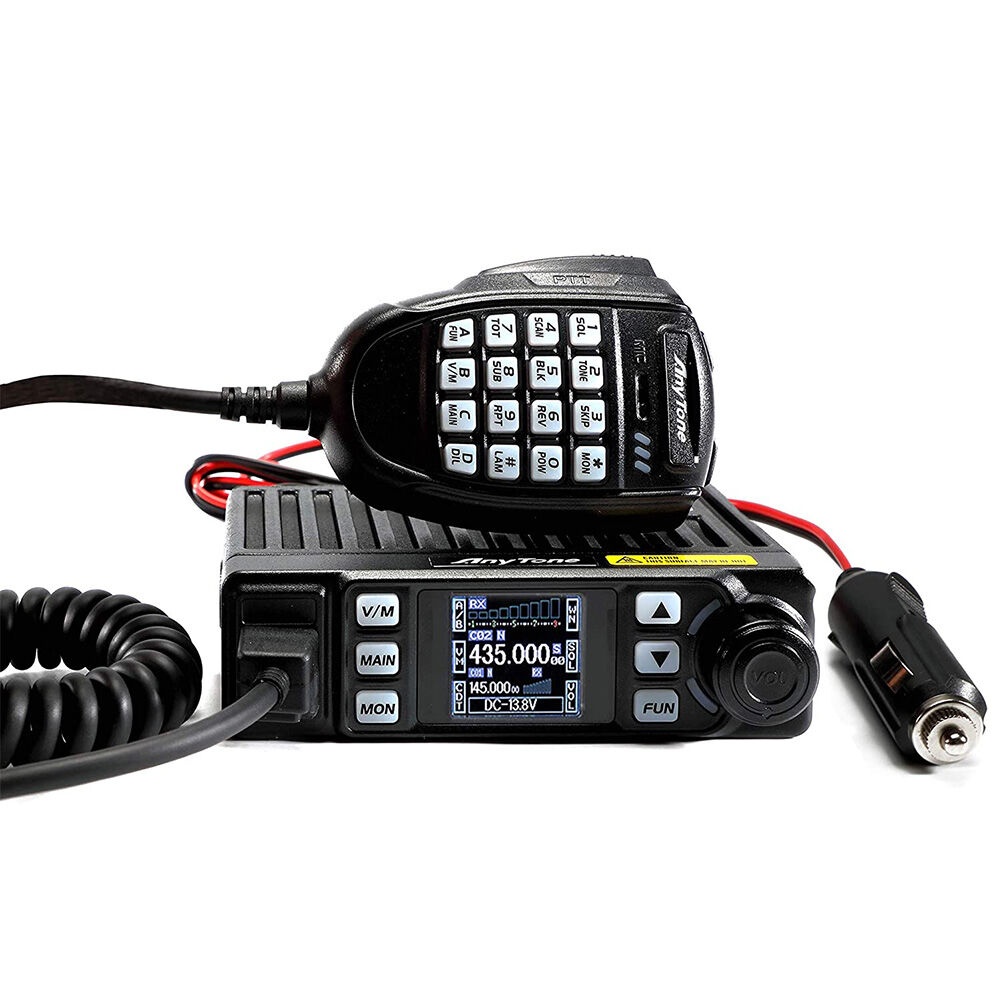

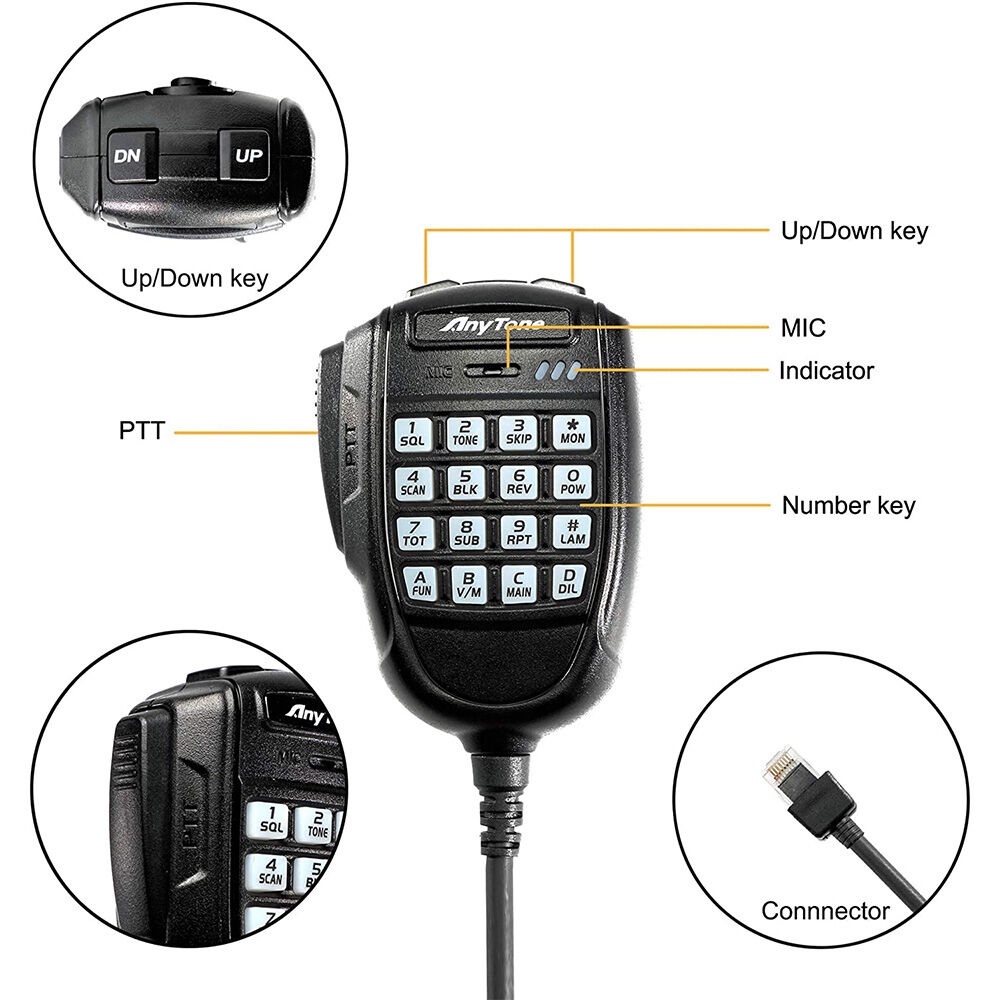

Comes complete with: 1 AT-779UV, 1 multi-function handheld microphone, 1 mounting bracket and stand, 1 DC power cable with car cigarette lighter socket (12V), user manual.

More details

Download

Drivers Windows Anytone

861.01k

Manual AT-779UV (EN)

User guide and manual in english for the Anytone AT-779UV 1.4M

Programming software AT-779

CPS software for Windows and AT-779 4.13M

Data sheet

Dual Band: VHF and UHF
TX: 144-146 MHz and 430-440 MHz
RX: FM radio 87.5-108MHz, 144-146 MHz, 430-440 MHz
DTMF encoding and decoding
CTCSS, DCS, 2Tone, 5Tone
Tone 1750Hz
500 memory channels
Editable channel name
Adjustable power: 25W / 10W / 5W
TOT (time-out timer)
Frequency steps: 2.5K 5K 6.25K 10K 12.5K 25K
Wide / Narrow Band Selection (25KHz, 12.5KHz)
Frequency Scan
Voice Companding and Scrambler
Offset Repeater (Simplex / RPT / RPT-)
Frequency Input via Microphone Keypad
Programmable via PC software (USB programming cable included)
Power supply: 12V via cigarette lighter socket (included)
Size: 124x101x36mmm
Weight: 450 grams
CE standards and 2 years warranty
