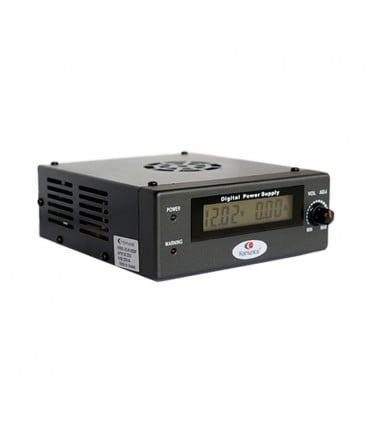

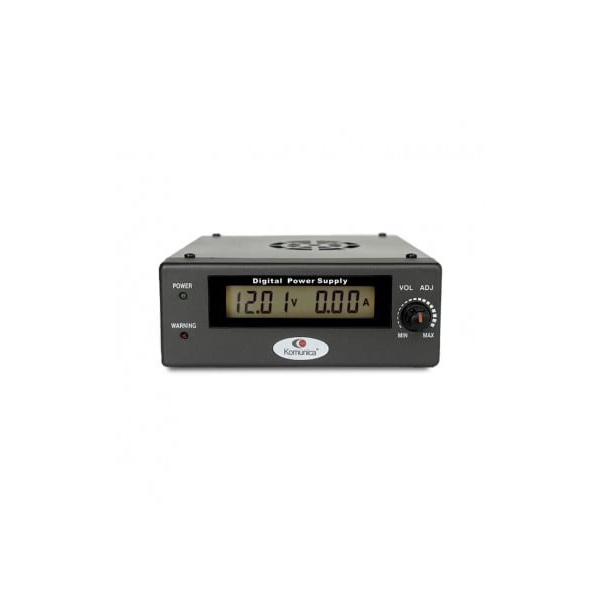

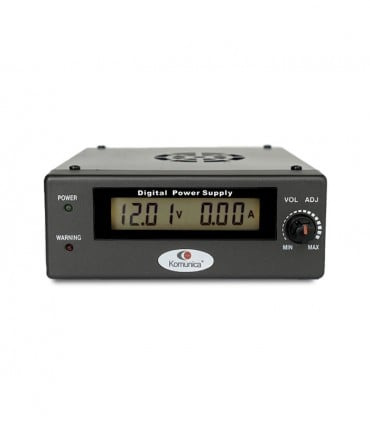

Komunica AV-825-DP Switching Power Supply 25A 13.8V with Compact Digital Display

The Komunica AV-825-DP power supply is a high-precision solution for powering your radio base stations or your laboratory test benches. Its switching technology offers high efficiency while minimizing size and weight compared to traditional transformer power supplies. It is aimed at demanding radio amateurs and technicians looking for a reliable, stable and easy to transport power source.

Key Features

• Extra-flat format facilitating integration on a desk or in a transport case.
• Dual digital display allowing instant reading of consumption parameters.
• Ultra-precise voltage adjustment between 0.5V and 16V to adapt to various equipment.
• Intelligent cooling system with two-stage thermal protection.
• Exceptional voltage stability with regulation less than 1%.
• Automatic protection by voltage reduction in case of fault, preventing damage to the connected equipment.

Technical Specifications

• Type: Switching Power Supply
• Input Voltage: AC 90~125V or 200~240V (selectable internally)
• Output Voltage: Adjustable from 0.5V to 16V DC
• Output Current: 22 Amps (continuous) / 25 Amps (peak)
• Voltage Regulation: Less than 1%
• Ripple and Noise (Ripple): Less than 9m Vp-p at nominal load
• Protections: Short-circuit, overload, overvoltage (beyond 16V), overheating
• Dimensions: 165 x 147 x 55 mm
• Weight: 1.2 kg

Compatibility

• VHF/UHF transceivers from 50W to 100W
• CB stations and medium power HF radios
• 12V or 13.8V powered laboratory equipment
• Output connectors: Robust terminals at the rear

FAQ

Why choose the Komunica AV-825-DP?

• A record compactness that frees up space on your workstation without sacrificing power.
• The reliability of a brand recognized in the field of professional radio accessories.
• A precise digital display that advantageously replaces old needle galvanometers.
• An intelligent electronic protection that automatically resets after correcting a fault.
