Power supply NISSEI-NS-1230M 13.8V 30A adjustable from 4 to 16 volts

Read the 2 reviews

Average rating: 5/5 Number of reviews: 2

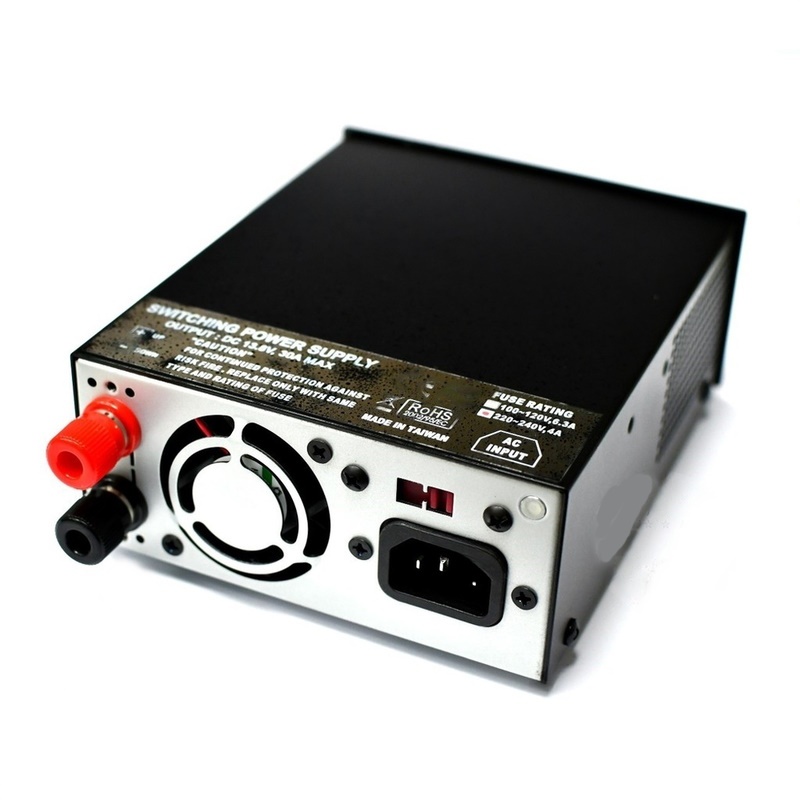

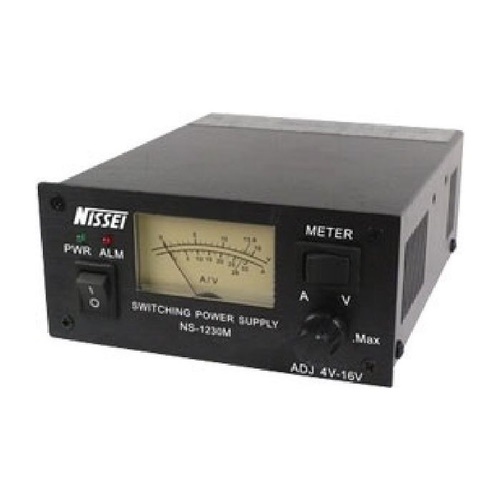

Compact switch mode power supply with digital display NISSEI NS-1230M, 13.8 V (adjustable from 4 to 16 volts), 30 A Max, heavy duty terminals on the rear panel.

Short circuit and overvoltage protection. Rugged metal housing, LED backlight.

AC input voltage: 110V or 220V +/- 10% (47 - 63 Hz)
Continuously adjustable output voltage: 4V - 16V or 13.8V fixed
Continuous amperes: 25A (max.30A)
Heavy duty connection terminals
Dimension : 15,4 x 12,7 x 6,3 cm
Weight : 1,35 kg
CE certified, 2 years warranty

Delivered with : 1 Nissei NS-1230M switch mode power supply, with 220V EU plug.

Download

Manuel NISSEI-NS-1230M (EN)

620.46k

Manuel NISSEI-NS-1230M (FR)

279.72k

Customers also bought
- 5,42 €
  Reference: ADAPT-UHF-F-UHF-F-294
  UHF Female Adapter
  RF adapter for UHF Female to UHF Female connector (PL-259). Impedance 50 ohms.
  5,42 €
- 8,25 €
  Reference: CABLE-COAXIAL-UHF-M-1M-876
  Low-loss coaxial cable extension UHF Male (PL-259) KSR195
  UHF Male - UHF Male coaxial cable extension with KSR195 low-loss 50 ohm coaxial cable for use from 0 to 6 GHz. Available lengths: 50cm, 1, 2, 3, 5 or 10, 15 and 20 metresConnector 1: UHF Male
  8,25 €
- 41,58 €
  Reference: MESSI-JUMPER-M-HYF10-1UM-1146_6
  Extension coaxial M&P 10.3mm HYPERFLEX 10 cable with UHF-Male (PL-259)
  This coaxial cable extension is ready to use, with UHF Male connector (PL-259) Messi & Paoloni, with a diameter of 10.3mm with M&P HYPERFLEX 10 cable, flexible and offering excellent
  41,58 €
  41,58 €
- 64,04 € 66,02 € tax excl. -3%tax excl. In stock
  -3%
  Reference: M0CVO-HW40HP-1874
  HW-40HP M0CVO dipole HF multiband antenna 80/60/40/20/15/10m and 6m 400W
  The M0CVO HW-40HP is a dipole antenna that incorporates the M0CVO 4:1 balun at the feed point, allowing direct feeding with 50 ohm coaxial cable. The M0CVO HW-40HP is just 20.28m long, and can be
  64,04 €
  66,02 €
  Reduced price!
We also recommend
- 76,79 € 79,17 € tax excl. -3%tax excl. In stock
  -3%
  Reference: NISSEI-RS50-702
  Nissei RS-50 SWR 125-525Mhz Wattmeter 120W
  This SWR / Wattmeter Nissei RS-50 is a digital backlit display, it allows the measurement of the SWR for VHF-UHF frequencies from 125 to 525Mhz, and the measurement of output power up to 120W. The SWR
  76,79 €
  79,17 €
  Reduced price!
- 76,79 € 79,17 € tax excl. -3%tax excl. In stock
  -3%
  Reference: NISSEI-RS70-703
  Nissei RS-70 SWR 1.6-60 MHz Wattmeter 200W
  This SWR / Wattmeter Nissei RS-70 is a digital backlit display, it allows the measurement of the SWR for VHF-UHF frequencies from 1.6 to 60 MHz, and the measurement of output power up to 200W. The SWR
  76,79 €
  79,17 €
  Reduced price!
- 132,83 € 145,83 € tax excl. In stock
  -13,00 €
  Reference: NISSEI-DG503-704
  Nissei DG-503 SWR 1.6-60 MHz & 125-525Mhz Wattmeter 200W
  This SWR / Wattmeter Nissei DG-503 have a digital backlit display and allows the measurement of SWR for HF frequencies from 1.6 to 60 MHz and VHF-UHF from 125 to 525Mhz, as well as the measurement of
  132,83 €
  145,83 €
  Reduced price!
- 136,61 € 140,83 € tax excl. -3%tax excl. In stock
  -3%
  Reference: NISSEI-NS-1230D-710
  Power-Pole power supply NISSEI-NS-1230D 30A
  Compact digital switching power supply NISSEI NS-1230D, 13.8V (or adjustable from 4 to 16 volts), 30A Max., with Power-Pole connector on the rear panel and heavy-duty connection terminals on the
  136,61 €
  140,83 €
  Reduced price!

Reviews

Click here to leave a review

Sue

2024-07-06

Small and quiet

The power supply works fine. It also arrived in about 3 days. One thing I think could be improved is that it should have a switch for 13.8v. The dial is sort of easy to bump, and that might damage the equipment running on it. It is small, though, and does not make any noise on the tranceiver. I am very happy with it!

f1snb

2024-05-28

bien reçu

parfait
