Signalink-8PM pack for Xiegu 8-pin mini-din DATA socket View larger
Tigertronics

SIGNALINK-PACK-SLUSB8PM-1514

New product

U.S.A

Signalink-SLUSB-8PM pack for Xiegu 8-pin mini-din DATA socket

rating No review at the moment

The Signalink-SLUSB-8PM interface pack is compatible with Xiegu radios equipped with an 8-pin mini-DIN data port (DATA socket): G-90, X-5105

  • Low noise USB sound card
  • Quick and easy installation with the jumper
  • RX and TX setting from the front panel
  • Support ALL digital and digital modes such as SSTV, RTTY, Packet, PSK, ROS, FT8, FT4, JS8, ACARS, etc.
  • Complete RF isolation between computer and radio
  • Transmit Audio output and external speaker jack

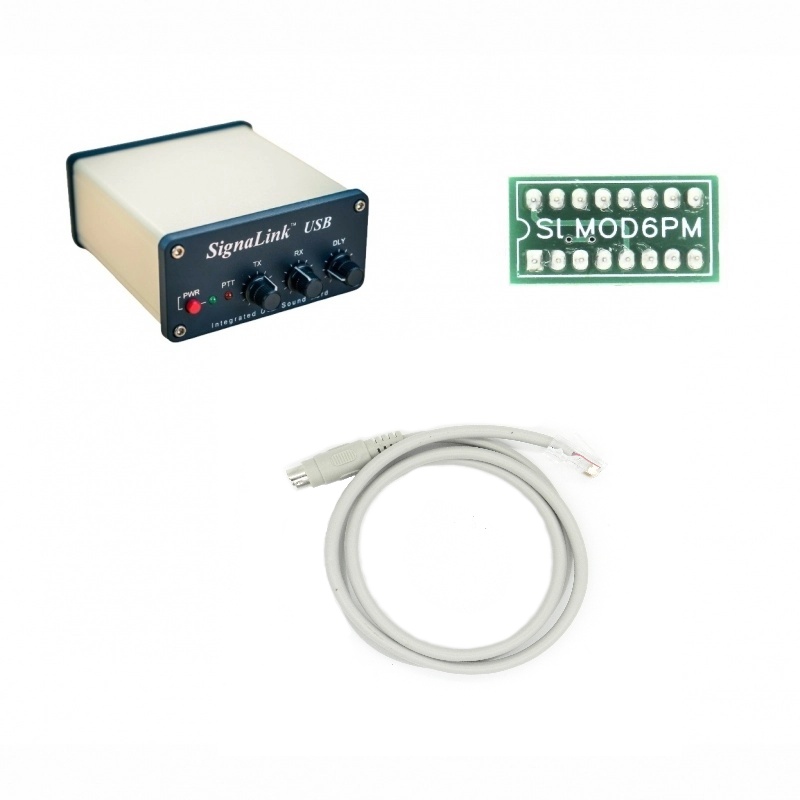

The pack includes: The Tigertronics Signalink USB interface, the SLCAB8PM cable to connect the radio to the interface and the SLMOD6PM jumper to be installed inside the box, 1 USB cable 2.5m, 1 mono jack cable, 6 pre-cut and stripped 24 AWG wires, 1 Allen key - 3/32 "size, rubber feet, 1 English manual.

Note: This interface does not allow frequency control (CAT control) on the radio station used, it allows switching to PTT and sending a signal to the radio station and receiving it, thanks to the USB peripherals created.

More details

149,63 € tax excl.

157,50 €

Instead of 152,63 €

In stock

   3 Items

Pack content

  • Tigertronics Signalink USB radio interface and sound card
    114,79 € 120,83 € tax excl. -5%tax excl. In stock

    -5%

    Reference: TIGER-SIGNALINK-BOITIER-1455

    1 x Signalink USB from Tigertronics Radio interface & sound card for digital modes

    The Signalink USB radio interface from Tigertronics is a USB sound card that allows you to receive and transmit from a computer to practice digital modes such as SSTV, RTTY, Packet, PSK, ROS, FT8,

    114,79 €

    120,83 €

    Reduced price!
  • Jumper Signalink SLMOD-6PM for Icom Yaesu Kenwood Mini DIN Data 6-pin
    10,21 € 10,75 € tax excl. -5%tax excl. In stock

    -5%

    Reference: SIGNALINK-JUMPER-SLMOD6PM-1479

    1 x Jumper Signalink SLMOD-6PM V2 for Icom Yaesu Kenwood Mini DIN Data 6-pin

    The Signalink SLMOD6PM V2 Jumper module is compatible for use with the Signalink USB sound card and with virtually all ICOM, Kenwood and Yaesu radios that have a 6-pin mini-DIN data port. This

    10,21 €

    10,75 €

    Reduced price!
  • Signalink SLUSB-8PM 8-pin Mini-DIN radio cable for Xiegu
    27,63 € 29,08 € tax excl. -5%tax excl. In stock

    -5%

    Reference: SIGNALINK-CABLE-SLCAB8PM-1500

    1 x Signalink SLCAB-8PM Mini-DIN 8-pin DATA radio cable for Xiegu

    The Signalink SLCAB8PM radio interface cable can be used with the Signalink USB sound card and with practically all Xiegu radios which have an 8-pin mini-DIN data port (DATA socket). This includes,

    27,63 €

    29,08 €

    Reduced price!

Download

Manual Signalink USB (FR)

French manual and user guide Signalink USB 1.48M

Manual Signalink USB (EN)

English manual and user guide Signalink USB. 745.98k

Support Signalink (EN)

Documentation, support and help in English, in case of problem of installation, configuration or use of the Signalink interface with the radio or the software. 1.63M

Support Signalink (FR)

Documentation, support and help for Signalink in French. 1.44M

Data sheet

  • Power supply: USB port compatible with USB 1.1 / 2.0 / 3.0, Male B connector
  • Consumption: ~ 140mA in transmission, ~ 80mA nominal
  • Operating temperature: -30 ° C to + 60 ° C
  • Audio frequency response: 200 Hz - 4000 Hz at 600 ohms
  • Sampling rate: 16 Bits, up to 48Khz
  • Operating System: Windows 98SE, ME, 2000, XP, Vista, Windows 7, 8.x and Windows 10
  • MAC OS 9.1, MAC OS X 10.00
  • Z radio input / output: 600 Ohm
  • Auto-PTT ™ delay: 30 ms to 3 seconds
  • PTT circuit: Relay, rated value - 1A @ 24VDC (max), 0.5A @ 120VAC (max)
  • Radio connection: Audio TX, Audio RX, PTT, GND and RJ-45 female
  • RX audio / speaker: 3.5mm mono jack mono
  • Housing: Extruded aluminum, powder coated
  • Dimensions: 40 x 81 x 91 mm
  • Weight: 187g

Compatible positions

This Signalink pack is compatible with the radios below and the European (E / DE), or American (R / DR) versions.

Xiegu

G-90

X-5105

The SignaLink USB supports virtually ALL digital modes that are available for sound card interfaces including but not limited to, PSK31, MT-63, WSJT/WSJT-X  modes (FT8, JT4, JT9, JT65, QRA64, ISCAT, MSK144, WSPR, JTMS, FSK441, FSK315, ISCAT, and JT6M.), SSTV, APRS ®, Packet (300 and 1200 baud), VARA HF, VARA Narrow, and VARA Wide.

The SignaLink USB also supports virtually ALL Voice modes (VOIP, RoIP, etc.), such as EchoLink®, and Zello.

About the only modes that you can't operate with the SignaLink USB, or any other sound card interface, are Pactor, G-TOR and Clover.
