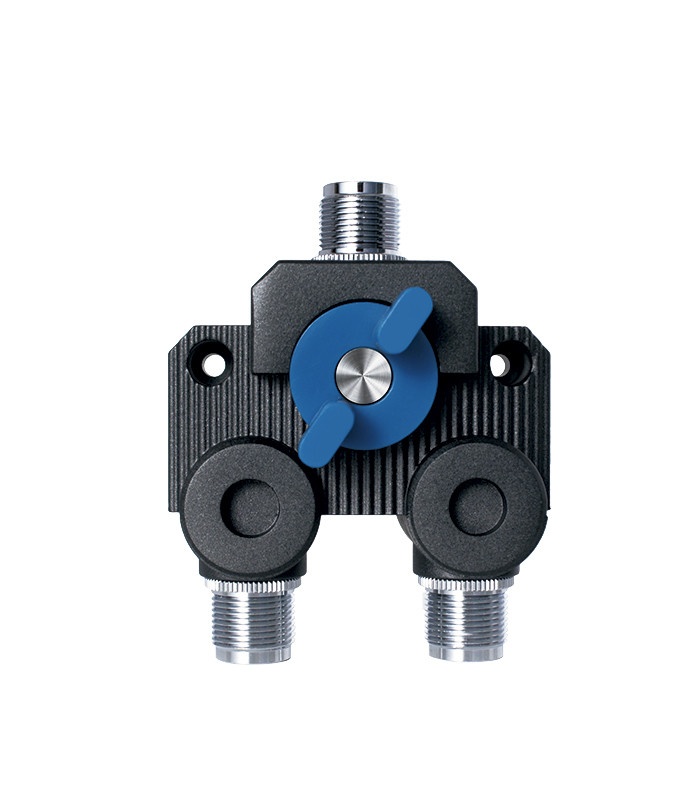

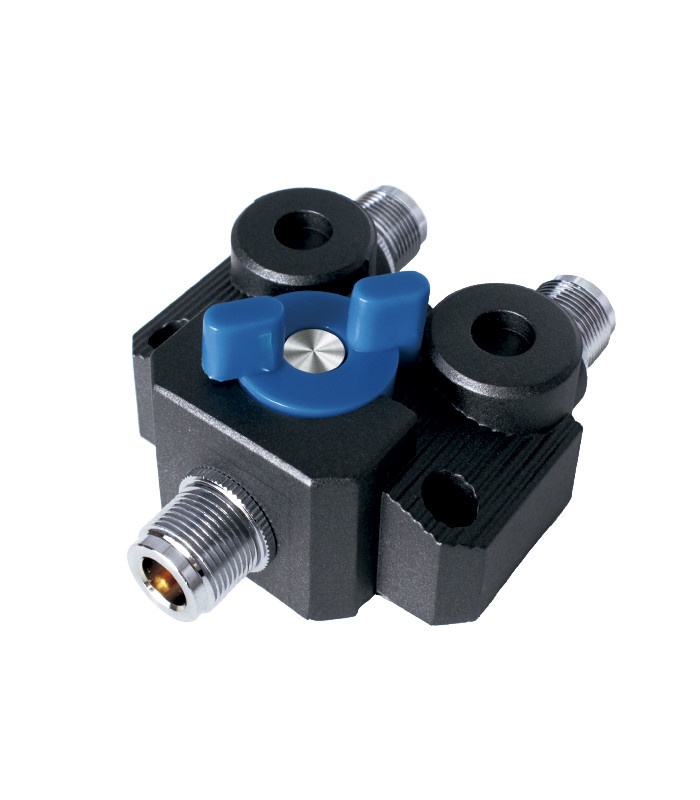

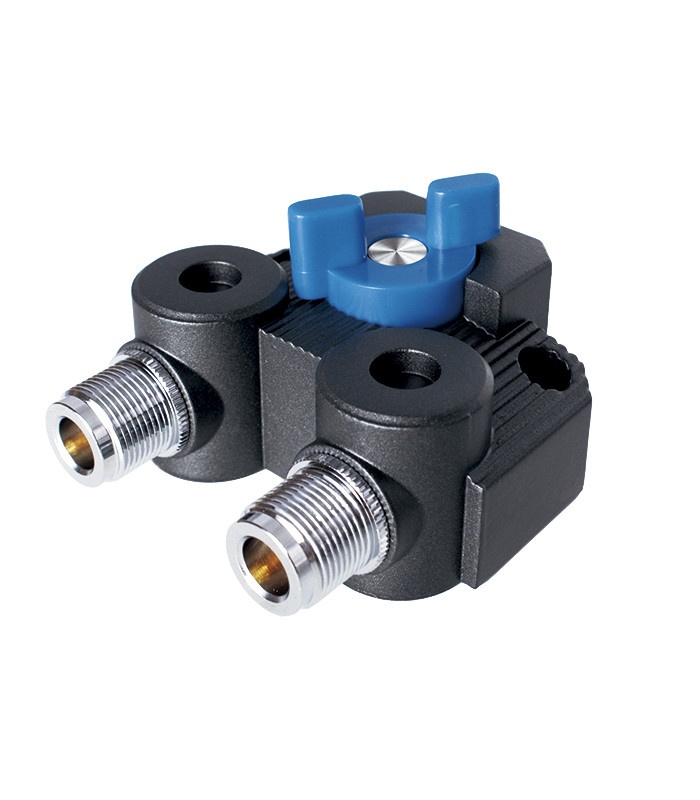

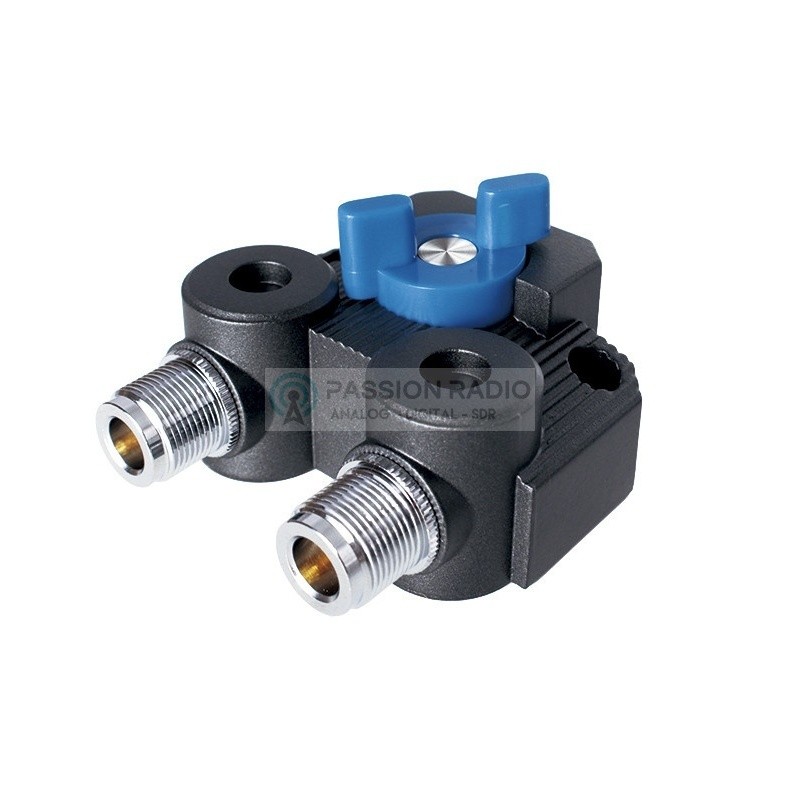

2 position antenna switch with N plug

No review at the moment

Demander un devis

Commutateur d'antenne 2 positions avec connecteur fiche N femelle.

Pour utilisation en fréquence de 0 à 3000 Mhz (3 Ghz).

More details

Data sheet

Frequency range

DC ~ 3 GHz

Maximum power

Dc ~ 30 MHz 2KW

30 MHz ~ 200 MHz 1KW

200 MHz to 500 MHz 500 W

500 MHz to 1 GHz 250 W

1 GHz to 3 GHz 150 W

Insertion loss

Dc ~ 500 MHz <= 0.05 dB

500MH ~ 1 GHz <= 0.10 dB

1 GHz to 2 GHz <= 0.15 dB

2 GHz to 3 GHz <= 0.20 dB

Input Isolation

Dc ~ 500 MHz> = 70 dB

500MH ~ 1 GHz> = 60 dB

1 GHz to 2 GHz> = 55 dB

2 GHz to 3 GHz> = 50 dB

VSWR

Dc ~ 500 MHz <= 1.10

500MH ~ 1 GHz <= 1.15

1 GHz to 2 GHz <= 1.20

2 GHz to 3 GHz <= 1.25

Connectors

Input 1: N female

Output 2: N female
