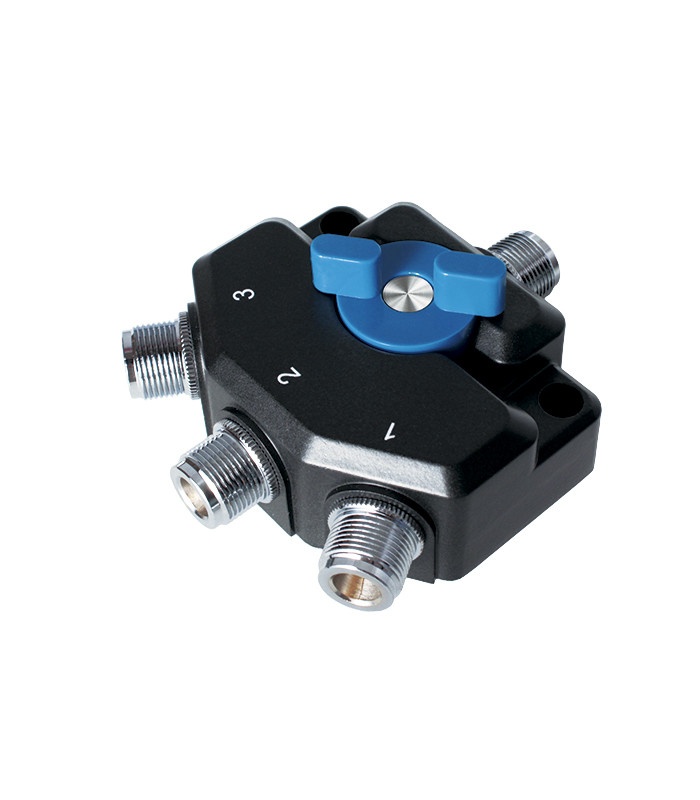

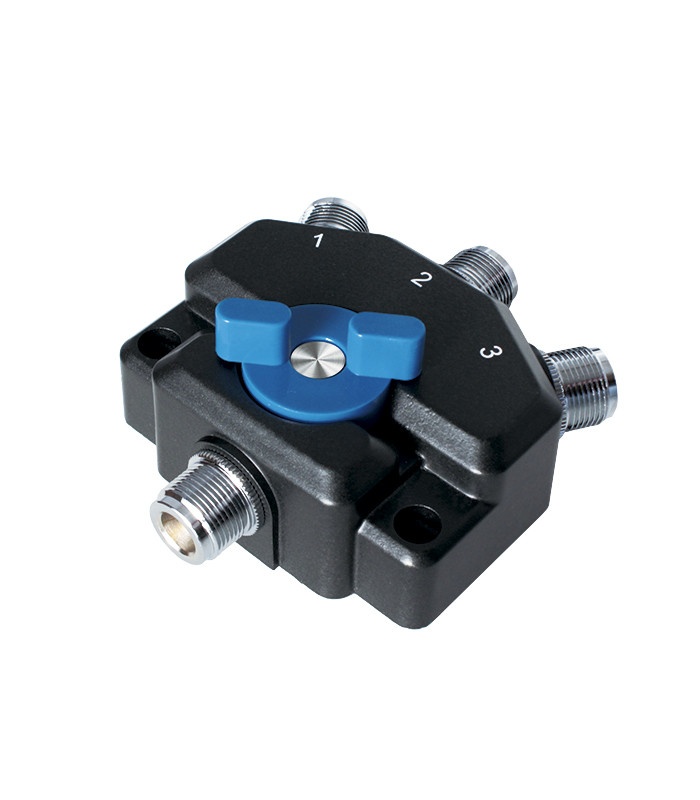

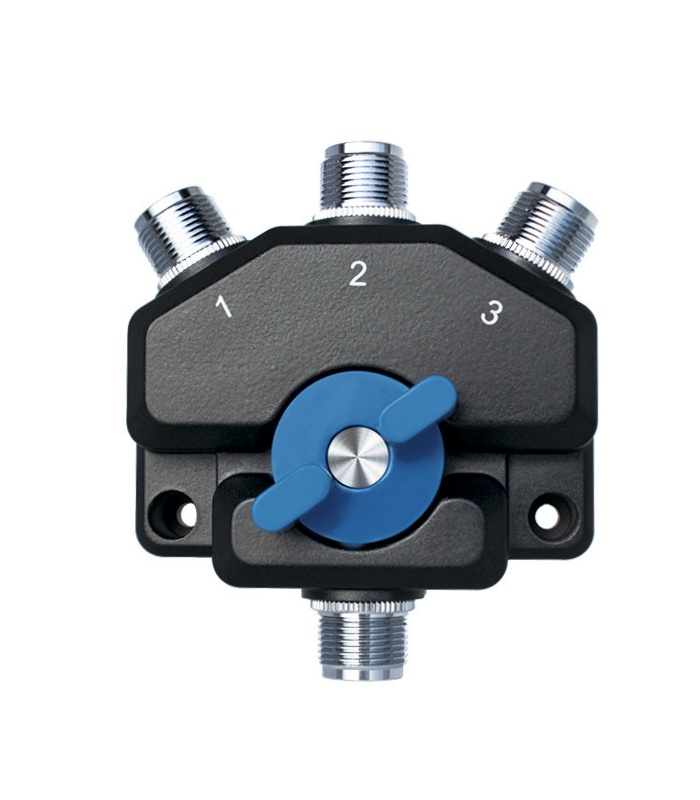

Coaxial antenna switch 3 positions N plug

3 position coaxial antenna switch with N female connector.

For use in frequency from 0 to 1500 Mhz.

More details

Data sheet

Frequency Range:

DC~1.5GHz

Power Range:

Dc~30MHz 1.5KW

30MHz~200MHz 1KW

200MHz~500MHz 500W

500MHz~1GHz 250W

1GHz~3GHz 150W

Insertion Loss:

Dc~500MHz <=0.05dB

500MH~1GHz <=0.10dB

1GHz~2GHz <=0.15dB

2GHz~3GHz <=0.20dB

Output Port 1/2 Isolation:

Dc~500MHz >=70dB

500MH~1GHz >=60dB

1GHz~2GHz >=55dB

2GHz~3GHz >=50dB

VSWR:

Dc~500MHz <=1.10

500MH~1GHz <=1.15

1GHz~2GHz <=1.20

2GHz~3GHz <=1.25

Connector Type:

Input Port 1 "N" Female

Output Port 3 "N" Female
