> RF Measuring Instruments>SWR-Power meter>CQV-SWR12 HF 1.8 to 54 MHz 120W VSWR power meter on USB-C battery
Reduced price!

-3%

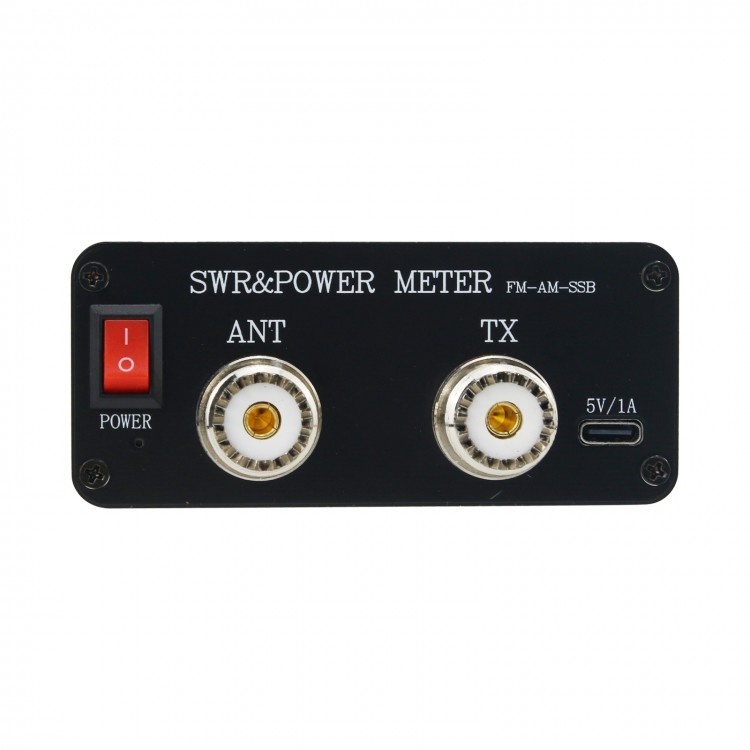

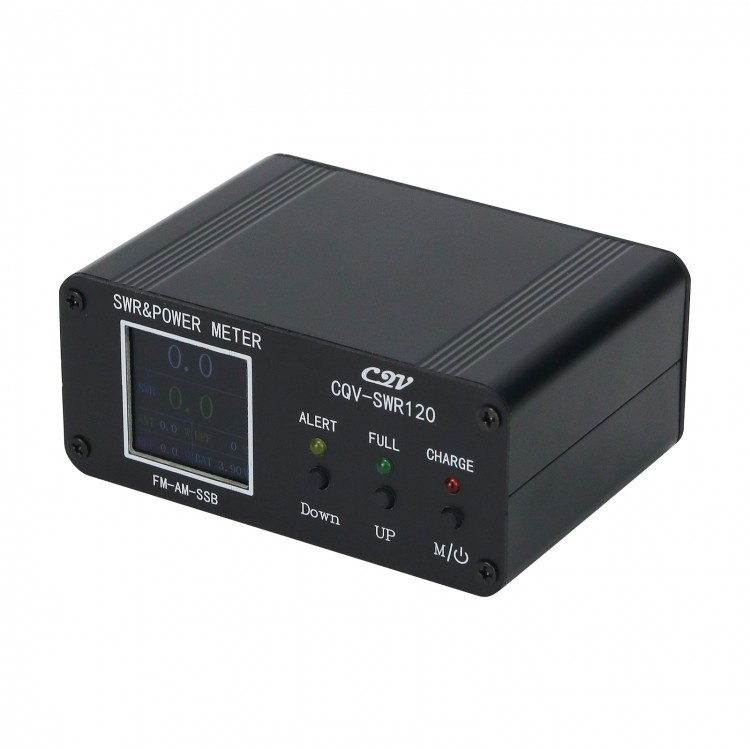

CQV-SWR12 HF 1.8 to 54 MHz 120W VSWR power meter on USB-C battery View larger
Previous Next

RF KONNECT

RFKONNECT-CQV-79T480-2243

New product

China

CQV-SWR12 HF 1.8 to 54 MHz 120W VSWR power meter on USB-C battery

rating Read the 2 reviews
Average rating: 3/5 Number of reviews: 2

The CQV-SWR120 digital power standing wavemeter is small and portable with a full-color LCD display that directly displays forward power, reflected power, antenna power, antenna efficiency, standing waves, and battery voltage.

With the high-rise waves alarm feature. Delayed power-off feature. automatic power-on feature for transmission. and battery undervoltage protections feature. LED light dual indicator function. Power fine-tuning functions. standing waves fine-tuning functions.

  • Operating frequency: 1.8-54Mhz
  • Measurement ranges: 0.5-120W (SSB mode up to 200W. over 200W buzzer alarm)
  • Standing waves ranges: 1-99.9 (default greater than 2.0 alarm. you can manually set the alarm point)
  • Charging interface: Type-C. 5V/1A
  • Battery: 1 x 3.7V. 1000mAh (built-in. battery voltage below 3.4V buzzer beeping to prompt charging. below 3.35V automatic shutdown)
  • Interface type: UHF Female (SO-239)
  • Size: 88 x 63 x 38mm

More details

72,75 € tax excl.

75,00 €

In stock

   8 Items

Data sheet

- 120W digital power standing wavemeter with forward and reflected power standing waves and multiple parameters direct reading function.

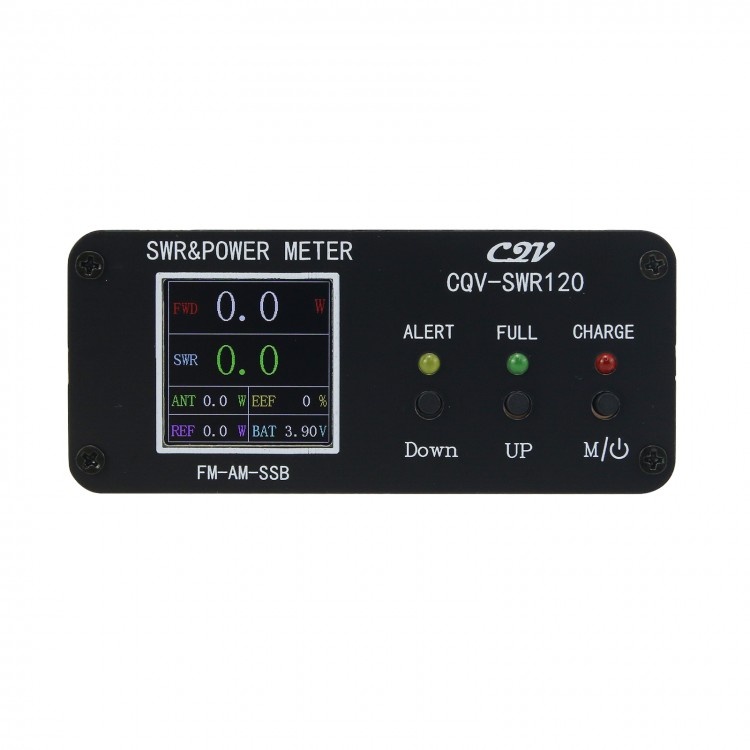

- 240 x 240 full-color LCD display. you can see the forward power. reflected power. antenna power. VSWR. battery voltage. and antenna efficiency clearly.
- It comes with a standing waves alarm feature and a buzzer-like one-button on/off feature.
- Delayed power-off function. automatic power-on function for transmitting. and battery undervoltage protections function.
- LED light double indication function.
- Power fine-tuning feature. standing waves fine-tuning feature for amateur DIY use.
- One-button switch function for Chinese and English menus. easy to accommodate your usage and reading preferences.
- One-button switch function for multiple display interfaces. Customized standing waves alarm setting function.
- Customized shutdown delay time setting function.
