Komunica SX-601 power meter and telemeter 1.8-160 Mhz / 140-525 MHz View larger

Komunica

KOMUNICA-SX601-1664

New product

Spain

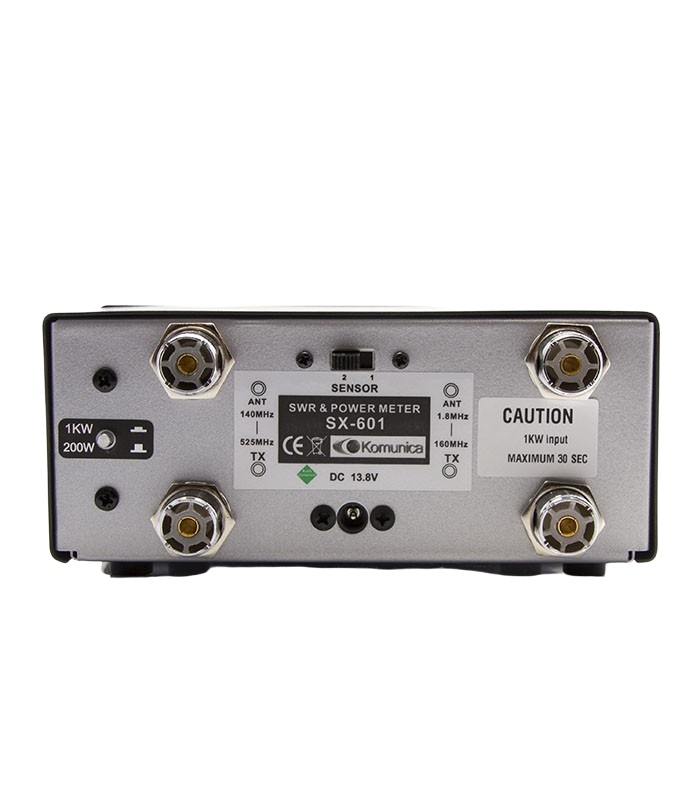

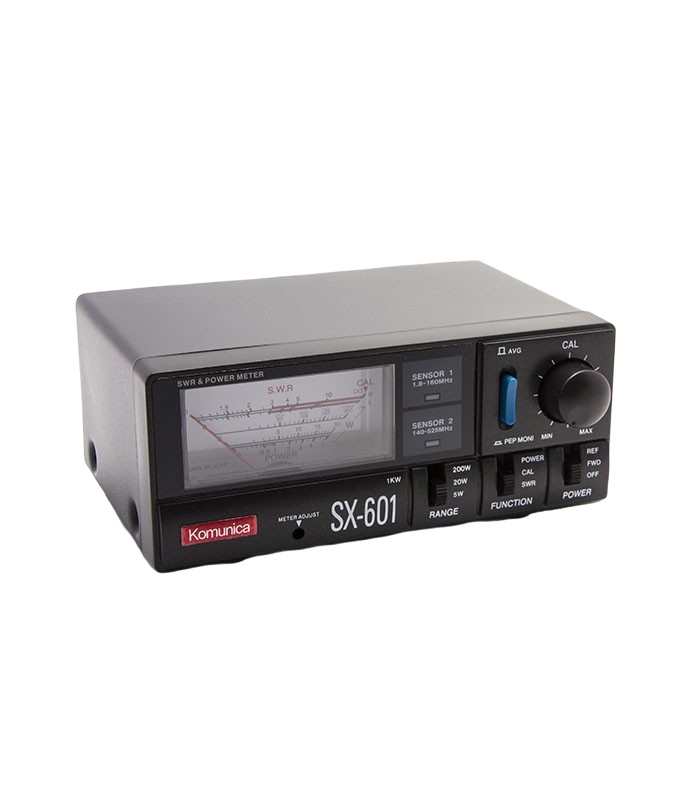

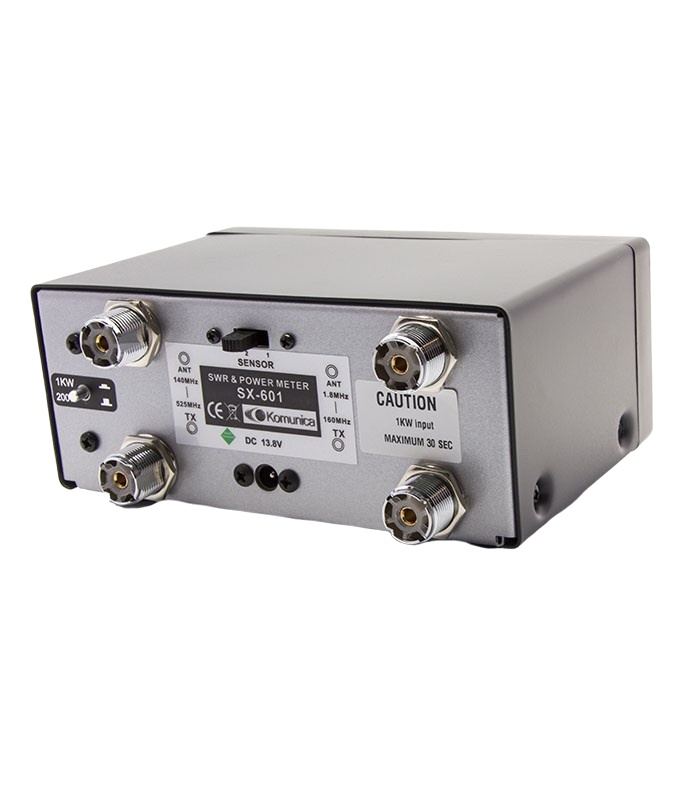

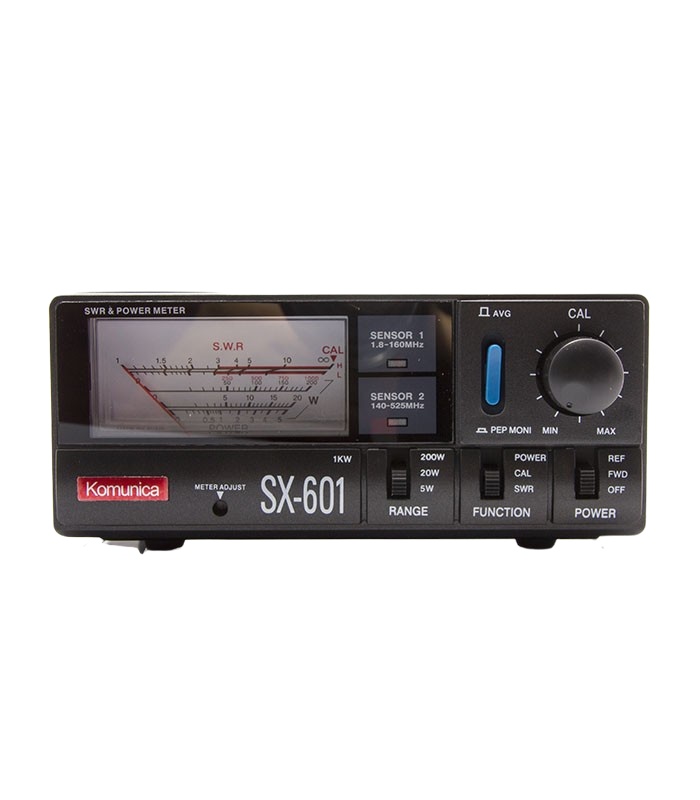

Komunica SX-601 1.8-160 Mhz and 140-525 MHz 200W power meter

rating No review at the moment

The Komunica SX-601 VSWR meter allows the measurement of SWR for the frequencies 1.8-160 Mhz / 140-525 MHz with a power up to 200 Watts.

Supplied with: 1 SX-601, 1 power cable.

More details

129,00 € tax incl.

107,50 €

tax excl.

Out of stock, available within 1 to 2 months

Data sheet

  • Frequency range: 1.8 - 160 Mhz / 140 - 525 MHZ
  • Power measurement range: 0.5 to 400W (5W/20W/200W/1KW) HF band 0.5~400W (5W/20W/200W) UHF band
  • Minimum input power: 0.5W
  • Accuracy: 5W range ±5%, 20W range ±7.5%, 200W range ±10%, 400W range ±12.5%, 1KW range ±15%.
  • Input impedance: 50 ohms
  • Input loss: 0.2db
  • Connector : SO239 (UHF female)
  • Dimensions : 15 X 6,5 X 10 cm
  • Weight : 720 gr
  • SWR : 1 to infinity
  • Power supply : 12V DC
