> Radio Antennas>Mounting bracket>Tuners>mAT-600A Universal HF Automatic Tuner 1.8-54 MHz 600W
New
mAT-600A Universal HF Automatic Tuner 1.8-54 MHz 600W View larger
mAT-600A Universal HF Automatic Tuner 1.8-54 MHz 600W
Previous
  • mAT-600A Universal HF Automatic Tuner 1.8-54 MHz 600W
  • mAT-600A Universal HF Automatic Tuner 1.8-54 MHz 600W
  • mAT-600A Universal HF Automatic Tuner 1.8-54 MHz 600W
  • mAT-600A Universal HF Automatic Tuner 1.8-54 MHz 600W
  • mAT-600A Universal HF Automatic Tuner 1.8-54 MHz 600W
  • mAT-600A Universal HF Automatic Tuner 1.8-54 MHz 600W
  • mAT-600A Universal HF Automatic Tuner 1.8-54 MHz 600W
Next

MAT-TUNER

MATTUNER-MAT-600A-3112

New product

China

Safety Information +

mAT-600A Universal HF Automatic Tuner 1.8-54 MHz 600W

rating No review at the moment

The mAT-600A is a high-power universal automatic antenna tuner, designed to work with almost all transceivers and linear amplifiers on the market. Capable of supporting up to 600 Watts (SSB), it covers HF bands from 1.8 to 54 MHz with exceptional tuning speed thanks to its 16,000 memories.

  • Frequency Range: 1.8 to 54 MHz (HF + 6m)
  • Permissible Power: Max 600W (SSB)
  • Universal Compatibility: Works with all types of transceivers
  • Tuning Speed: < 100ms (memory) to 8s (full scan)
  • Memories: 16,000 frequency channels
  • Robust Construction: All-aluminum casing and CNC machined front panel

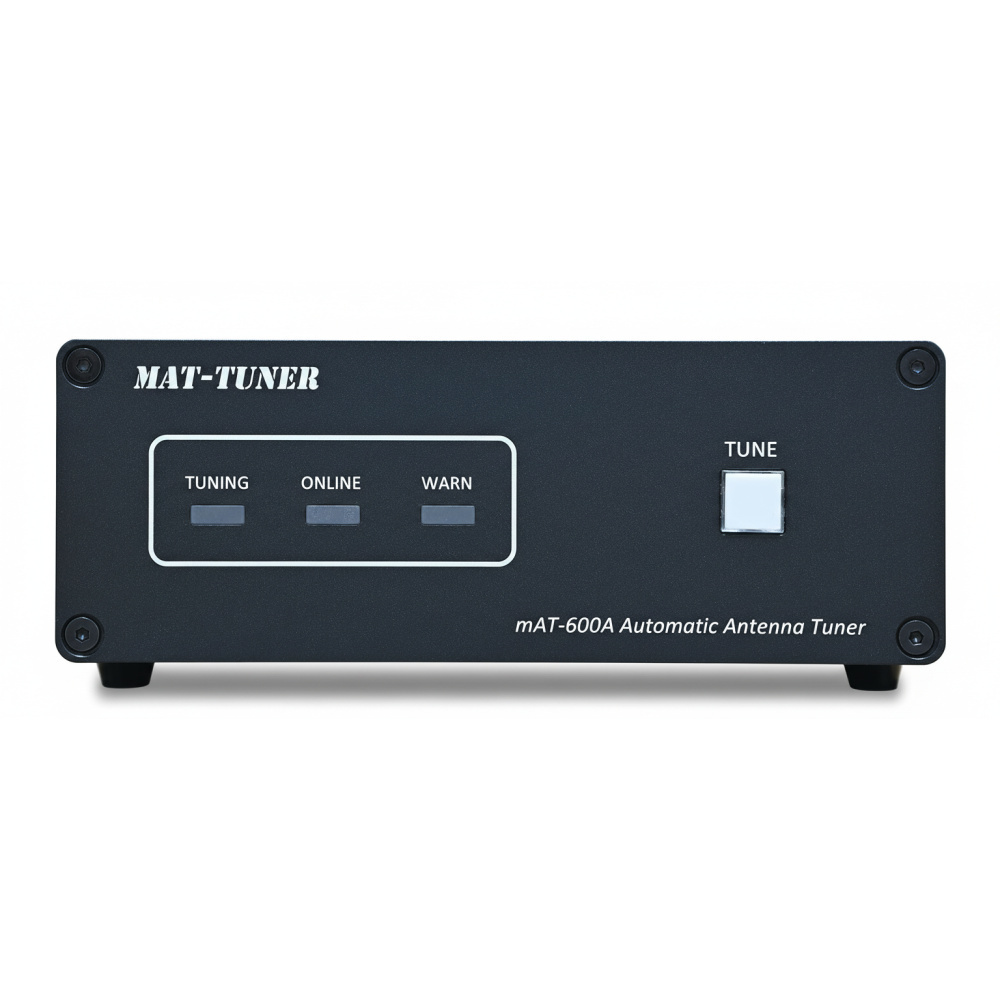

  • Simplified Use: Single button for tuning (TUNE)
  • LED Indicators: Tuning Status, Online/Bypass, and Power Alert

Comes with: 1x mAT-600A Tuner, 1x DC power cable (5.5mm connector).

More details

448,78 € tax excl.

In stock

   2 Items

Estimate shipping costs by clicking on "Add to cart", then enter only your country and zip code on the cart page.

Data sheet

The mAT-600A from mAT-TUNER is the ideal solution for amateur radio operators looking for a robust and powerful automatic tuning unit, capable of handling intermediate power levels up to 600W SSB. Unlike tuners dedicated to a specific brand, the mAT-600A is universal: it does not require a specific data control cable. It simply connects to the coaxial line and detects RF to tune.

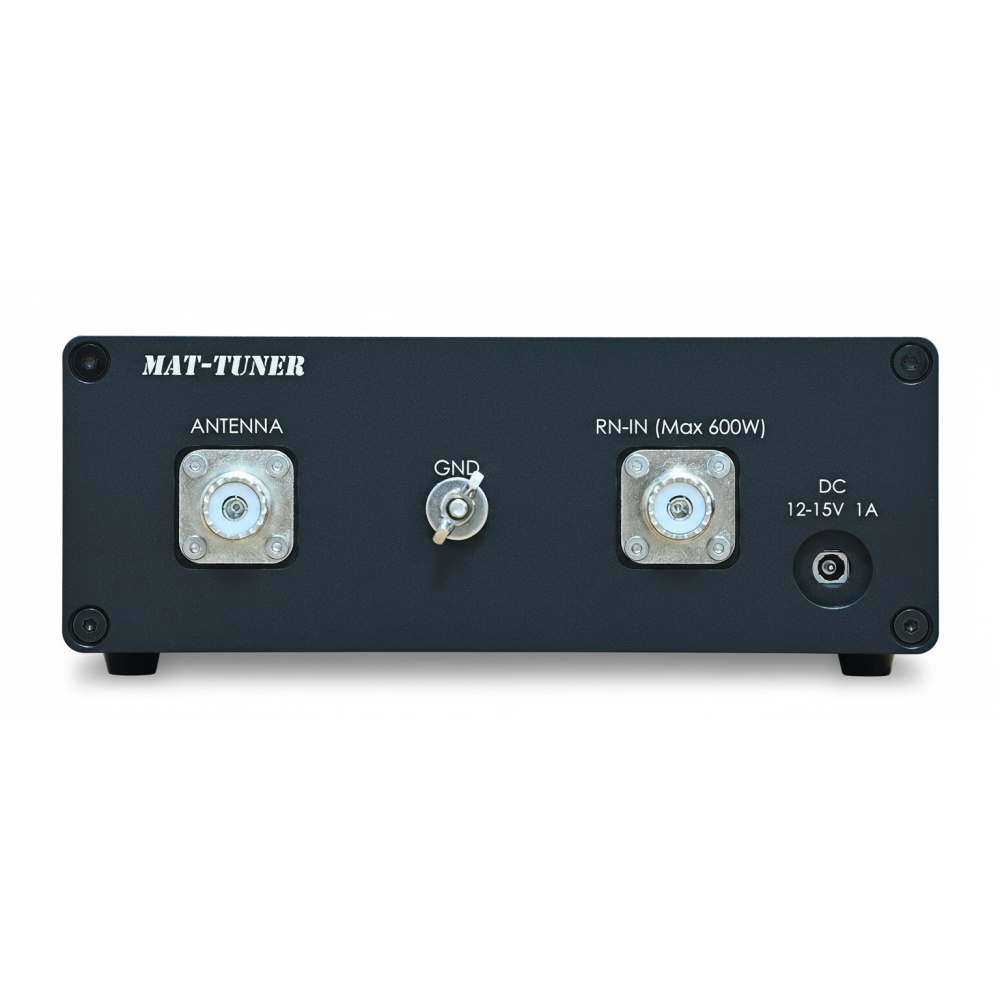

Its installation is simple: connect your transmitter (or the output of your linear amplifier) to the RF-IN input, and your antenna to the ANTENNA output. Power it with 12V, and it's ready to use. To start a tuning cycle, simply send a low-power carrier (5-15W) and press the TUNE button on the front panel.

Technical Specifications

Frequency Range1.8 MHz - 54 MHz
Max Power (SSB)600 Watts
Required Tuning Power5 to 15 Watts (do not exceed for tuning)
Tuning Time0.1 sec (memory) / Max 8 sec (full scan)
Number of Memories16,000 channels
Input Impedance50 Ohms
Antenna Connectors2x SO-239 (UHF Female)
Power SupplyDC 12-14V, 1.0A (5.5 x 2.1mm Connector)
Dimensions192 x 205 x 76 mm
Weight1.9 Kg (Net)
MaterialsAluminum Casing, CNC Machined Front Panel
Operating Temperature-10°C to +60°C

FAQ

How to start tuning with the mAT-600A?

Reduce your transmitter's power to between 5 and 15 Watts, switch to FM or CW mode (continuous carrier), then press the TUNE button on the tuner's front panel. Once tuning is found (Tuning LED off), you can increase your power up to 600W SSB.

Is this tuner compatible with my linear amplifier?

Yes, the mAT-600A is designed to be placed after a linear amplifier, as long as the power does not exceed 600W SSB. Always ensure to tune with the amplifier in Standby (Bypass) mode or at low power before activating amplification.

What is the 'WARN' LED for?

The WARN LED lights up only during the tuning cycle if the injected RF power is too low or too high to allow correct tuning. Adjust your power between 5 and 15W if it lights up.

Does the mAT-600A require a radio interface control cable?

No, it's a universal tuner. It does not use Icom, Yaesu, or Kenwood control cables. It operates autonomously by detecting RF and via manual action on the TUNE button.

Can this tuner be used outdoors?

No, the mAT-600A is designed for fixed indoor station use (shack). It is not waterproof.
