> Radio Antennas>VHF-UHF>Vertical 144-430MHz>Diamond CP-22E VHF base relay antenna 144-148MHz 2.7m 6.5 dB 2x5/8

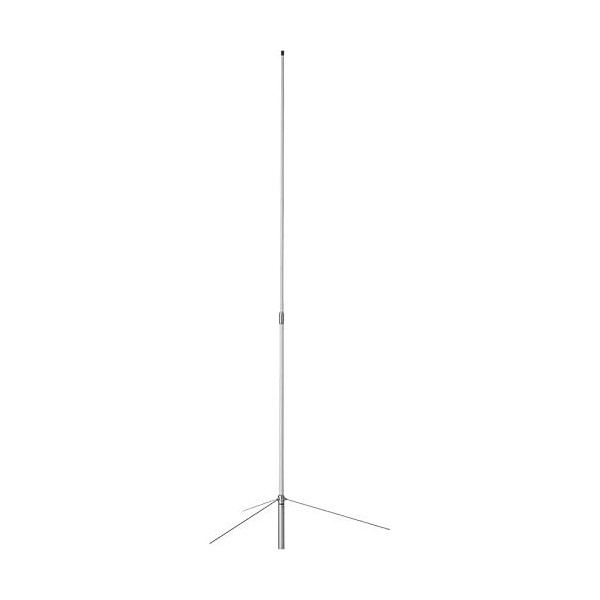

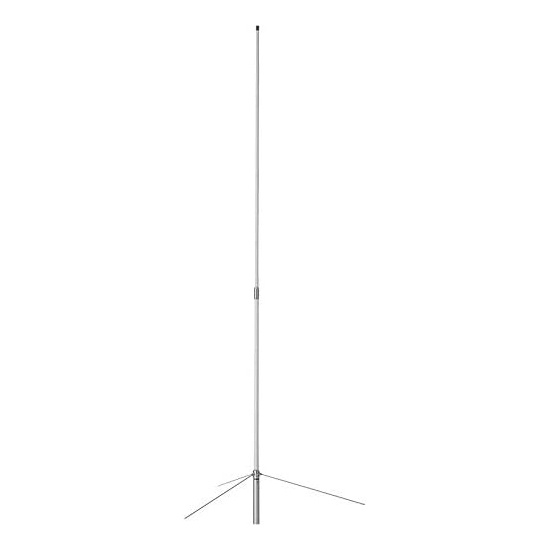

New Diamond CP-22E VHF base relay antenna 144-148MHz 2.7m 6.5 dB View larger
Diamond Antenna

DIAMOND-CP-22E-3081

New product

Japan

Safety Information +

Diamond CP-22E VHF base relay antenna 144-148MHz 2.7m 6.5 dB 2x5/8

rating No review at the moment

Diamond CP-22E fixed VHF antenna in aluminium with radials, vertical 2×5/8 λ for the 2m band from 144 to 148 MHz, has high gain 6.5dB, ideal for base station or 2m amateur radio relay.

  • High gain 6.5dB to optimise 144-148 MHz coverage
  • 2×5/8 λ (collinear) design: low lobe for local DX and relay traffic
  • Power handling 200 W, typical VSWR ≤ 1.5:1
  • Robust materials: aluminium components + stainless steel radials/fasteners
  • Simple mounting, mast clamp supplied (Ø 30-62 mm)

Supplied with: 1x Diamond CP-22E antenna in aluminium sections, 3 radials, mast clamp and screws, assembly manual.

Delivery info: This antenna is considered a large parcel and carriers apply an extra charge for shipping. Package height 140cm.

More details

73,05 € tax excl.

Out of stock, available in 2 to 3 months

Estimate shipping costs by clicking on "Add to cart", then enter only your country and zip code on the cart page.

Download

Notice CP22E

1.25M

Data sheet

  • Band / frequency: 2 m, 144-148 MHz (optimised for amateur radio band)
  • Type: vertical omnidirectional collinear 2×5/8 λ (ground-plane)
  • Gain: 6.5 dB
  • Polarisation: vertical
  • Impedance: 50 Ω
  • VSWR: ≤ 1.5:1 typical
  • Max power: 200 W
  • Length: 2.71 m (8.9 ft)
  • Wind resistance: ~ 112 km/h
  • Connector: UHF female (SO-239)
  • Grounding: DC-Ground (element and radials connected to mast)
  • Materials: aluminium elements, radials and stainless steel screws
  • Mast mounting: collar supplied, mast diameter 30-62 mm
  • Weight: ≈ 1.1 kg
  • Settings: factory preset, no adjustments required
  • Usage: 2 m VHF base station/repeater
