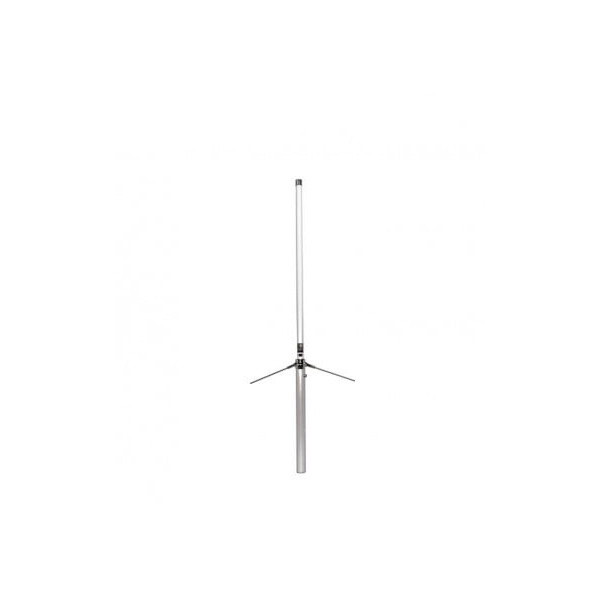

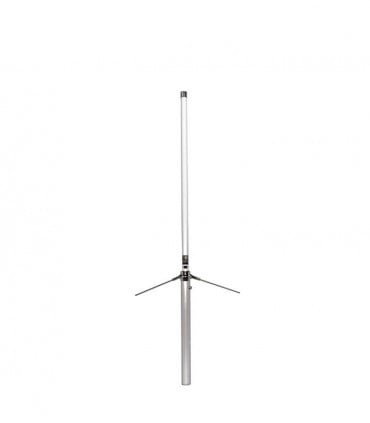

Komunica PWR-X-30-N VHF-UHF 144/430MHz 1.3m 150W N Connector Base Antenna

The Komunica PWR-X-30-N antenna is the ideal solution for amateur radio base stations requiring a high-performance but discreet antenna. With its height of 1.3 meters, it offers an excellent compromise between size and gain, allowing for stable connections on local relays as well as in simplex.

Key Features

• Compact 1.3m format ideal for discreet installation or on a balcony.
• Dual band VHF/UHF with a significant gain of 5.5 dBi in UHF.
• N-type connector, essential for reducing high-frequency signal losses.
• Durable fiberglass materials for maximum longevity against wind and corrosion.
• High power capacity up to 150W, compatible with most modern transceivers.
• Excellent reception capacity on the 300MHz band.

Technical Specifications

• Type: Vertical fiberglass antenna
• Frequencies: 144-146 MHz / 430-440 MHz
• VHF Gain: 3.0 dBi
• UHF Gain: 5.5 dBi
• Maximum power: 150 Watts FM
• Impedance: 50 Ohms
• SWR: Less than 1.5:1
• Length: 1300 mm (1.3 meter)
• Connector type: N-Female
• Weight: Approximately 0.8 kg

Compatibility

• VHF/UHF amateur radio transceivers (Icom, Kenwood, Yaesu, AnyTone, CRT, etc.).
• Possible use in reception (SDR, scanners) on the 300MHz band.

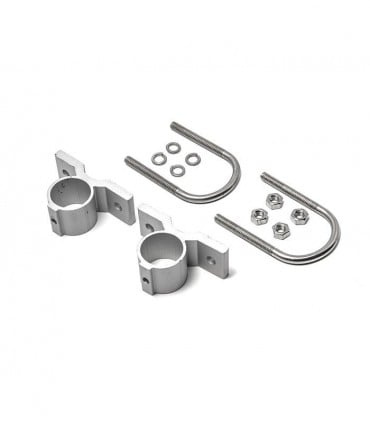

• Installation on standard diameter mast (30mm to 60mm) using the supplied brackets.
• Compatible with coaxial cables equipped with N-Male plugs.

FAQ

Why choose the Komunica PWR-X-30-N?

• Professional manufacturing quality signed by Komunica Power.
• An exceptional gain/size ratio for small spaces.
• High-end N connectivity for optimal radio performance.
• Simple and quick installation without complex tools.
