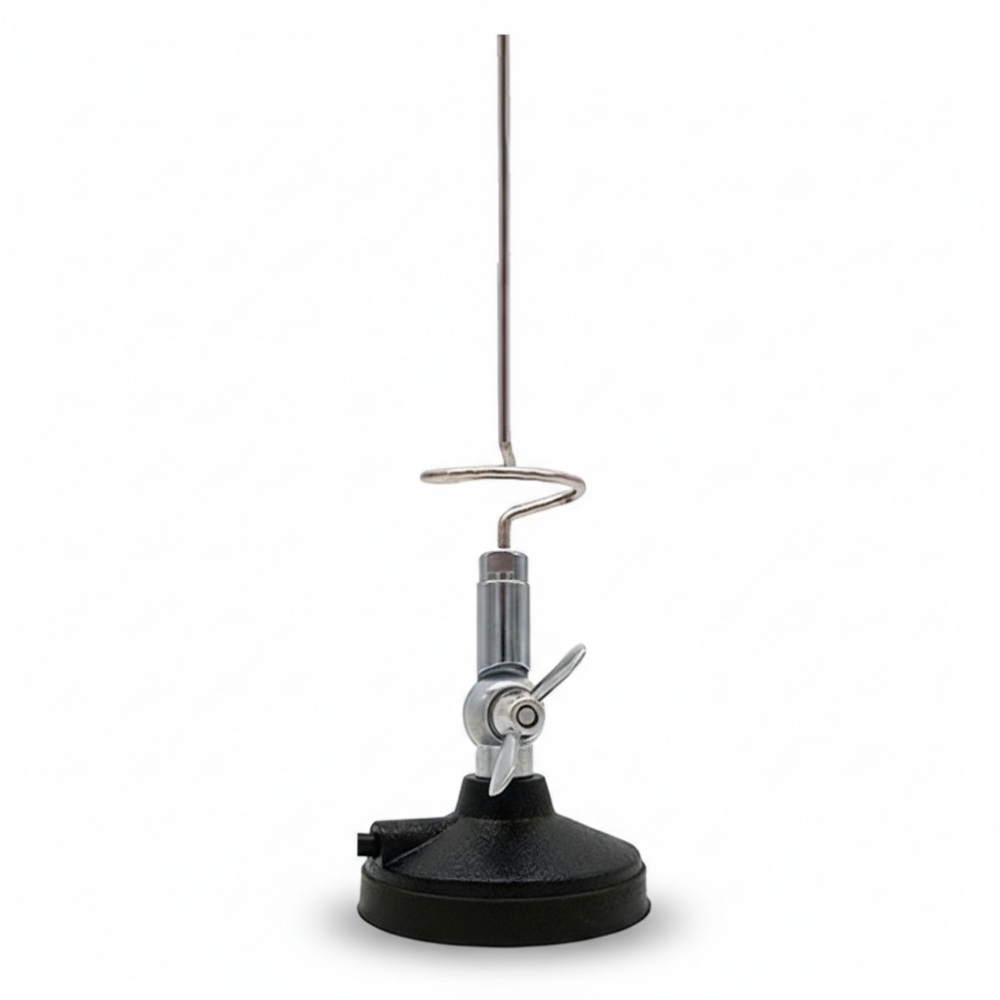

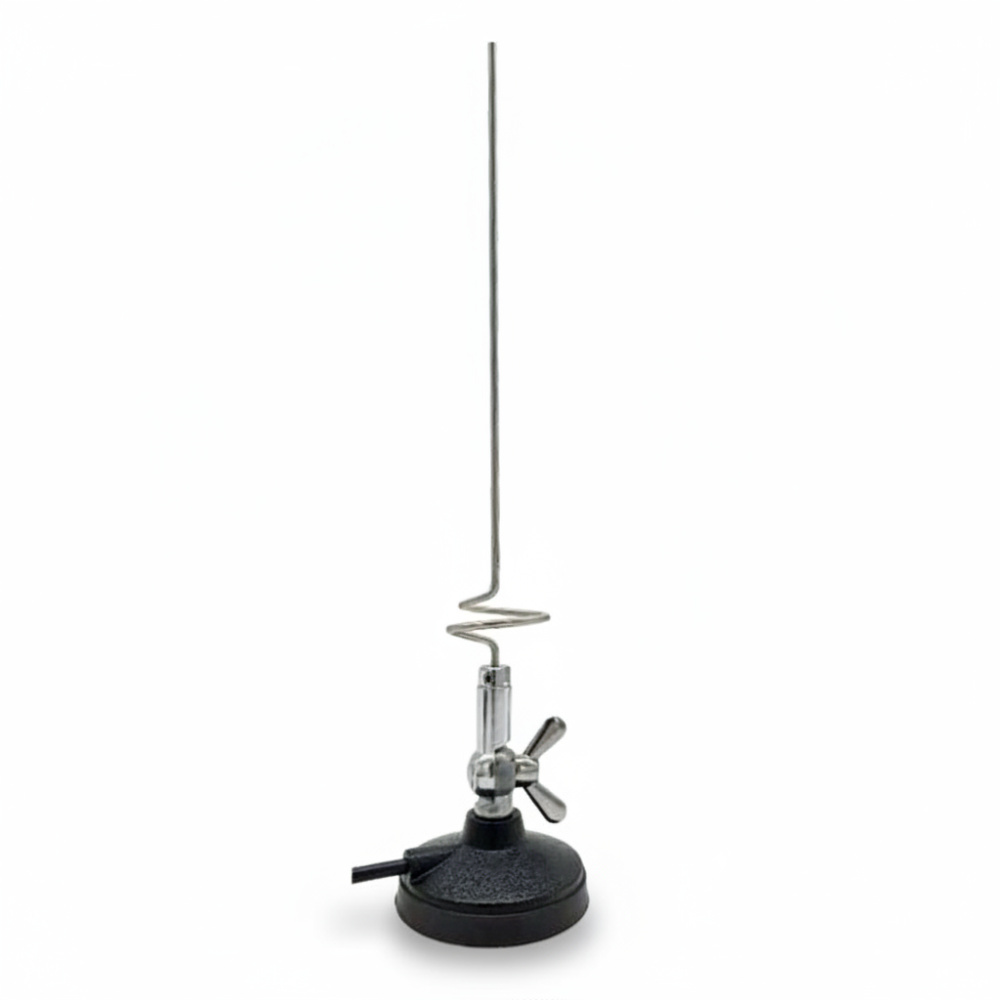

Sirio SU3 350-550 MAG60 – 5/8 λ UHF Mobile Antenna Adjustable 350-550 MHz Magnetic Base
No review at the momentThe Sirio SU3 350-550 MAG60 is a 5/8 wave UHF mobile antenna designed to offer great flexibility of use thanks to its wide adjustable bandwidth. Ideal for temporary or quick vehicle installations, it covers an extended frequency range from 350 to 550 MHz, making it compatible with many professional and amateur applications (PMR, 70cm Amateur Radio, LoRa 433 MHz).
- Type: 5/8 λ UHF mobile antenna
- Adjustable frequency: 350 to 550 MHz (by cutting the whip)
- Gain: 2 dB (ref. 1/4 λ)
- Max power: 100 Watts
- Mounting: Magnetic base included (60 mm diameter)
- Cable: 3 meters of RG58 coaxial included
- Connector: Soldered PL-259 (UHF Male)
- Materials: Robust stainless steel whip
Supplied with: Sirio SU3 antenna, MAG60 magnetic base (Ø 60mm), 3m RG58 coaxial cable with PL-259 connector, Allen key for adjustment, cutting chart.
Data sheet
The Sirio SU3 350-550 MAG60 is a versatile and high-performance mobile antenna solution for users operating in the UHF band. Thanks to its 5/8 wave design and whip adjustable by cutting, it perfectly adapts to varied needs, ranging from 70cm amateur radio communications to professional PMR, Taxi, and even LoRa IoT networks on 433 MHz. Its provided magnetic base allows for immediate installation without drilling.
Highlights
- Great frequency versatility: Covers a very wide range from 350 to 550 MHz, allowing use on multiple services (TETRA, PMR446, LPD, Amateur).
- Plug & Play installation: Delivered complete with a powerful 60 mm magnetic base and its cable, ready to be placed on the vehicle roof.
- Optimized performance: 5/8 wave configuration offering higher gain than a simple quarter wave for better mobile range.
- Sirio robustness: Quality manufacturing with a stainless steel whip and an 'S' type (wing nut) base allowing the antenna to be tilted or removed easily (e.g., garage entrance).
- Customizable: The provided cutting chart allows the antenna to be precisely tuned to your specific working frequency for minimal SWR.
Technical specifications
- Antenna type: 5/8 λ (wave) UHF mobile
- Frequency range: Adjustable from 350 to 550 MHz
- Impedance: 50 Ohms
- Radiation: Omnidirectional
- Polarization: Vertical
- Gain: 2 dB (relative to 1/4 wave)
- Bandwidth: ≥ 15 MHz @ SWR ≤ 1.6
- SWR at resonance frequency: ≤ 1.2
- Power handling (Max): 100 Watts
- Whip length: Approx 530 mm (before cutting)
- Materials: Stainless steel, Chromed brass, Nylon
- Base type: MAG 60 magnetic (60 mm diameter)
- Cable: 3 meters of RG58
- Connector: UHF Male (PL-259)
Compatibility
- UHF mobile transceivers: All amateur radio stations (Yaesu, Icom, Kenwood, Anytone) operating on the 70cm band (430-440 MHz).
- Professional radios: Motorola, Hytera, Kenwood stations operating in UHF (PMR, DMR, TETRA) in the 350-550 MHz range.
- ISM / LoRa applications: Compatible with gateways and equipment operating on 433 MHz (after tuning).
- Connectivity: Compatible with any device having an SO-239 (UHF Female) antenna socket.
FAQ
How to tune this antenna to my frequency?
The antenna is delivered with a whip longer than necessary to cover the lowest frequency (350 MHz). To tune it to a higher frequency (e.g., 446 MHz), you must cut the whip following the cutting chart provided in the packaging, then fine-tune the setting using an SWR meter.
Does the magnetic base hold well at high speeds?
The 60 mm MAG60 base is designed for normal road use. For high-speed highway use, ensure the roof surface is clean and dry before placement. For larger antennas or very high speeds, a wider base (MAG125 or MAG145) could be considered, but the MAG60 is generally sufficient for this antenna size.
Can I use this antenna for PMR446?
Yes, absolutely. By cutting the whip to the length corresponding to 446 MHz, this antenna will offer excellent performance for PMR446. Note, however, that PMR446 regulations normally require fixed, non-detachable antennas on handhelds, so use is at your own responsibility.
Can the cable be extended?
The 3-meter RG58 cable is crimped to the magnetic base. It is not recommended to extend it excessively as this increases losses, especially in UHF. If you need more length, use a quality extension with appropriate adapters, but try to keep the length to a minimum.
What is the difference compared to a 1/4 wave antenna?
This antenna is a 5/8 wave. It offers a lower radiation angle on the horizon, which favors range in flat and open terrain compared to a classic 1/4 wave antenna. It also has a slight additional gain of 2 dB.
Why choose the Sirio SU3 350-550 MAG60?
- Total flexibility: A single antenna to potentially cover any professional or amateur UHF frequency.
- Value for Money: A complete solution (antenna + base + cable) at a very competitive price for European manufacturing (Sirio Antenne).
- Discretion and efficiency: At about 50 cm high, it remains discreet on a vehicle while offering superior performance to small rubber duck antennas.
- Ready to use: No need to buy a mount or drill the bodywork, ideal for rental vehicles or temporary installations.
