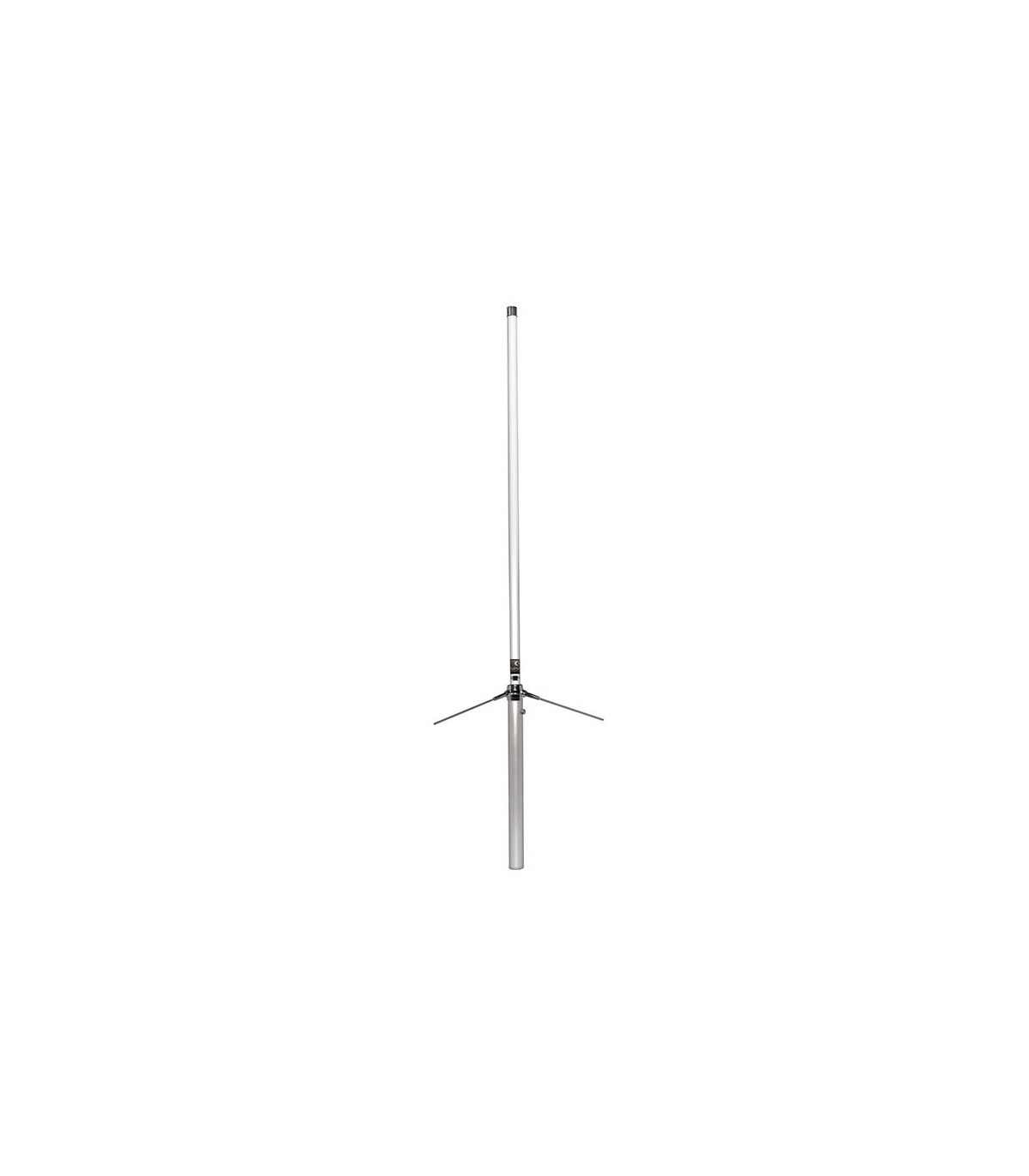

Komunica X-50-PWR VHF/UHF 144-430MHz 350W High Power Base Antenna

The Komunica X-50-PWR stands out as a reference for fixed stations seeking an ideal compromise between reduced size and high performance. This omnidirectional vertical antenna is specially designed to cover the 144 MHz and 430 MHz bands with a yield superior to classic quarter-wave antennas. It is aimed at both amateur radio operators wishing to boost their local station and professional installations requiring robustness at all times.

Key Features

• Exceptional power: Unlike standard versions, this PWR model supports up to 350W, ideal for the use of amplifiers.
• High gain: With 7.2 dBi in UHF, it offers excellent penetration in urban environments and extended range in open areas.
• Premium Construction: The fiberglass tube protects the radiating elements from corrosion and weather variations.
• SWR Stability: Factory preset to offer a very low standing wave ratio across all amateur bands.
• Easy installation: Its length of 1.7m allows easy installation on a roof, a balcony or a pylon without excessive wind load.

Technical Specifications

• Frequencies: 144-146 MHz / 430-440 MHz
• Type: 6/8 wave (144MHz), 3x5/8 wave (430MHz)
• Gain: 4.5 dBi (VHF) / 7.2 dBi (UHF)
• Maximum power: 350 Watts (Peak)
• Impedance: 50 Ohms
• SWR (SWR): Less than 1.5:1
• Connector: N-Female
• Total height: 1.70 meter
• Length of radiants: approx. 19 cm
• Weight: 0.9 kg
• Diameter of the accepted mast: 30 mm to 62 mm
• Nominal wind speed: 50 m/sec (180 km/h)

Compatibility

• VHF/UHF amateur radio transceivers (Yaesu, Icom, Kenwood, Anytone, CRT, etc.).
• Use with high-quality 50 Ohm coaxial cable (type LMR-400, Ultraflex 7 or 10) recommended to minimize losses, equipped with an N-Male plug.

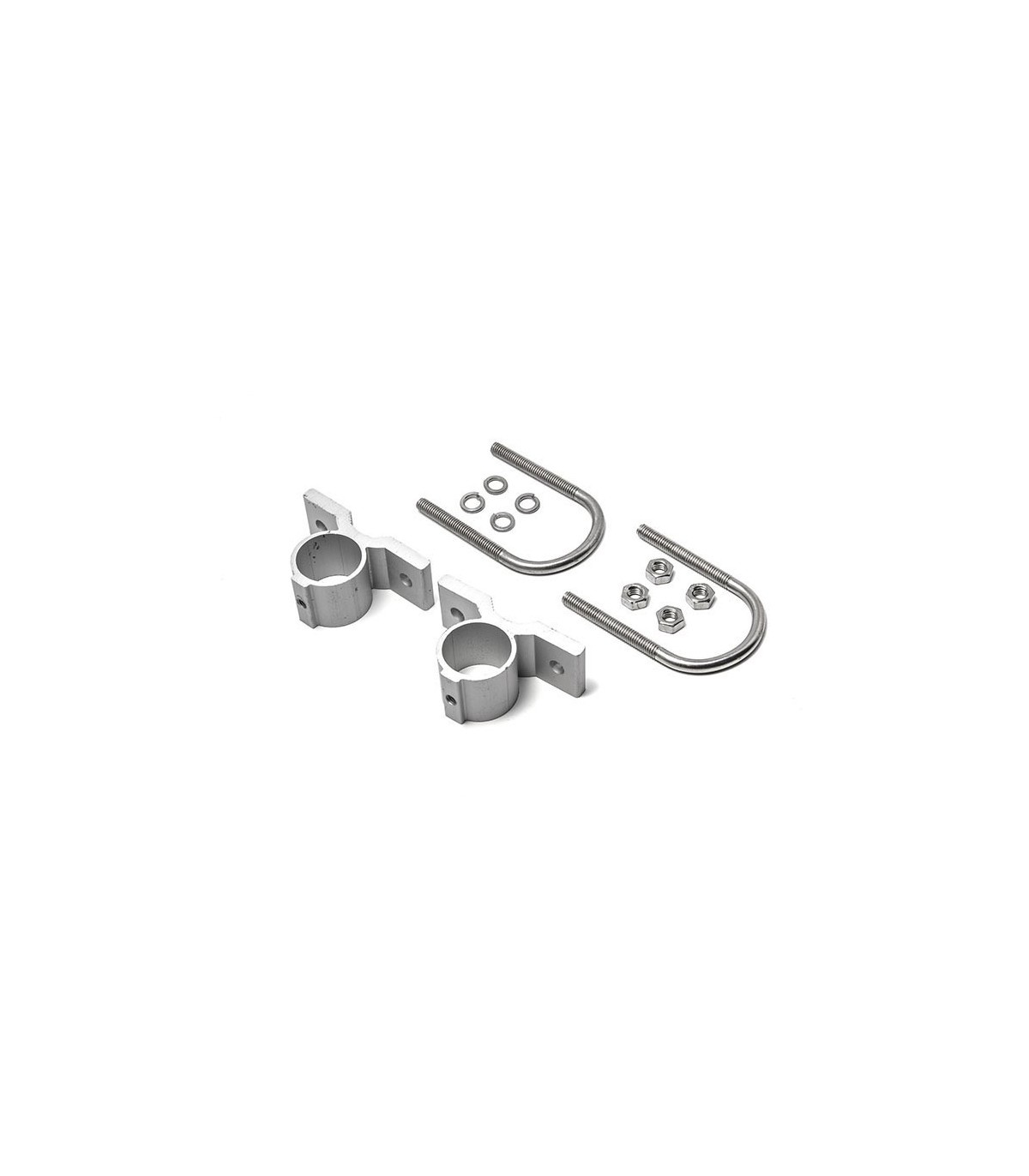

• Compatible with all standard masts of diameter 30mm to 60mm thanks to its adjustable fixing brackets.

FAQ

Why choose the Komunica X-50-PWR?

• Unbeatable gain/size ratio: Offers performance close to much longer antennas for only 1.7m.
• Komunica reliability: A brand recognized for the quality of its materials and the precision of its RF measurements.
• Versatility: Perfect for traffic via relay, direct communications (simplex) or digital modes like DMR and C4FM.
• Protection against the elements: Its fiberglass coating guarantees a lifespan of several years even by the sea or in the mountains.
