> Radio Antennas>27 MHz antennas>CB-FM DPX2000 49cm 26-28MHz & FM 87-108MHz antenna with 5 metre cable
49cm PNI DPX2000 CB-FM antenna 26-28MHz FM 87-108MHz 5 metre cable View larger
Previous Next

PNI France

PNI-DPX2000-2673

New product

CB-FM DPX2000 49cm 26-28MHz & FM 87-108MHz antenna with 5 metre cable

rating No review at the moment

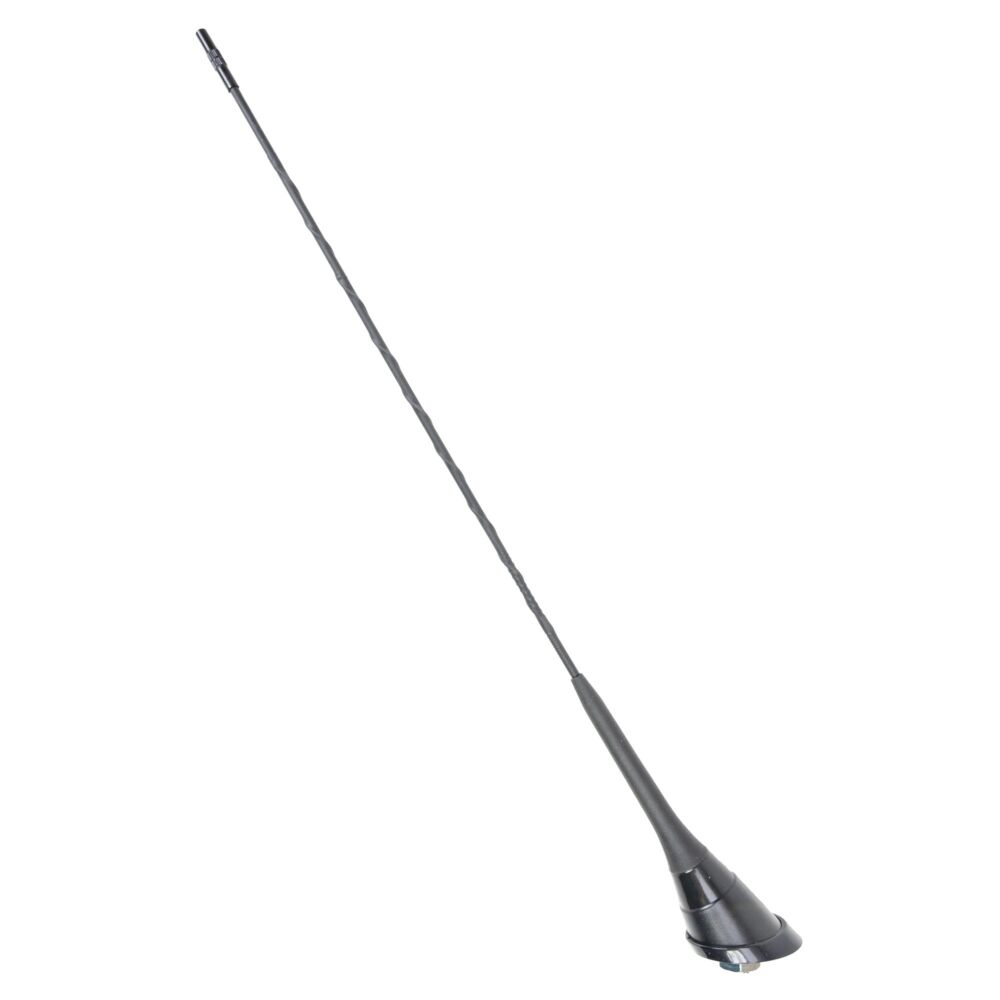

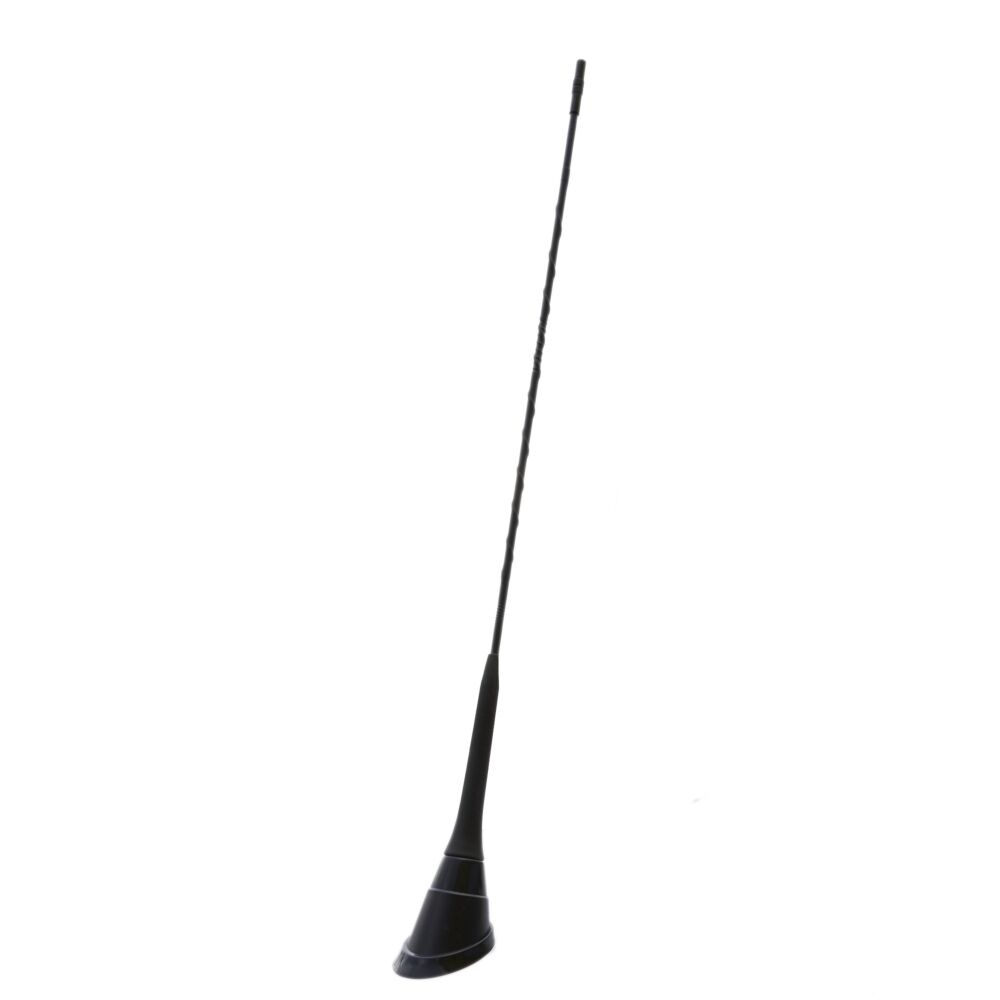

The PNI CB 50W Duplex 2000 antenna is a 49cm multiband (CB/FM) antenna with PL259 connector (UHF male) which combines the characteristics of the free CB frequency (26-28Mhz) and those of the FM radio 88-108 Mhz.

This antenna can replace the car's original FM radio antenna.

Made from quality materials that guarantee durability over time.

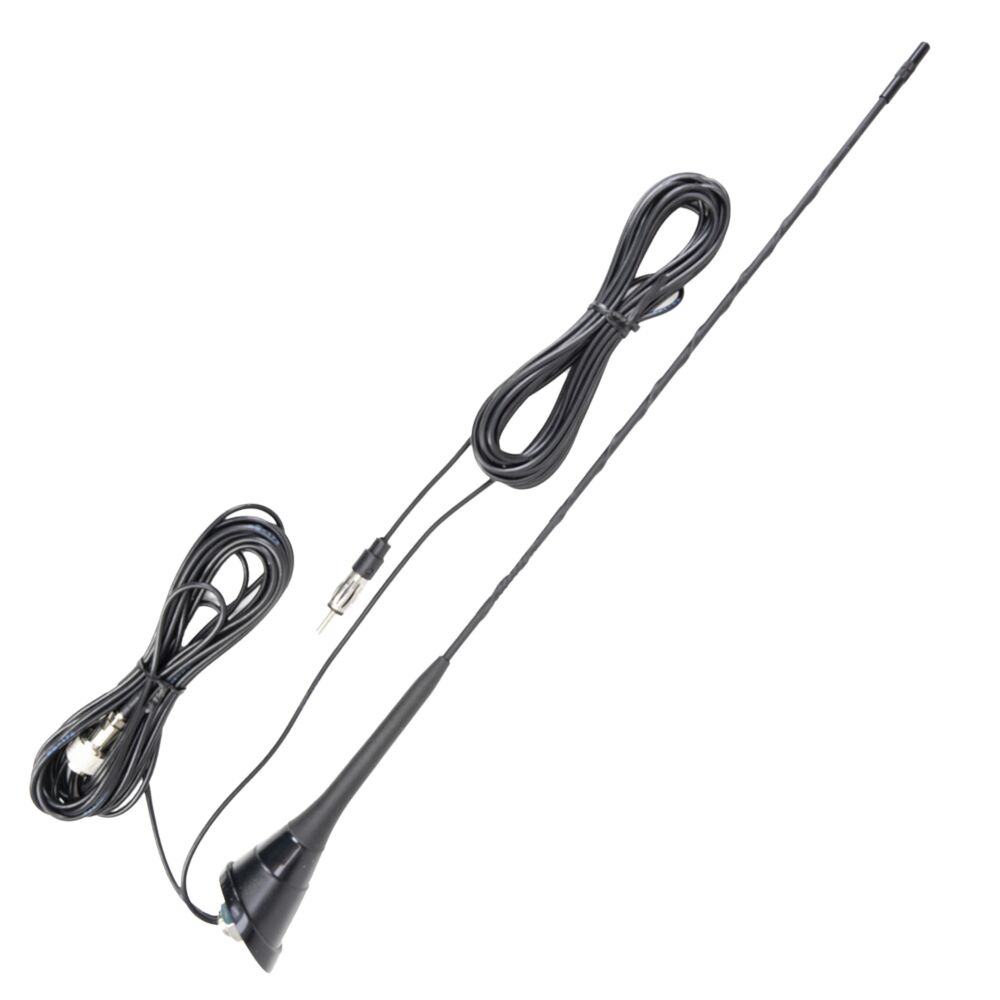

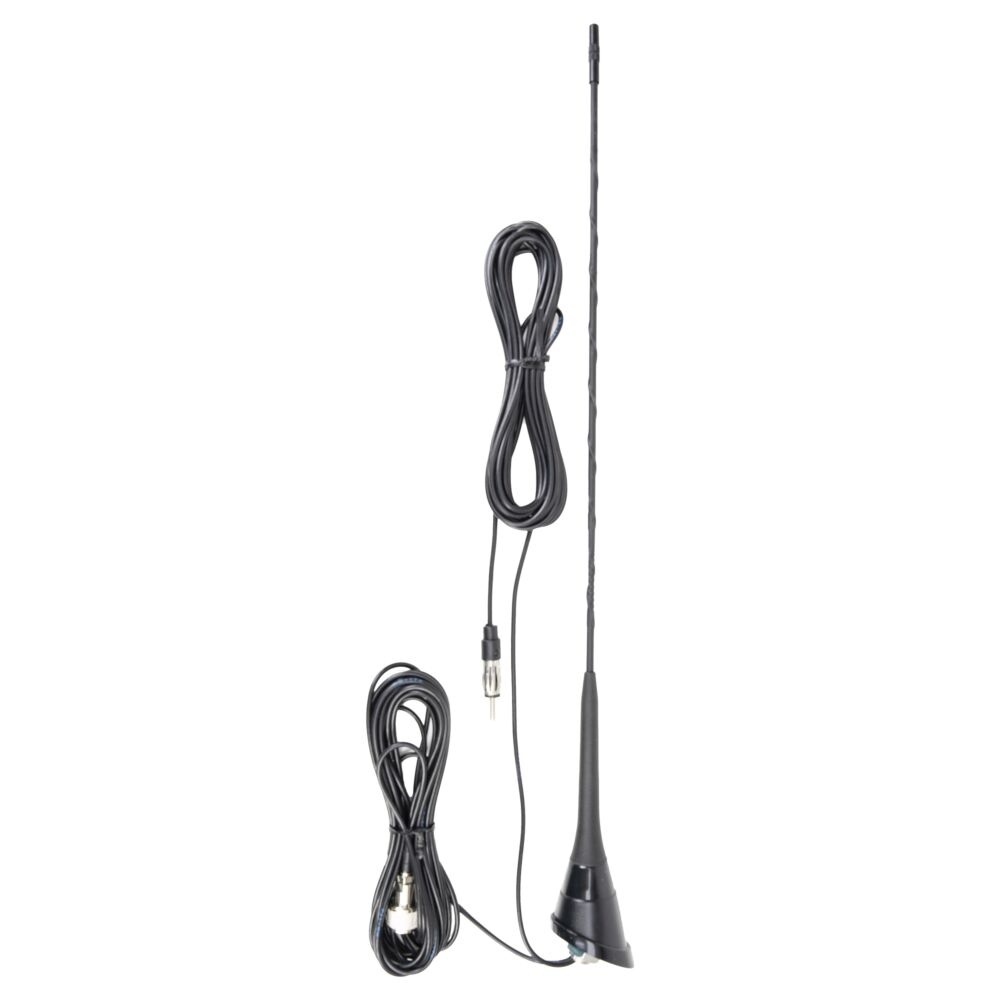

Supplied with: 1 DPX2000 CB antenna, 1 x 5m CB cable, 1 x 5m FM cable.

More details

24,90 € tax excl.

In stock

   1 Item

Download

Déclaration CE DPX2000

436.14k

Manuel PNI DPX2000

298.61k

Data sheet

  • Operating frequency: 26.965 - 27.405 MHz (CB) / 87 - 108 MHz (FM)
  • Maximum applied power: 50W
  • Minimum SWR at the centre of the band: less than 1.2
  • Length: 440 mm (length of tips)
  • Impedance: 50 ohms
  • Material: Glass fibre

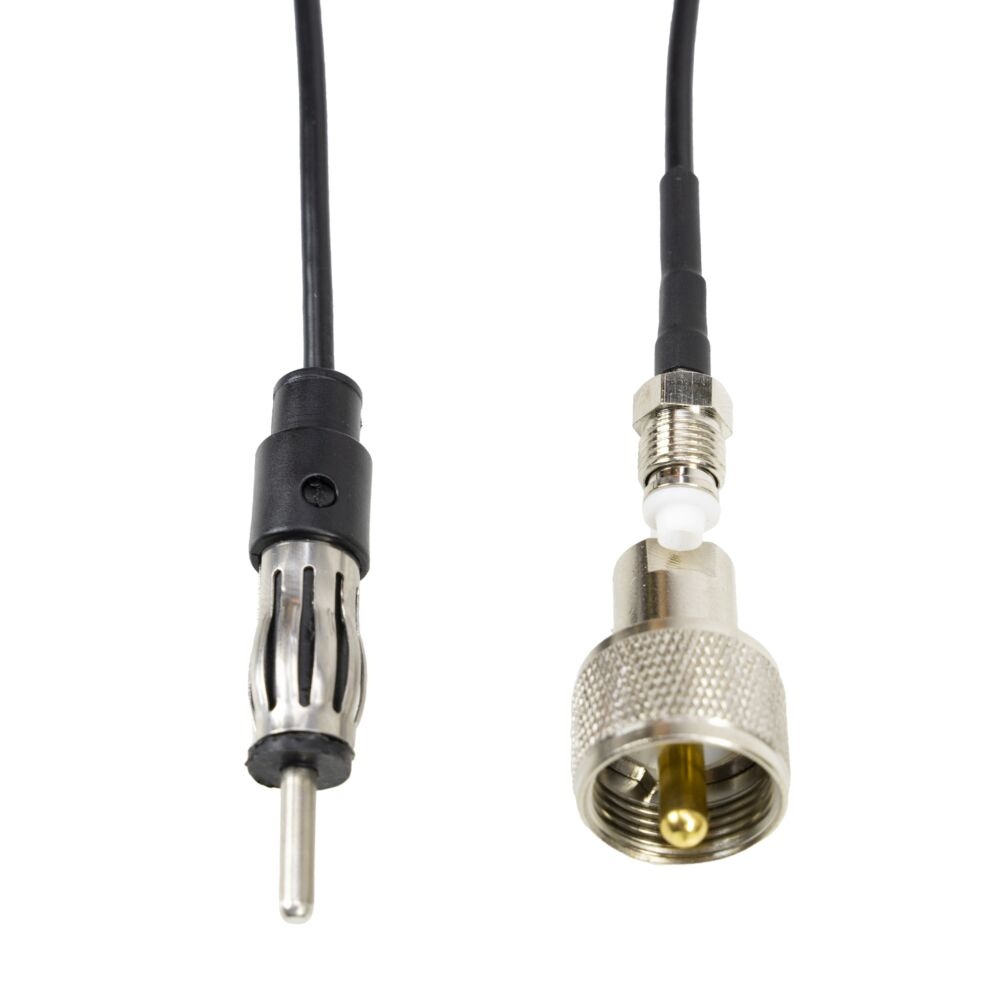

  • Connector type: PL-259 (CB) / Father ISO (FM)

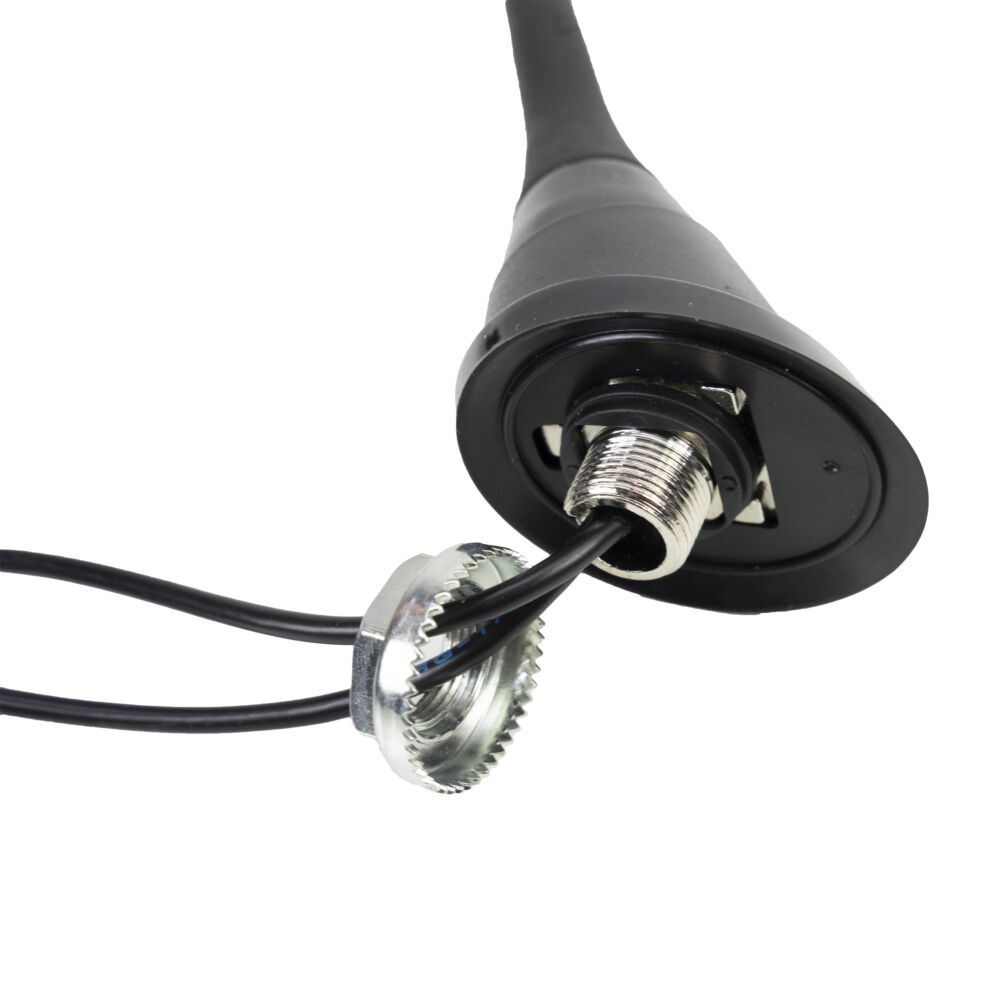

  • Hole diameter: 16 mm
  • Cable length: 5 m
  • Polarisation: vertical
  • Operating temperature : -26°C ~ +80°C

The exclusive anti-noise design produces an air movement around the tip, virtually eliminating wind noise.

Thanks to the adjustable tip, the antenna can be easily calibrated for ideal reception and transmission without interference. It is recommended that antenna adjustment/calibration is carried out by specialist personnel using the appropriate equipment.
