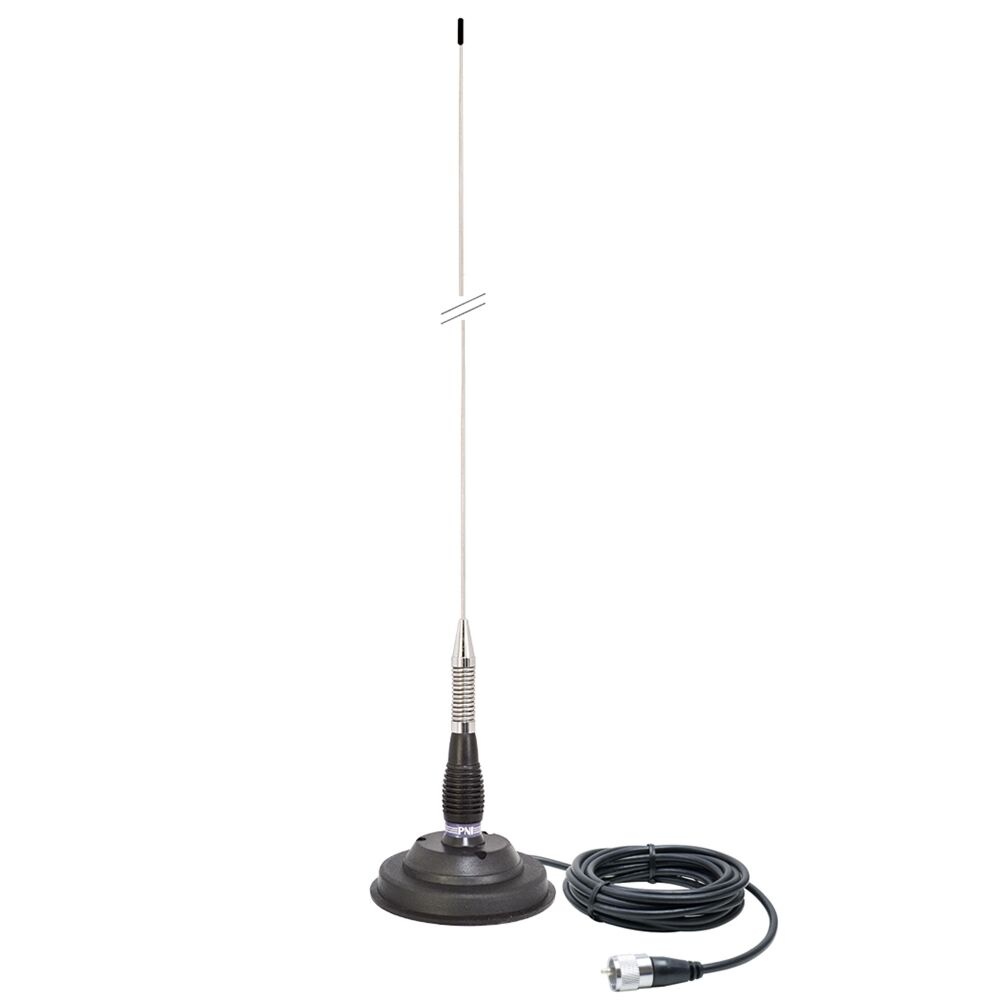

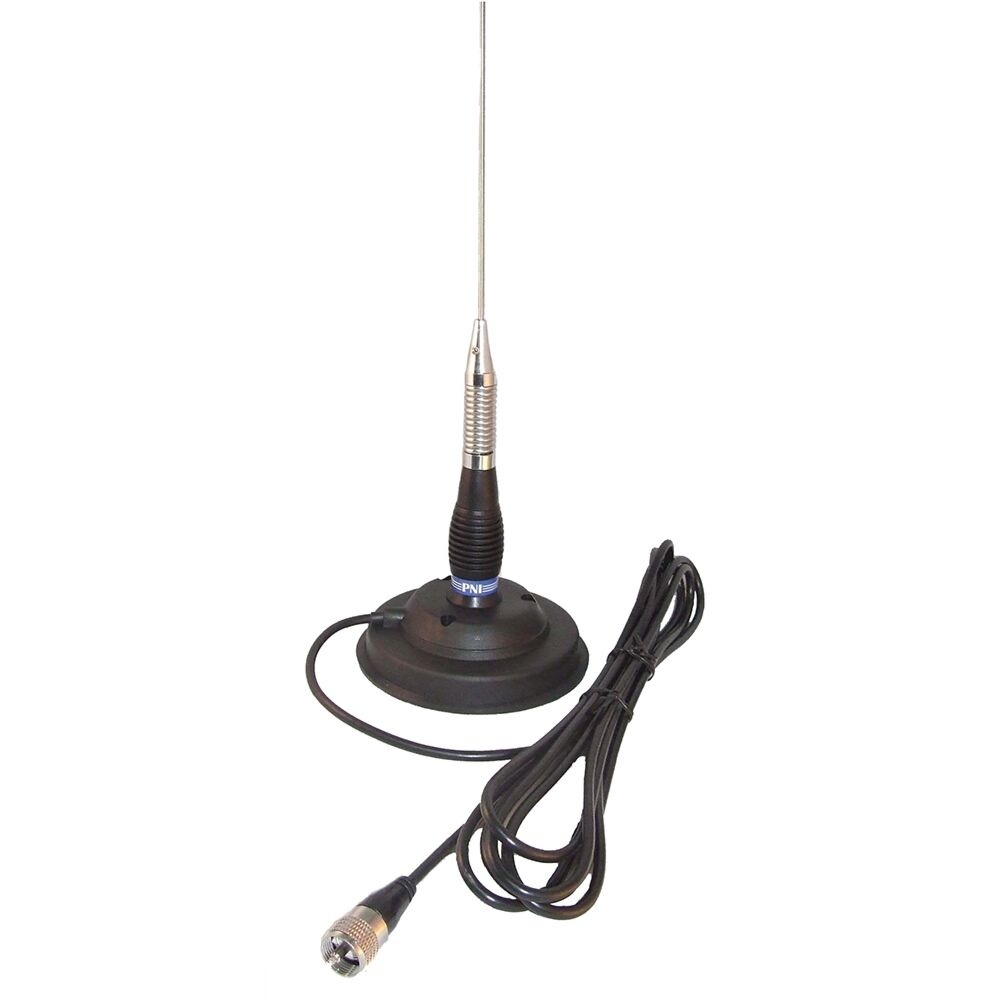

CB antenna PNI ML100 100 cm 26-30MHz 250W magnetic base 125mm View larger
Previous Next

PNI France

PNI-ML100-2311

New product

CB antenna PNI ML100 100cm 26-30MHz 250W magnetic base 125mm

rating Read the 2 reviews
Average rating: 5/5 Number of reviews: 2

The CB PNI ML100 antenna is one of the best performing PNI antennas.

Ideal conditions for installation and use: SWR <= 1.0, maximum applied power 250 W continuous, impedance 50 Ohms

With a length of 110cm (including magnetic base), a maximum communication distance of 12km is achieved under working conditions such as: calibrated antenna, open field without obstacles, station with maximum legally authorised power of 4W and with standard reception. Any obstacle such as hills, mountains, buildings or walls may reduce this distance.

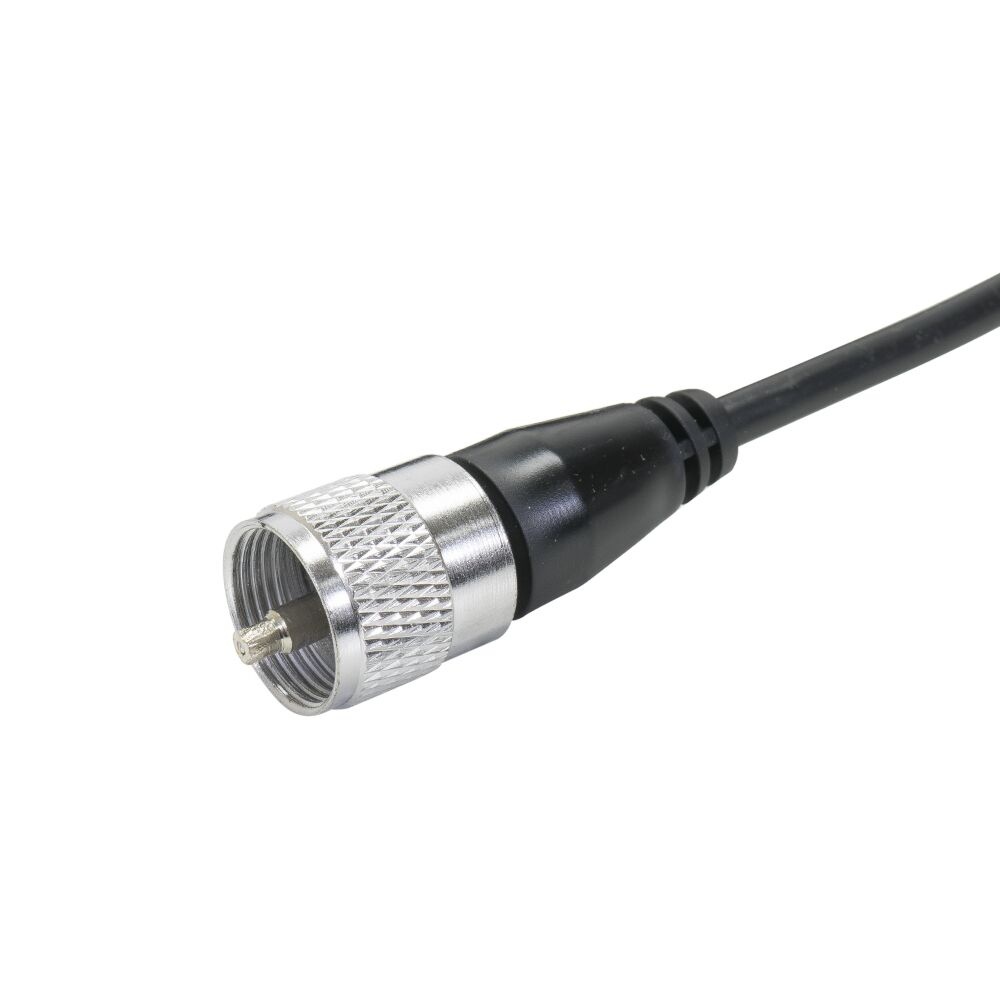

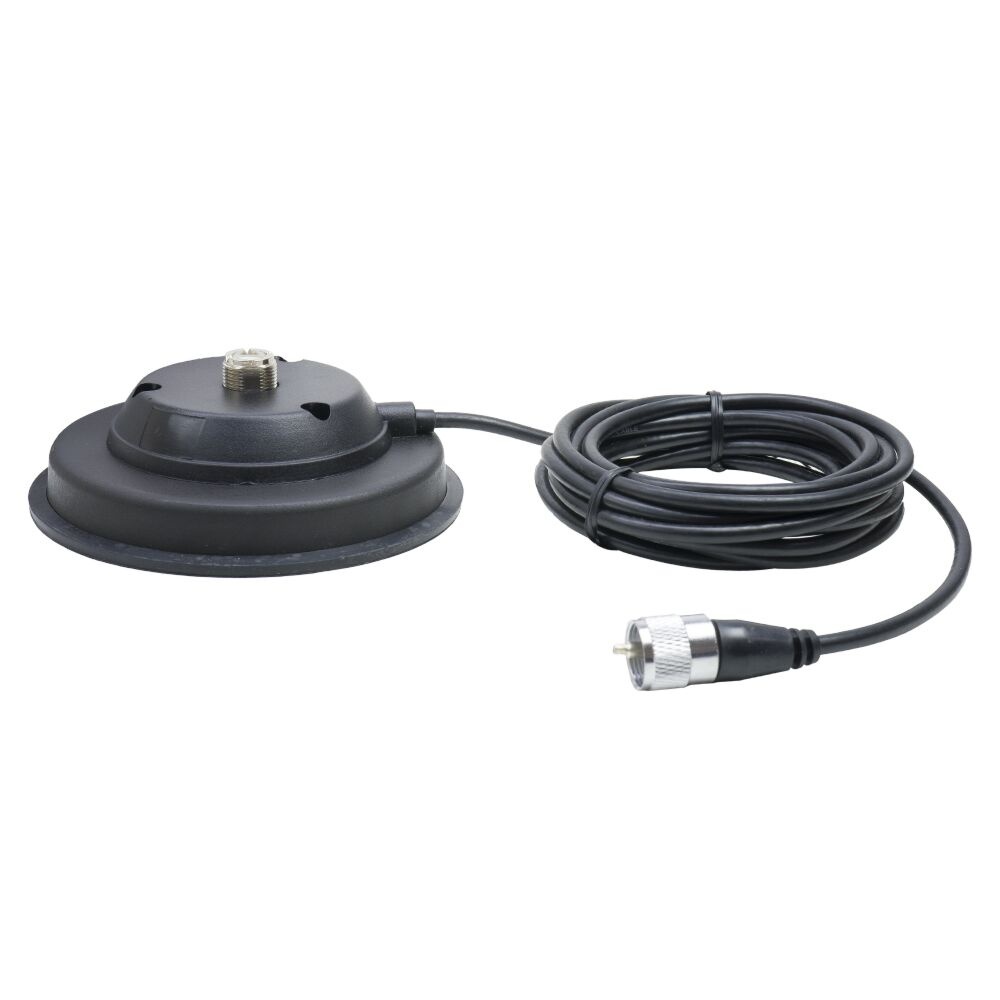

The CB PNI ML100 antenna is supplied with a 125 mm 120/PL magnetic base, a 4-metre RG58 cable and a PL259 plug (UHF male).

More details

32,40 € tax excl.

In stock

   4 Items

Download

déclaration CE ML100

435.1k

manuel utilisation ML100

207.21k

Data sheet

  • Operating frequency 26 - 28 MHz
  • Number of channels 90
  • Maximum applied power 250W
  • Minimum SWR at band centre 1.0
  • Length 100 cm (110 cm with base included)
  • Impedance 50 ohms
  • Material Stainless steel
  • Tip connector PL259
  • Hole diameter (mm) 16 millimetres
  • Cable length 4m
  • Weight 1.2 kg
  • dimensions 1000x150x40mm
  • I gain 4 dBi
  • Working distance 12km
  • Operating temperature -26°C ~ + 60°C
  • Manufacturer's warranty: 6 months
