> Radio Antennas>27 MHz antennas>Wilson W500-MAG 26-30 MHz 2000W 1.51m antenna

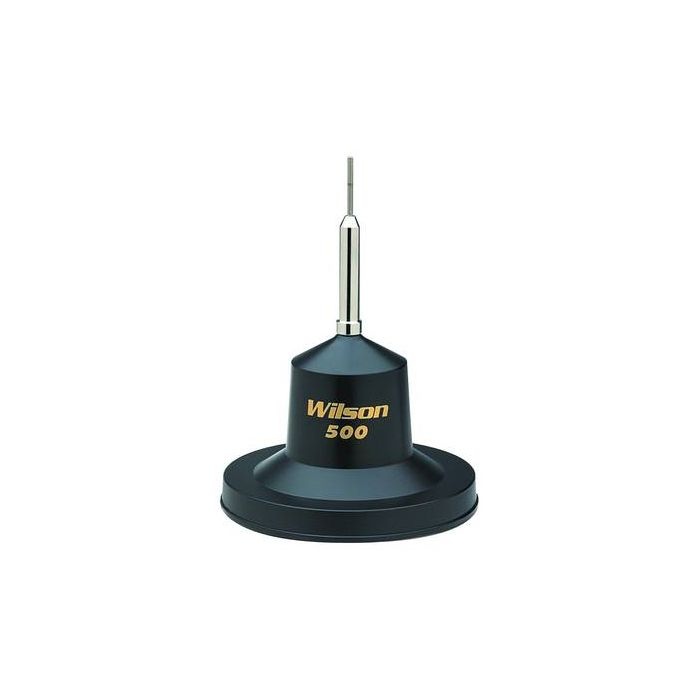

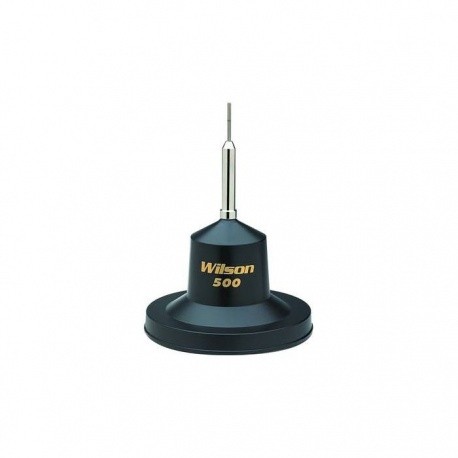

Wilson W500-MAG 2000W Antenna View larger
Wilson

ANT-W500-MAG-1572

New product

Wilson W500-MAG 26-30 MHz 2000W 1.51m antenna

rating No review at the moment

CB 11m and 10m mobile antenna, 26 MHz to 30 MHz, magnetic mount, black version, stainless steel whip, length 151cm, 2000W PEP.

  • Frequency range 26 MHz to 30 MHz
  • Max. power 2000 watts
  • Made of thermoplastic
  • Heavy duty coil using 12 gauge copper wire
  • Exclusive low loss coil design (same as Wilson 1000)
  • With magnetic mounting base

Supplied with: 1 Wilson W500-MAG antenna.

Delivery info: This antenna is considered a large package and the carriers apply an extra charge for shipping.

More details

This material is no longer available

Data sheet

FEATURES, FUNCTIONS AND SPECIFICATIONS:
• 2000 Watt power handling capability (ICAS)
• Made with high impact Thermoplastic
• Heavy duty coil uses 12 gauge copper wire
• Exclusive low loss coil design (Patent #4,882,591)( Same as Wilson 1000)
• 54 17-7 PH stainless steel whip
• Frequency range 26 MHz to 30 MHz
• Weather Channel Ready
• Available in a black magnet mount version only
• 2 year warranty
