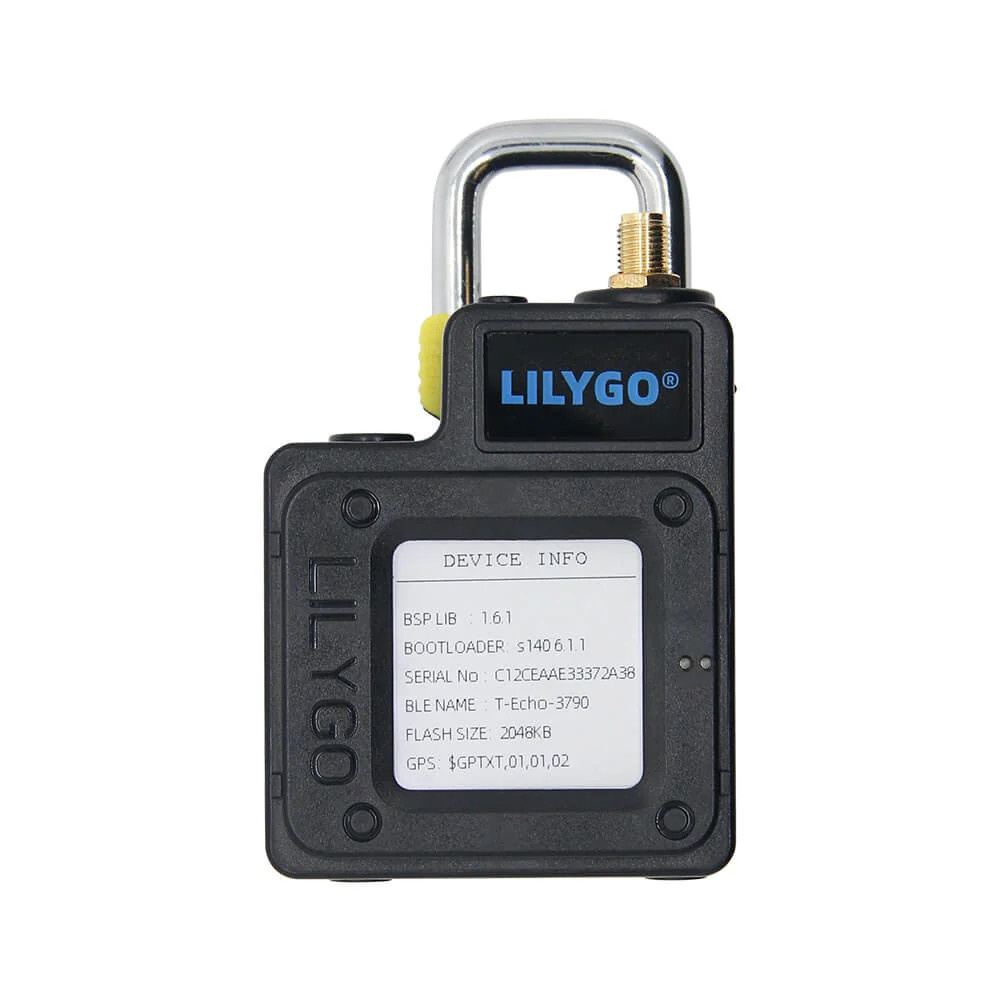

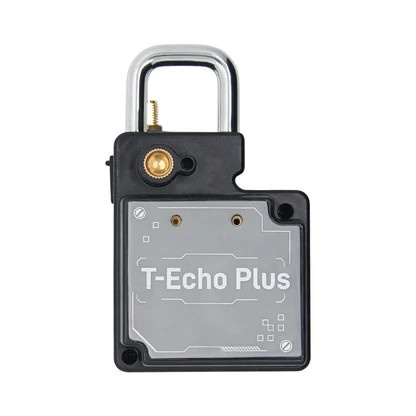

LilyGO T-Echo Plus 868MHz NRF52840 LoRa Meshtastic BME280
No review at the momentThe LilyGO T-Echo Plus is a standalone, ultra-low-power LoRa communication device, optimised for decentralised Meshtastic mesh networks. Equipped with the Nordic nRF52840 SoC, an 868 MHz LoRa module, the BME280 weather sensor and a high-capacity 2400 mAh battery, it is the ideal portable solution for outdoor activities and emergency communications outside the mobile network.
- Low-power architecture based on the Nordic nRF52840 microcontroller
- Sunlight-readable E-Paper display with integrated backlight
- Integrated BME280 environmental sensor (temperature, humidity, barometric pressure)
- BHI260AP IMU and haptic feedback via vibrator and buzzer
- Built-in 2400 mAh Li-Po battery for long-lasting battery life
- Universal mounting via 1/4" screw thread for a tripod or outdoor mount
Supplied with: 1x T-Echo Plus Grey 868 MHz unit with BME280, 1x 868 MHz LoRa antenna, 1x USB charging cable.
Data sheet
The LilyGO T-Echo Plus 868 MHz is the advanced version of the renowned decentralised communication device designed for mesh networks such as Meshtastic. It is aimed at amateur radio operators, IoT enthusiasts, hikers and first-aiders looking for a messaging and geolocation tool that is completely independent of mobile or internet infrastructure. Thanks to its ultra-low-power nRF52840 chip and 2400 mAh battery, it ensures reliable and long-lasting connections in outdoor environments.
Key features
- Exceptional battery life: Equipped with a generous 2400 mAh battery and a Nordic nRF52840 MCU optimised to operate for days without recharging.
- Ultra-readable E-Paper display: Optimal reading comfort even in bright sunlight, whilst consuming no power when in standby mode.
- Comprehensive integrated sensors: Features the BME280 barometric/temperature/humidity sensor as well as a BHI260AP inertial measurement unit for motion tracking.
- Multi-sensory alerts: Features a haptic vibrator and an audible buzzer to alert you instantly to incoming messages or waypoint notifications.
- Outdoor mechanical design: Standard 1/4" thread for easy mounting on a tripod, rucksack or bike mount, complete with a carrying loop.
- Modern connectivity: Supports Bluetooth 5, Thread, Zigbee and LoRa for easy pairing with a smartphone via the Meshtastic app.
Technical specifications
- Microcontroller (MCU): Nordic Semiconductor nRF52840 (64 MHz ARM Cortex-M4 with FPU)
- Memory: 2 MB FLASH, 2 MB RAM
- LoRa frequency: 868 MHz (European ISM band)
- Wireless connectivity: LoRa, Bluetooth 5 / Bluetooth Mesh, Thread, ANT, IEEE 802.15.4, Zigbee
- On-board sensors: BME280 (temperature, humidity, atmospheric pressure), BHI260AP IMU
- Display: Low-power E-Paper screen
- Alerts & Feedback: Haptic vibration motor, Audible buzzer
- Battery: 2400 mAh Li-Po, rechargeable via USB
- Bus interfaces: UART, SPI, TWI, PDM, I2S, QSPI
- Mounting: 1/4-inch threaded interface, retaining ring
- Housing / Finish: Grey
Compatibility
- Software & Firmware: Meshtastic (iOS and Android), TinyGS, Arduino/PlatformIO projects, Zephyr RTOS
- Wireless standards: Meshtastic 868 MHz LoRa mesh networks, Bluetooth Low Energy 5.0
- Mechanical mounts: All camera mounts and tripods with standard 1/4-inch thread
FAQ
Is the T-Echo Plus compatible with Meshtastic out of the box?
Yes, the T-Echo Plus is perfectly suited to the Meshtastic open-source ecosystem. It allows you to communicate via encrypted text messaging off-network by synchronising with your smartphone via Bluetooth.
What is the purpose of the BME280 sensor on this version?
The BME280 sensor automatically measures and broadcasts telemetry data on temperature, relative humidity and atmospheric pressure at your location across the mesh network.
What battery life can be expected from the 2400 mAh battery?
Thanks to the advanced power management of the nRF52840 microcontroller and the E-Paper display, typical battery life ranges from several days to over a week, depending on the beacon transmission interval and Bluetooth usage.
Can the original LoRa antenna be replaced?
Yes, the antenna is connected via a standard connector, allowing you to replace it with an omnidirectional or directional antenna with higher gain to increase the range.
Is this 868 MHz version legal in France and across Europe?
Absolutely; the 868 MHz frequency band is the licence-free ISM band dedicated to LoRa and IoT transmissions in France and throughout the European Union.
