Home > LoRa & Mesh > Mesh networks > LILYGO T-Lora Pager ESP32-S3 LoRa SX1262 Module 2.33" IPS Display NFC GNSS AIoT
New Reduced price!

-3%

LILYGO T-Lora Pager ESP32-S3 LoRa SX1262 Module 2.33" IPS Display NFC GNSS AIoT View larger
LILYGO T-Lora Pager ESP32-S3 LoRa SX1262 Module 2.33" IPS Display NFC GNSS AIoT
Previous
  • LILYGO T-Lora Pager ESP32-S3 LoRa SX1262 Module 2.33" IPS Display NFC GNSS AIoT
  • LILYGO T-Lora Pager ESP32-S3 LoRa SX1262 Module 2.33" IPS Display NFC GNSS AIoT
  • LILYGO T-Lora Pager ESP32-S3 LoRa SX1262 Module 2.33" IPS Display NFC GNSS AIoT
  • LILYGO T-Lora Pager ESP32-S3 LoRa SX1262 Module 2.33" IPS Display NFC GNSS AIoT
Next

TTGO by LilyGO

LILYGO-LORA-PAGER-K257-3215

New product

China

Safety Information +

LILYGO T-Lora Pager ESP32-S3 LoRa SX1262 Module 2.33" IPS Display NFC GNSS AIoT

rating No review at the moment

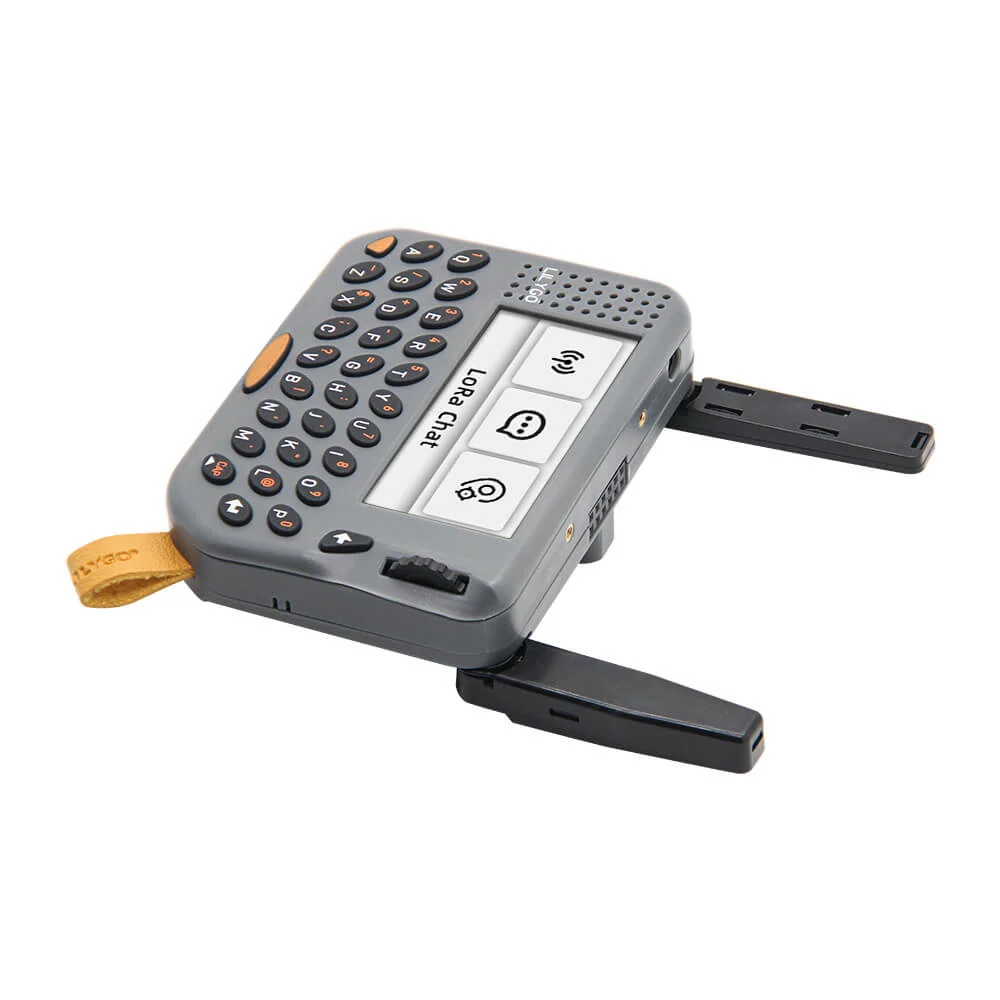

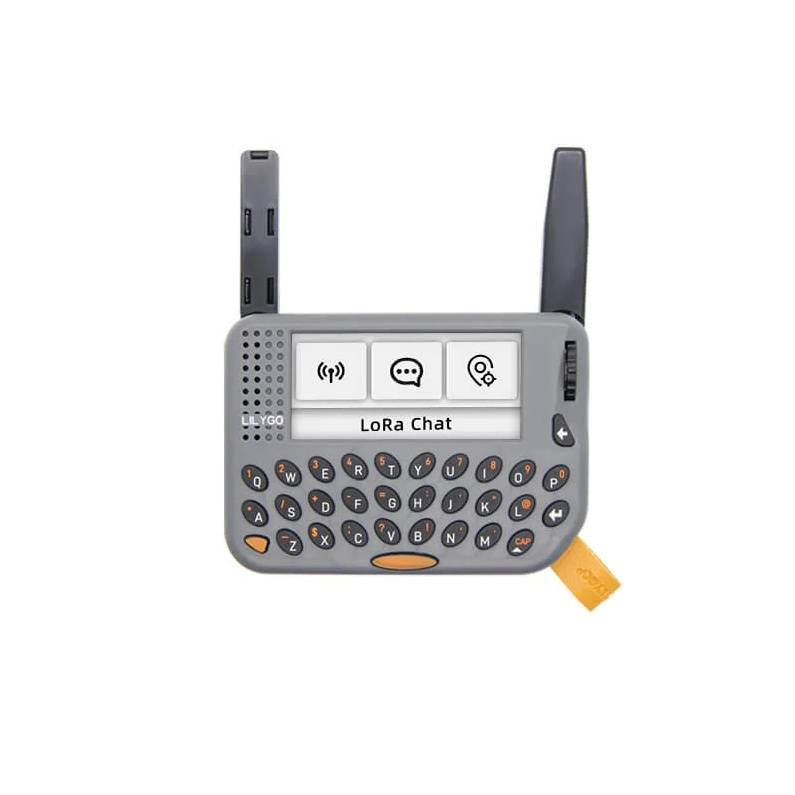

The LILYGO T-Lora Pager is a standalone, programmable device in a pager form factor, combining a powerful ESP32-S3 microcontroller with an SX1262 long-range LoRa radio transceiver. Designed for makers, ham radio enthusiasts, and IoT developers, it features a 2.3-inch IPS color display, a keyboard, an RFID/NFC module, and a BHI260AP AI motion sensor.

  • ESP32-S3 dual-core microcontroller with 16 MB of Flash and 8 MB of PSRAM
  • High-sensitivity Semtech SX1262 LoRa transceiver
  • 2.33-inch IPS LCD screen (222x480) with ST7796 controller
  • Dual-mode RFID/NFC support and BHI260AP smart IMU/AI sensor
  • Real-time clock (RTC), MicroSD (TF) card reader, and integrated audio circuit
  • Built-in rechargeable 1500 mAh LiPo battery for full mobility
  • Open development environment (Arduino IDE, ESP-IDF, VS Code / PlatformIO)

Includes: 1x LILYGO T-Lora Pager ESP32-S3 with case, 1x antenna, 1x USB charging cable.

More details

128,41 € tax excl.

132,38 €

In stock

   10 Items

Estimate shipping costs by clicking on "Add to cart", then enter only your country and zip code on the cart page.

Data sheet

Abstract

The LILYGO T-Lora Pager is a standalone portable device designed for decentralized communication, mesh networks, and advanced AIoT applications. Equipped with the ESP32-S3 SoC and the Semtech LoRa SX1262 radio chip, this multifunction device features a color display, a physical keyboard, and comprehensive connectivity (LoRa, Wi-Fi, Bluetooth, NFC) to create off-network messaging networks or mobile RF testing tools.

Key Features

  • Standalone all-in-one design: Integrates a 2.33" IPS display, a navigation/input keyboard, and a 1500 mAh Li-Po battery into a compact enclosure.
  • High-performance SX1262 LoRa radio: Offers extended radio range with optimized power management compared to traditional SX1276/78 modules.
  • Powerful hardware architecture: ESP32-S3 with 16 MB of Flash and 8 MB of PSRAM, enabling the execution of complex graphical interfaces (LVGL) and resource-intensive network protocols.
  • Versatile on-board features: Dual RFID/NFC mode, BHI260AP motion sensor with AI/IMU processing, RTC clock, and TF card reader for data storage.
  • Open-source ecosystem: Ideal for off-grid messaging projects, compatible with Arduino, PlatformIO, and ESP-IDF development environments.

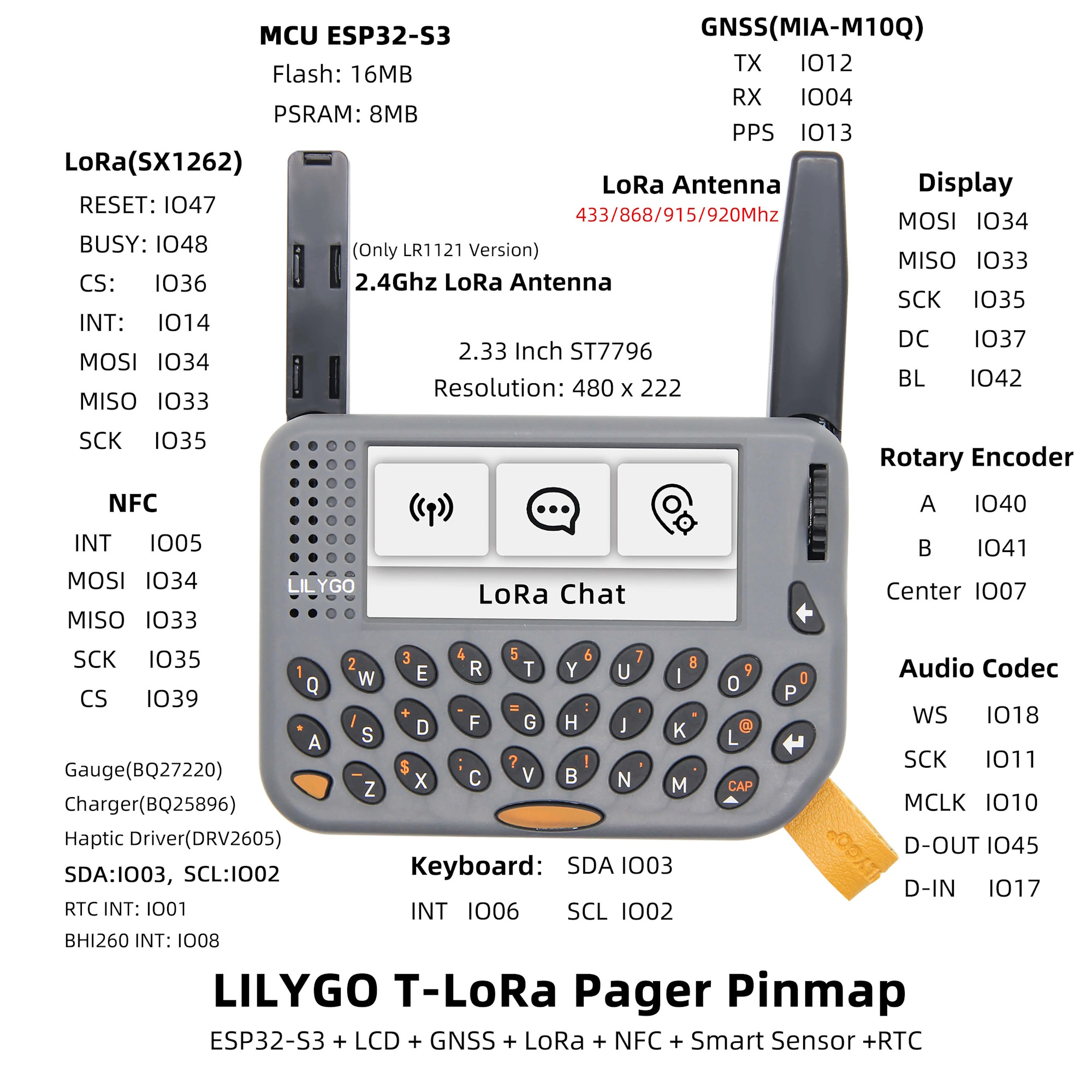

Technical Specifications

  • Manufacturer: LILYGO
  • Model: T-Lora Pager
  • Main microcontroller: Espressif ESP32-S3 (Dual-core Xtensa LX7 up to 240 MHz)
  • Memory: 16 MB SPI Flash, 8 MB PSRAM
  • LoRa RF chip: Semtech SX1262
  • Wireless connectivity: Wi-Fi 802.11 b/g/n (2.4 GHz), Bluetooth 5 (LE / Mesh), LoRa, RFID/NFC
  • Display: 2.33-inch IPS LCD (222 x 480-pixel resolution, ST7796 controller)
  • Integrated sensors: BHI260AP AI smart motion sensor (IMU / 6-axis)
  • Additional Peripherals: RTC clock, audio amplifier, micro-SD (TF) card slot
  • Power & Battery: Built-in 1500 mAh lithium battery (505050 format), charges via USB 5V / 500 mA
  • Supported programming environments: Arduino IDE, VS Code / PlatformIO, ESP-IDF

Compatibility

  • Radio protocols: LoRa (point-to-point), LoRaWAN, off-grid mesh networks
  • Development environments: Arduino IDE, PlatformIO (VS Code), Espressif ESP-IDF
  • External connectivity: MicroSD / TF memory cards, standard NFC devices (13.56 MHz)
  • Operating systems: Windows, macOS, Linux (for programming and serial flashing via USB)

FAQ

What is the main purpose of the LILYGO T-Lora Pager?

The T-Lora Pager is designed for decentralized, long-range text communication off the cellular network (off-grid), NFC emulation or reading, IoT beacon development, and experimentation with autonomous LoRa radio sensor networks.

Can this device be programmed using the Arduino IDE?

Yes, the ESP32-S3 microcontroller is fully compatible with the Arduino IDE, PlatformIO in VS Code, and the official Espressif ESP-IDF environment, with libraries and examples provided by LILYGO.

What is the battery life of the 1500 mAh battery?

Battery life depends heavily on the use of the IPS display, the LoRa transmission frequency, and whether Wi-Fi/Bluetooth is enabled. In standby mode with periodic LoRa reception, battery life can reach several dozen hours.

Does the LILYGO T-Lora Pager have GPS (GNSS)?

The device is designed to integrate with or communicate with geolocation functions and includes an RTC clock as well as an IMU motion sensor with an IA accelerometer (BHI260AP) for navigation and positioning.

Does the device support MicroSD memory cards?

Yes, a TF (MicroSD) card slot is built into the device, allowing for the local storage of message histories, sensor data logs, or image files.
