LNA Wide Band 50-4000Mhz RTL-SDR

rating Read the 6 reviews
Average rating: 4.5/5 Number of reviews: 6

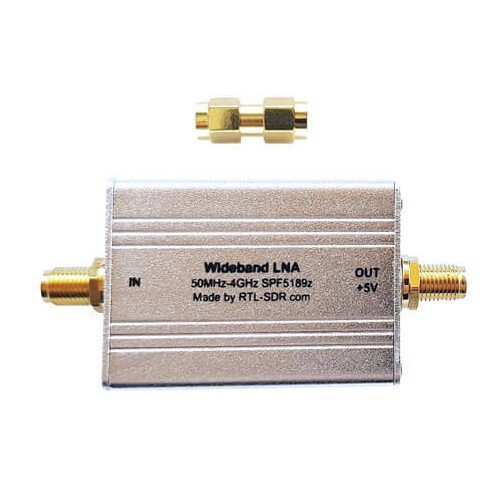

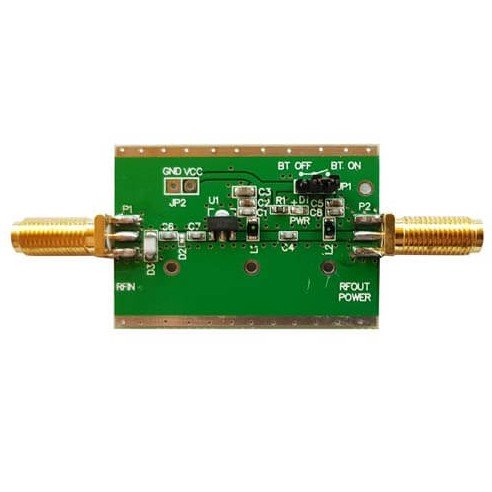

This wide-band LNA preamp improves reception performance from 50 Mhz to 4 Ghz, it is based on SPF5189Z, with a noise factor of less than 1 dB.

This LNA is designed to be powered by BIAS-T with a power supply of 3 to 5V. The RTL-SDR V3 dongle has a Bias-T function that provides 4.5V and is ideally suited.

It is possible to feed this LNA live with an external power supply, but you will not be able to use the box in this case.

Delivered with: 1 RTL-SDR LNA WIDEBAND, 1 male SMA adapter SMA male, 1 aluminum case.

More details

26,78 € tax excl.

In stock

   More than 10 Items

Estimate shipping costs by clicking on "Add to cart", then enter only your country and zip code on the cart page.

Data sheet

Frequency: 50 Mhz to 4000 Mhz
Based on the Qorvo SPF5189Z chip
Gain: 15-20 dB
Noise factor: ~1 dB
Power supply: 3.3 - 5V via Bias-T
Consumption: 150 mA max.
RF IN: To the antenna
RF OUT +5V: To SDR receiver
Case: Aluminum
Dimensions: 46.5 x 32 x 15.6 mm (without SMA) - With SMA: 69.8 x 32 x 15.6 mm
