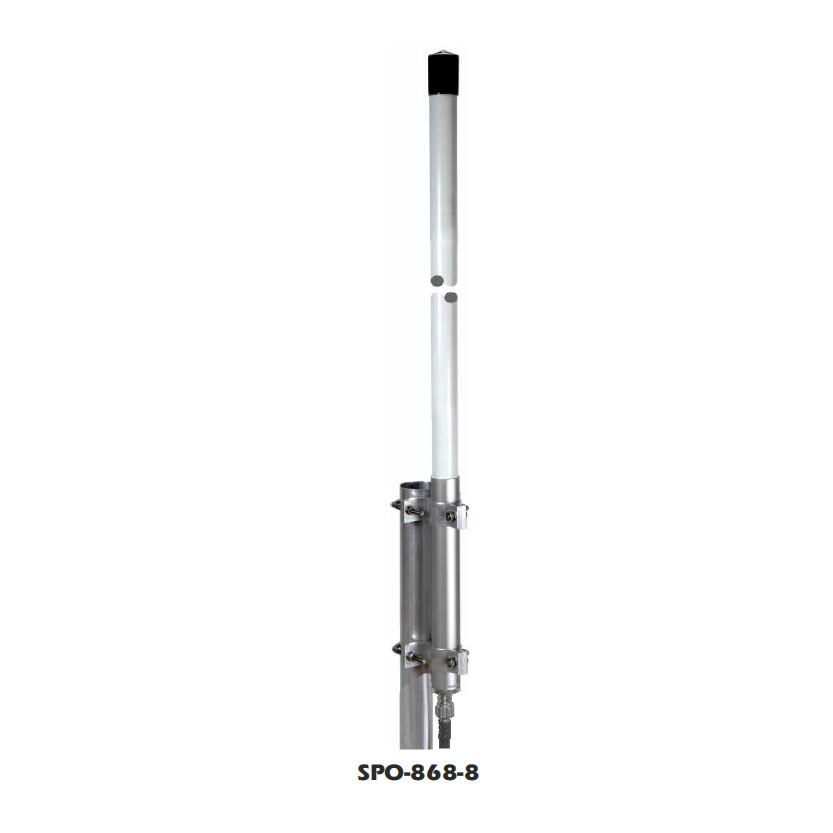

SIRIO SPO868-8 868MHz 8dBi base antenna for LoRa 868 Meshtastic
No review at the momentSIRIO SPO-868-8 antenna, for the 868MHz band 20W 8dBi for fixed installation, with N connector, antenna length: 1.6m.
Download
Data sheet
Main features :
- Type: 6 x 1/2 λ vertical collinear antenna
- Frequency: 868 - 870 MHz (868MHz LoRa ISM band, Meshtastic)
- Gain : 8 dBi (5.9 dBd)
- Polarisation: Vertical linear
RF performance :
- Radiation: 360° omnidirectional (H-plane)
- Beam width: 13° at -3 dB (E plane)
- Maximum power : 20 Watts (at 30°C)
- Impedance: 50 Ω
- Connector: N-female (gold-plated centre pin)
Mechanical characteristics :
- Height: 1600 mm
- Weight: 1020 g (without stand)
Materials :
- Structure: Fibreglass, PCB, anodised aluminium, nickel-plated brass
- Stand: Aluminium and stainless steel
Environmental Resistance:
- Protection: IP66
- Operating temperature : -40°C to +80°C
- Wind resistance: 180 Km/h
- Wind surface area: 0.046 m²
Installation:
- Mast mounting: Ø 35-60 mm
- Mounting: FT-5 bracket with U-bolts included
LoRa is one of the leading technologies in this band. Developed for the Internet of Things (IoT), it enables small quantities of data to be transmitted over long distances - up to several kilometres in rural areas - while consuming very little energy.
Sigfox adopts a similar approach, but with its own proprietary network infrastructure.
Meshtastic is revolutionising decentralised communication. This open-source technology creates mesh networks where each device can relay messages from the others, forming a resilient communications network with no centralised infrastructure. Ideal for hikers, emergency situations or areas without cellular coverage.
