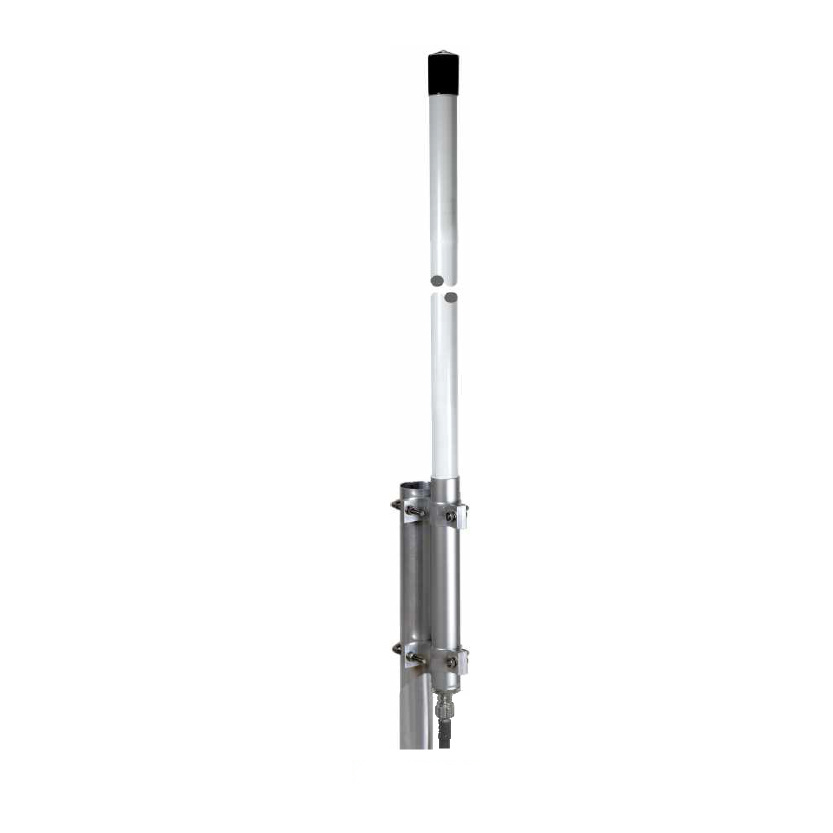

SIRIO SPO868-10 10dBi base antenna for 868MHz LoRa ISM Meshtastic
No review at the momentSIRIO SPO-868-10 antenna, for the 868MHz band 20W 10dBi for fixed installation, with N connector, antenna length: 2.5m.
For RF applications in the 868 MHz ISM band: Lora, Sigfox, Meshtastic, etc.
Delivery info: This antenna is considered a large parcel and carriers apply an extra charge for shipping. Package height 282cm.
Download
Data sheet
Main features :
- Type: 10 x 1/2 λ vertical collinear antenna
- Frequency : 868 - 870 MHz (868MHz band, ISM, LoRa system, Meshtastic etc.)
- Gain: 10.5 dBi (8.4 dBd)
- Polarisation: Vertical linear
RF performance :
- Beamwidth: 360° omnidirectional (H-plane)
- Beam width: 8.6° at -3 dB (E plane)
- Maximum power : 20 Watts (at 30°C)
- Impedance: 50 Ω
- Connector: N-female (gold-plated centre pin)
Mechanical characteristics :
- Height: 2590 mm
- Weight: 1500 g (without stand)
Materials :
- Structure: Fibreglass, PCB, anodised aluminium, nickel-plated brass
- Stand: Aluminium and stainless steel
Environmental Resistance:
- Protection: IP66
- Operating temperature : -40°C to +80°C
- Wind resistance: 140 Km/h
- Wind surface area: 0.078 m²
Installation:
- Mast mounting: Ø 35-60 mm
- Mounting: FT-5 bracket with U-bolts included
