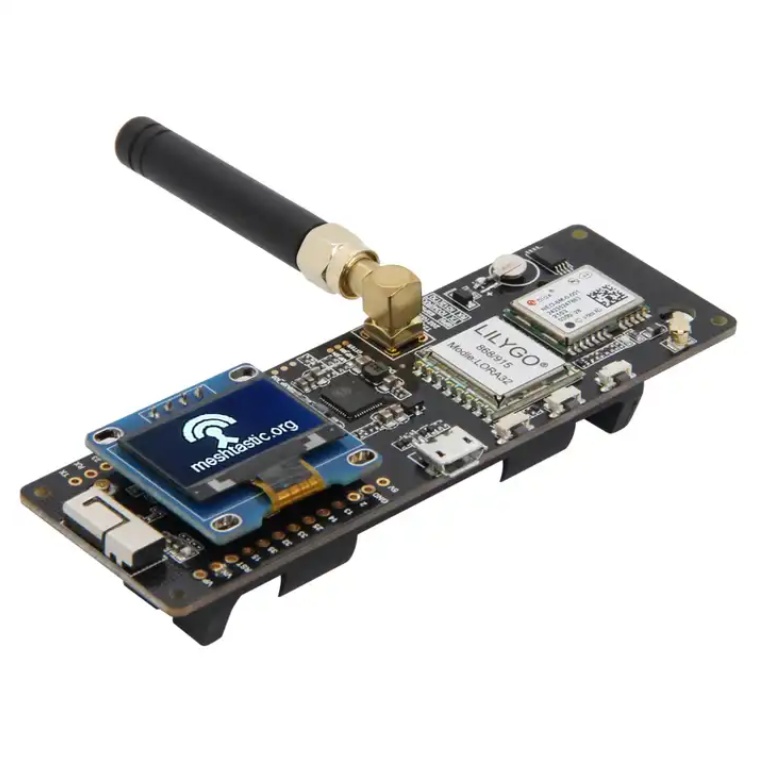

TTGO T-BEAM V1.2 Meshtastic LoRa 868 MHz SX1276 View larger

TTGO by LilyGO

TTGO-LORA868-T-BEAM-V2-Q410-2419

New product

China

TTGO T-BEAM V1.2 Meshtastic LoRa 868 MHz Card SX1276 ESP32 WiFi BT GPS

rating No review at the moment

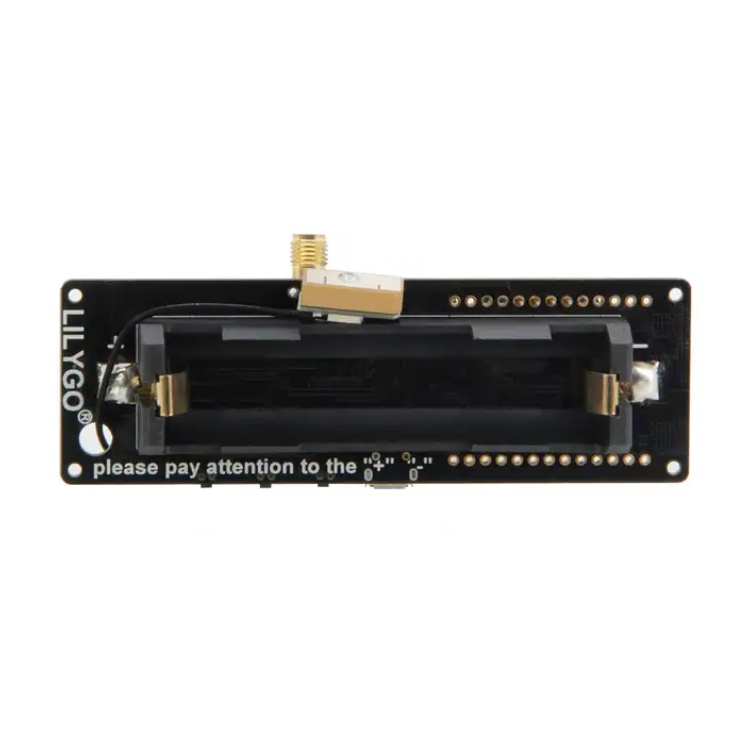

IoT development board for the LoRa 868 MHz ISM band, with 802.11 b/g/n WIFI connection , Bluetooth/BLE 4.2, soldered 2.4cm OLED display, GPS module and battery holder (battery not included).

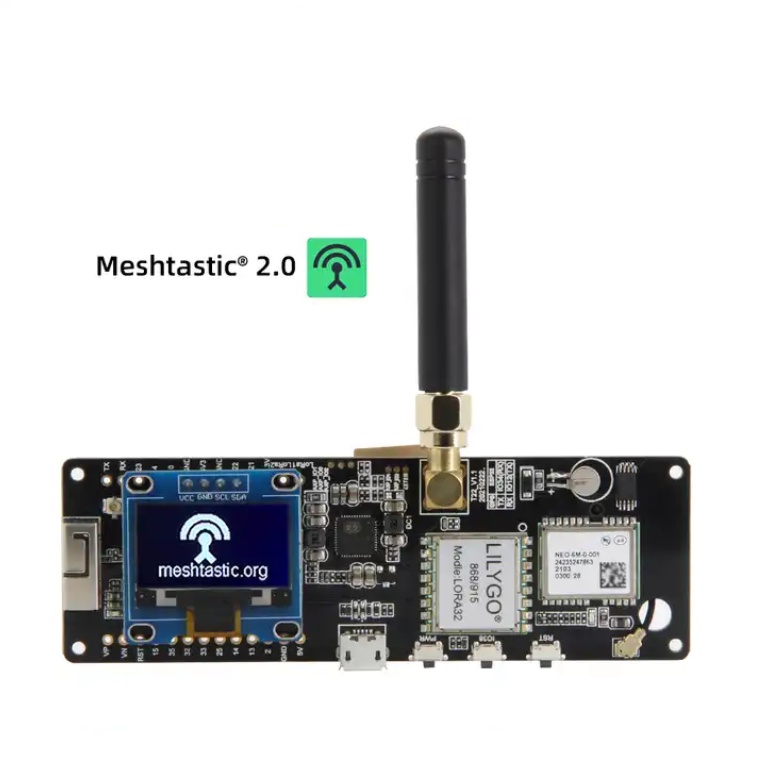

With Meshtastic.org firmware loaded.

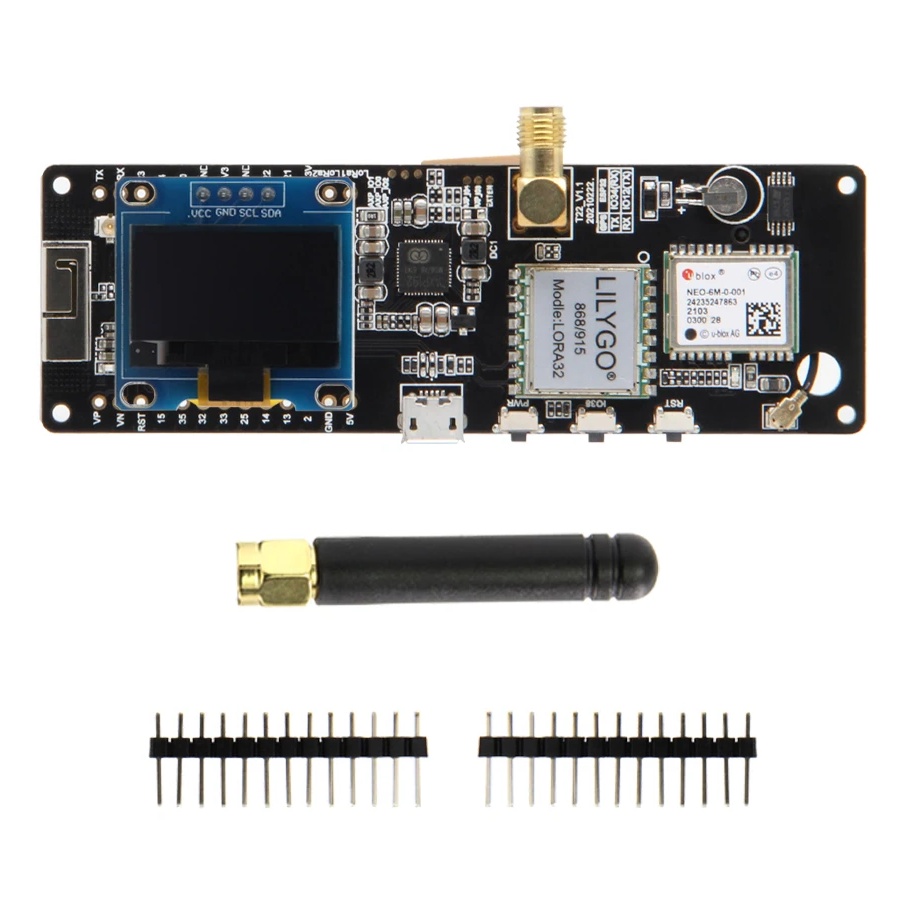

Supplied with: 1 TTGO T-BEAM 1.2 Meshtastic module, 1 868 MHz antenna, 2 headers (soldered), 1 OLED screen (soldered). Battery and USB cable not included.

More details

49,60 € tax excl.

In stock

   More than 10 Items

Data sheet

Chipset: ESP32
ISM frequencies: 868 MHz
LoRa module: SX1276
Max. transmit power: +20dBm - 100mW +20dBm - 100mW
Frequency stability: +/- 15KHz
Interface: SPI
Operating temperature: -40° / +85°
RSSI digital function
Automatic frequency correction
Automatic gain control
Fast wake-up and frequency hopping
Data packet manager
Antenna connector : SMA female
NEO-6M GPS modules, 3V-5V power supply
With integrated ceramic GPS antenna
Bluetooth 4.2 module
WIFI module:
Configuration data backup EEPROM
Signal indicator LED
Battery management
Power supply: Micro-USB or 18650battery
Serial chip:
CH9102
Preloaded firmware : Meshtastic
TTGO T-BEAM version: 1.2
Flash memory: 4MB
PSRAM memory: 8MB
3 buttons : Power+IO38+Reset

Documentation on the Meshtastic firmware is available on Github: https: //github.com/meshtastic

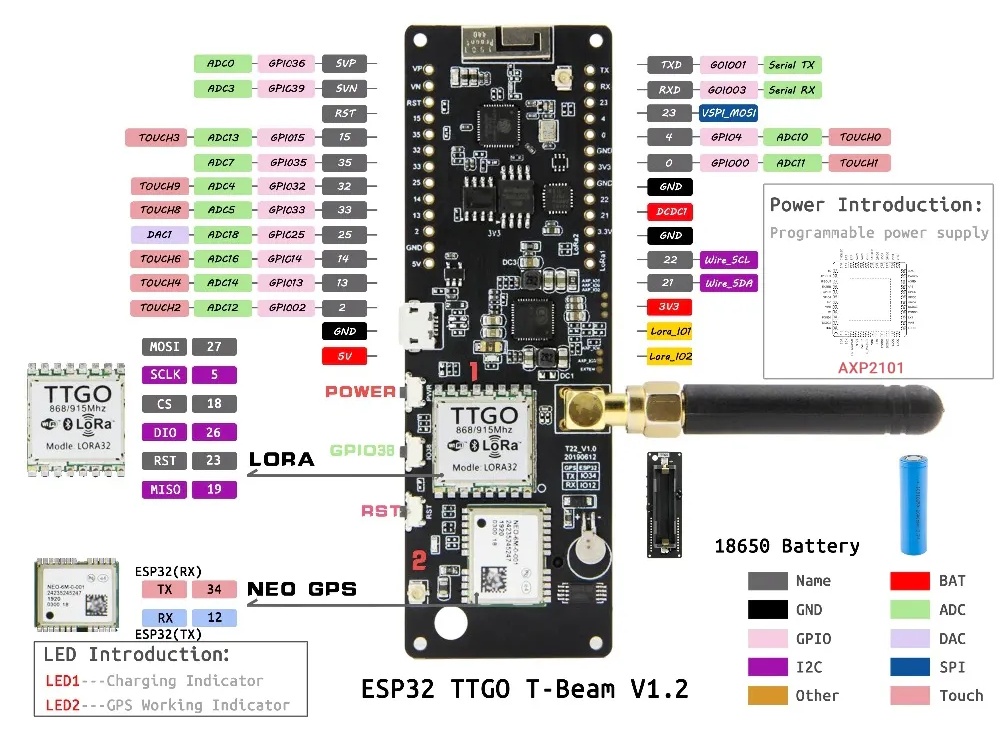

TTGO T-BEAM development board diagram
