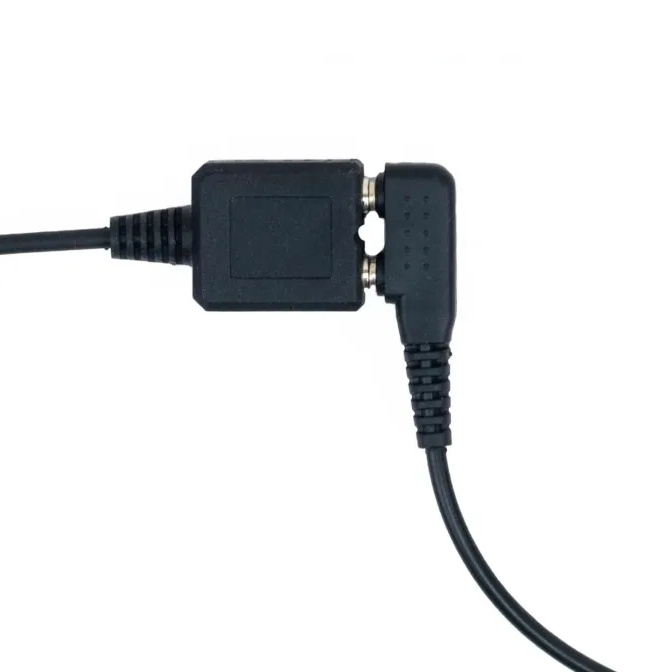

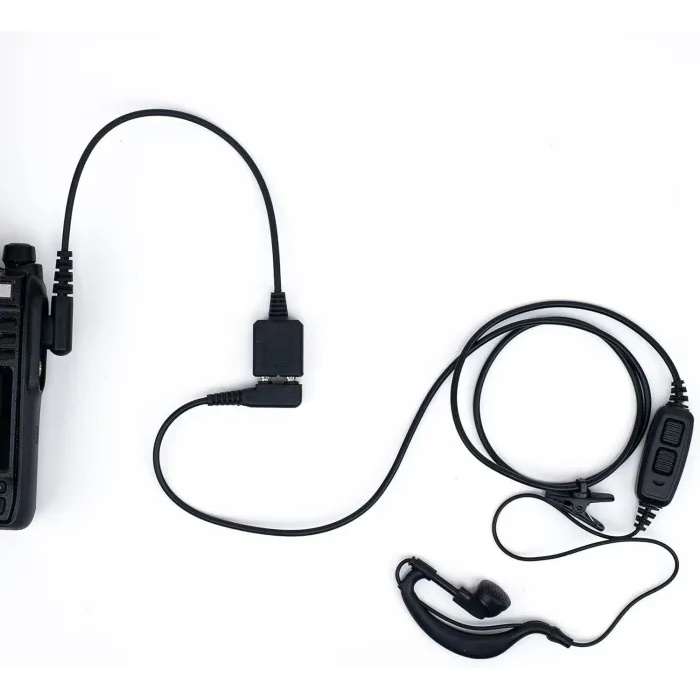

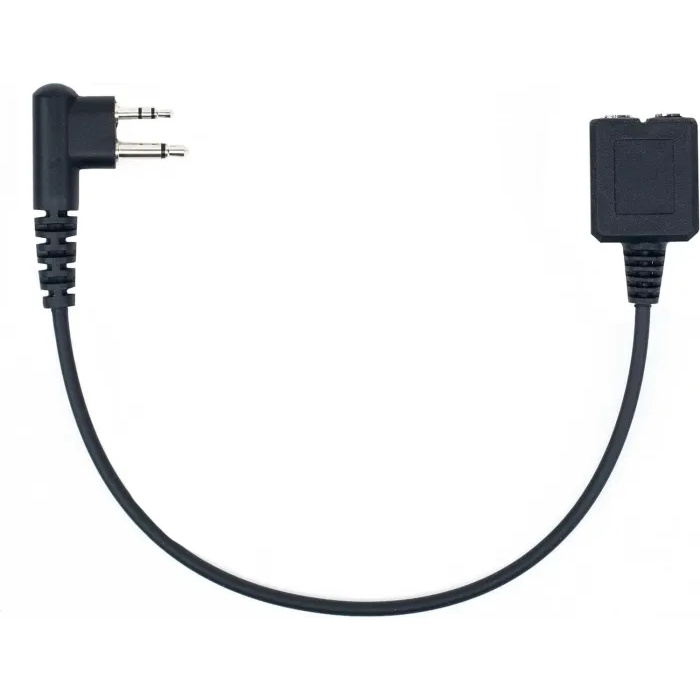

Kenwood K1 headset mico adapter cable for VR-N75 and VR-N76 walkie-talkies

• Regulatory VHF/UHF transmit frequencies: 144-146 MHz / 430-440 MHz (2m and 70cm amateur radio bands)

• Receive frequencies: 88-108MHz (FM wide), 118-136MHz (VHF AM aviation band)

• Modulation mode: analogue FM

• Channels: 16 channels, 12 zones, 192 channels total

• Power: 1W / 5W

• Integrated APRS: TX / RX

• Integrated KISS TNC BT:

  • Allows transmission of APRS data, including GPS coordinates, text messages and station information

  • Works with the Android app to send real-time frames via the Internet or radio

  • Eliminates the need for an external modem or traditional TNC

• Bluetooth: for programming and remote operation via smartphone

• Mobile application: total control of the station, display of maps, log management and network functions
  For Android: https://play.google.com/store/apps/details?id=com.benshikj.ht
  For iOS: Search for "BS HT3" in the app store

• Display: colour screen

• Battery: 2600 mAh Li-Ion

• Connections: USB-C (on battery)

• Audio: 1W speaker

• GPS, CTCSS/DCS, single/double PTT modes, unwanted channel skip, SOS alarm, transmission delay, busy channel lock, scan modes, dual standby

• Antenna: SMA-Female connector

• Dimensions: 60 x 40 x 30 mm

• Weight: 312g

• CE RED and 2-year warranty

What is the purpose of the TNC with KISS mode on the VR-N76?

• It enables you to use packet radio or APRS (Automatic Packet Reporting System), for example, without an external box or modem.

• This means you can connect a smartphone or PC via Bluetooth or USB cable, and directly send/receive APRS frames, text messages or GPS positions, as well as all software supporting KISS TNC mode in Bluetooth and modes: SSTV, Morse code, as well as all software or applications supporting KISS TNC mode.

• This makes the radio autonomous for digimode communications, practical for portable operations, SOTA or emergency situations.

Compatible applications and software using KISS TNC mode

Android: APRSdroid, PinPoint APRS, Robot36, CQ SSTV, Winlink, WoAd, APRS.fi

iOS: RadioMail

Windows: FLDIGI , UI-View32, PinPoint APRS, Winlink
