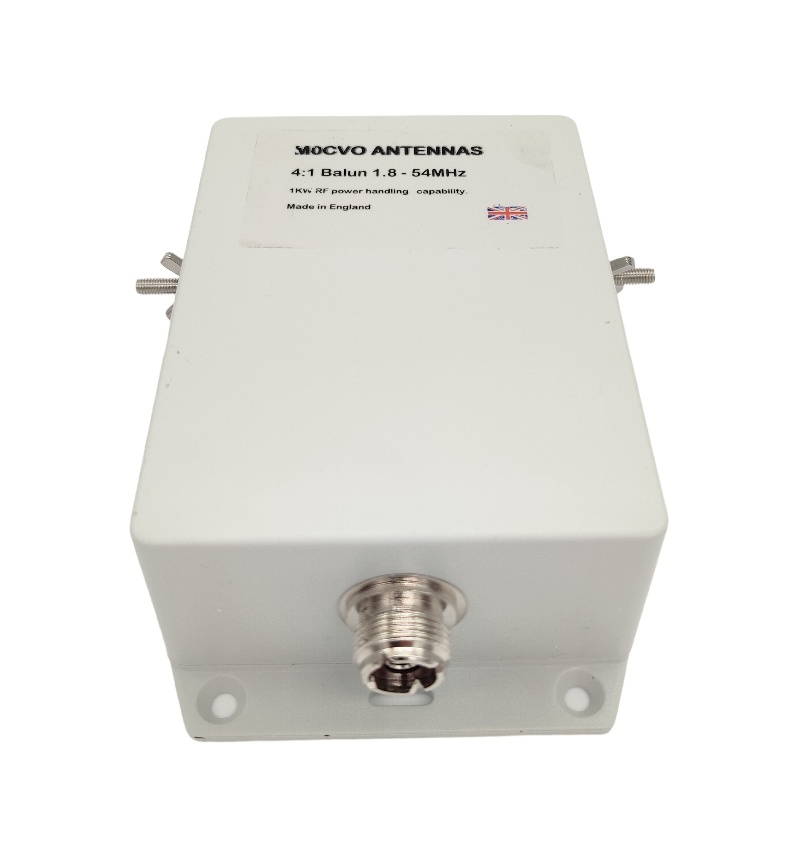

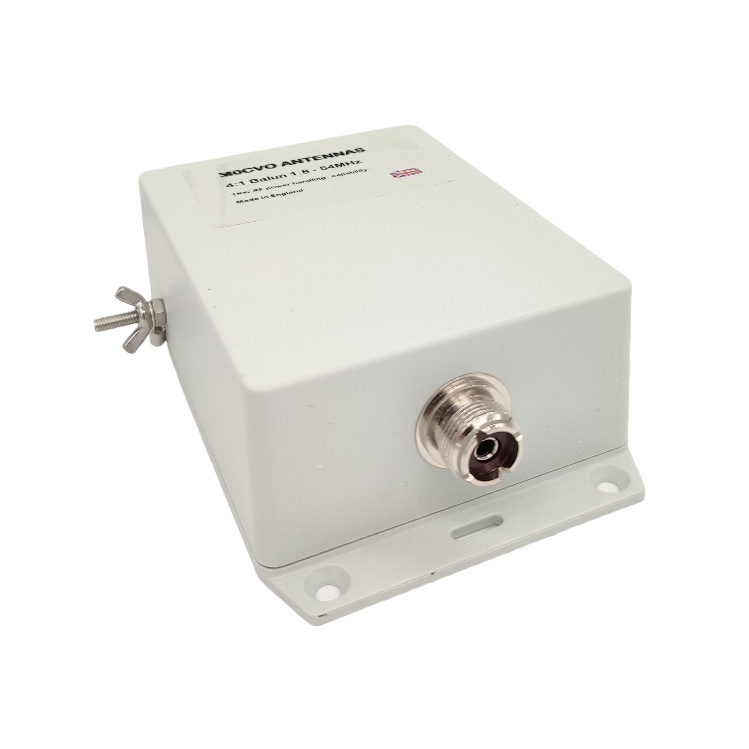

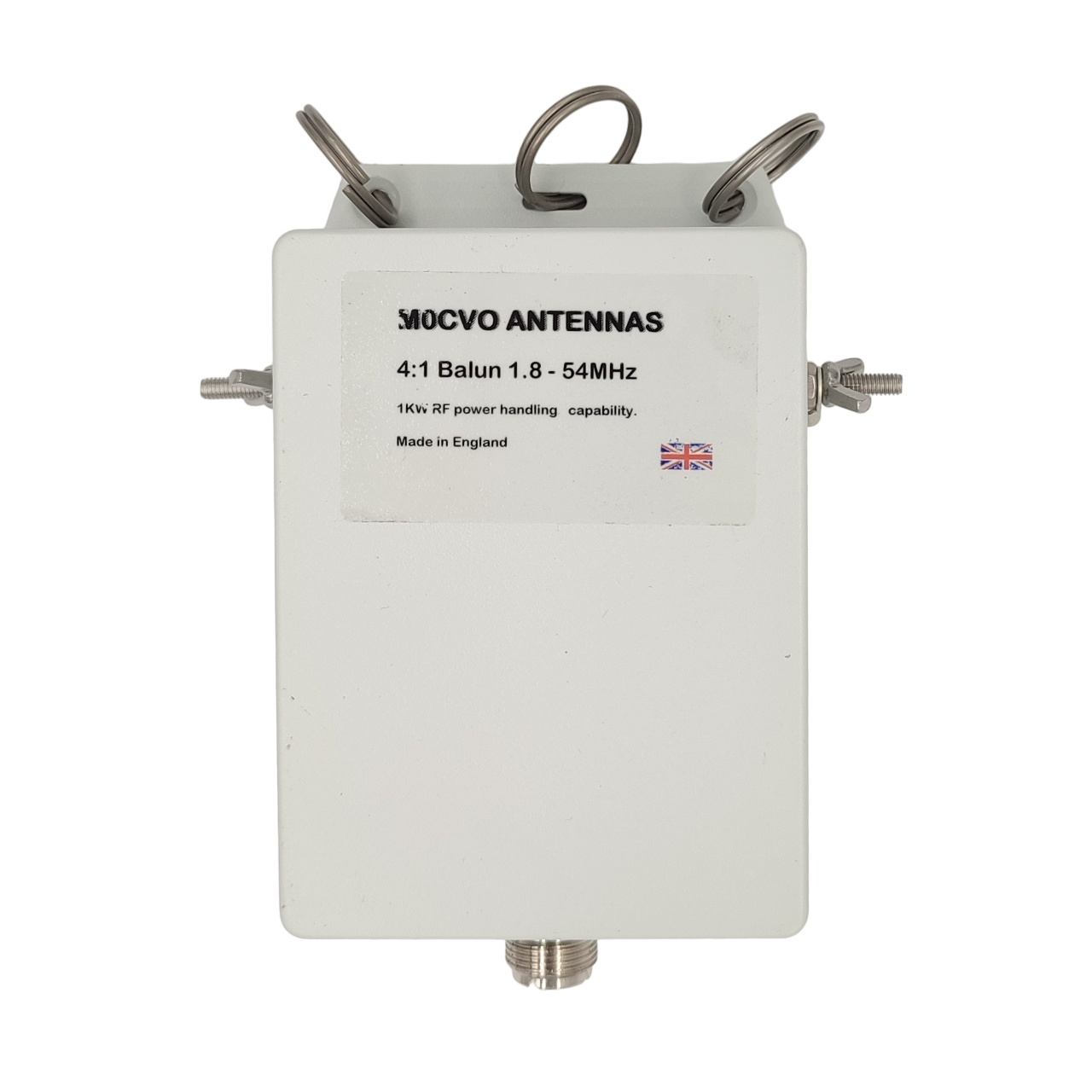

Balun 4:1 HF QRO 1.8 to 54Mhz 1kW M0CVO

No review at the moment

Demander un devis

Balun 4:1 QRO for very high power M0CVO Antennas for Windom antennas, dipoles, fed loops or folded off centre.

RF power of 1kW, for intermittent amateur use and not for continuous AM broadcast use.

Used to reduce the 200 - 300 Ohms at the antenna feed point to the 50 Ohms required by your transceiver.

This allows the antenna to be fed with standard 50 Ohm coaxial cable.

Supplied with: 1 M0CVO 4:1 QRO balun.

More details

Download

Manuel Balun 4:1 QRO M0CVO (EN)

299.22k

Manuel Balun 4:1 QRO M0CVO (FR)

230.97k

Data sheet

Frequency: 3.5Mhz / 7MHz
Type : Dual band dipole trap antenna
Power: 500W
Impedance: 50 Ω
Connector PWR-BU-55 : UHF female (SO-239)
Length : 26m
Weight: 1.85kg
Connector : UHF Female (SO-239)
V.S.W.R. : <1.5
