Radio CB Midland M-Mini USB 40 Channels AM / FM

View larger

Display all pictures

Manufacturer: Midland France

Reference:

Condition: New product

Country of origin:

Germany

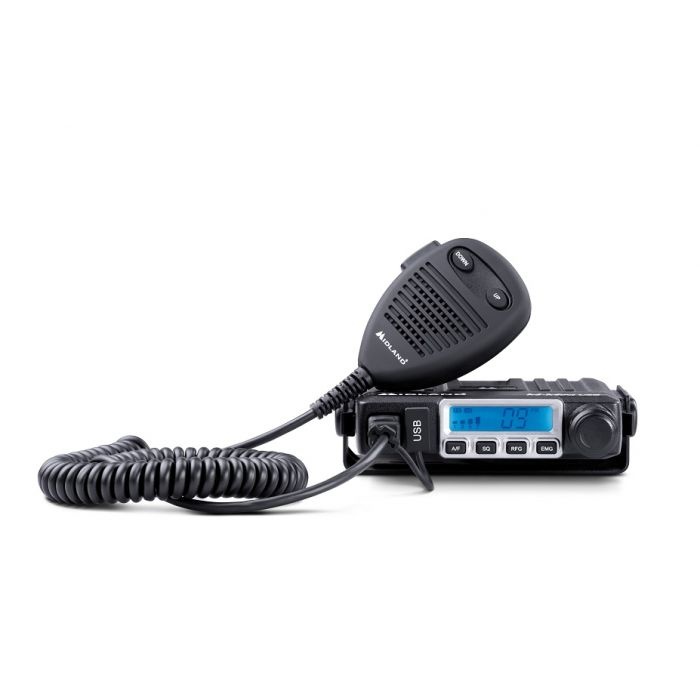

Radio CB Midland M-Mini USB 40 Channels AM / FM

No review at the moment

With a power of 4 Watt and 40 AM / FM channels, the CB M-MINI USB radio is ideal to start in the field of the 27 Mhz CB radio.

Using the included power cable, you can connect the CB M-MINI USB directly to the 12V cigarette lighter socket . Via the front USB socket, you can charge your smartphone or power a USB device.

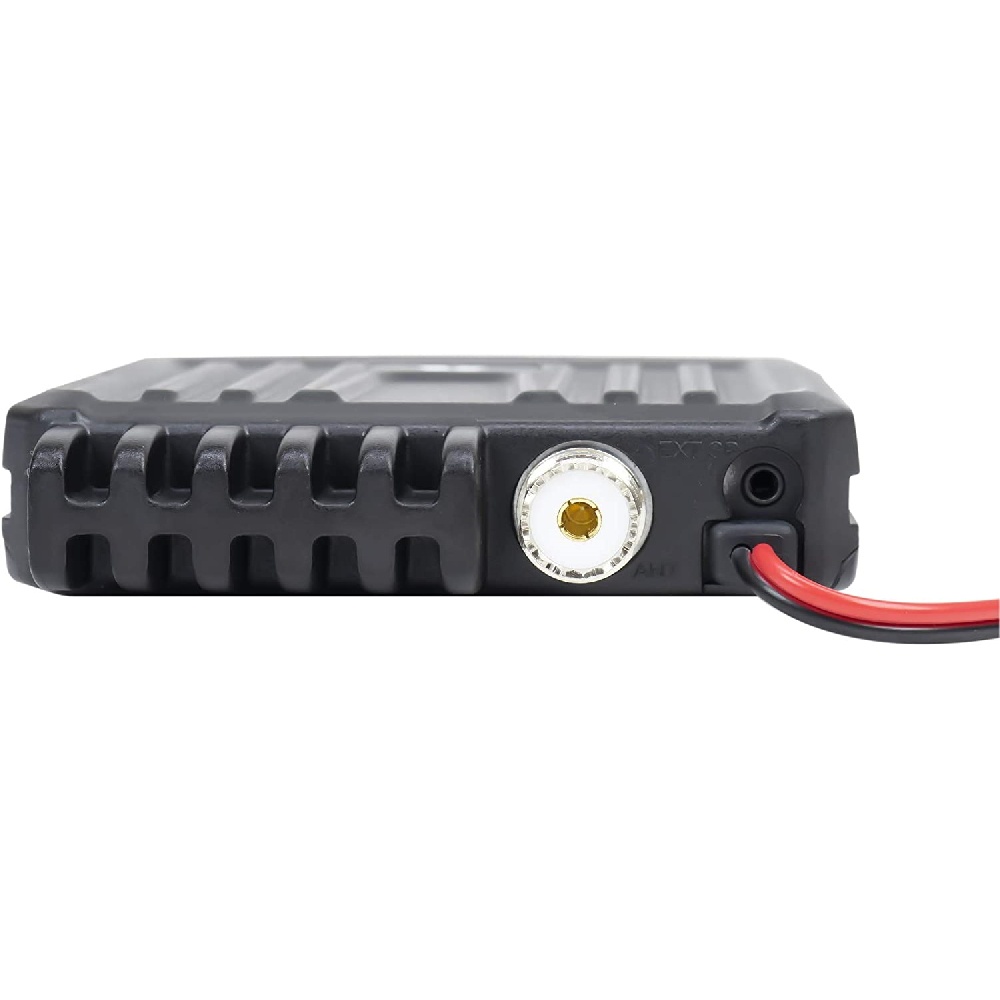

The front of the CB is completed by: the removable microphone with RJ45 socket, the LCD screen with S-Meter, the adjustable reception attenuator (RF gain). On the back you will find the socket for the external speaker.

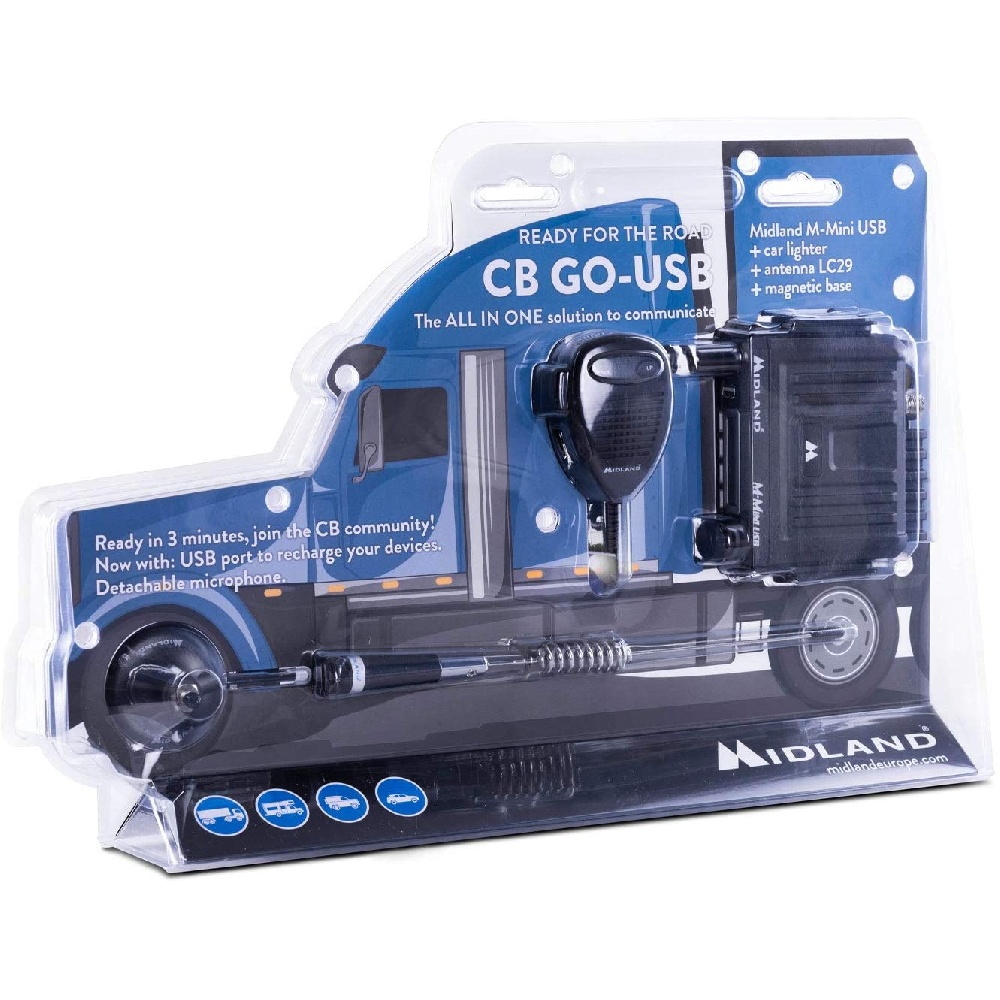

Available in 2 versions: With or without a 29cm Midland LC29 27 Mhz discreet mini-antenna, equipped with a mini magnetic base with cable included.

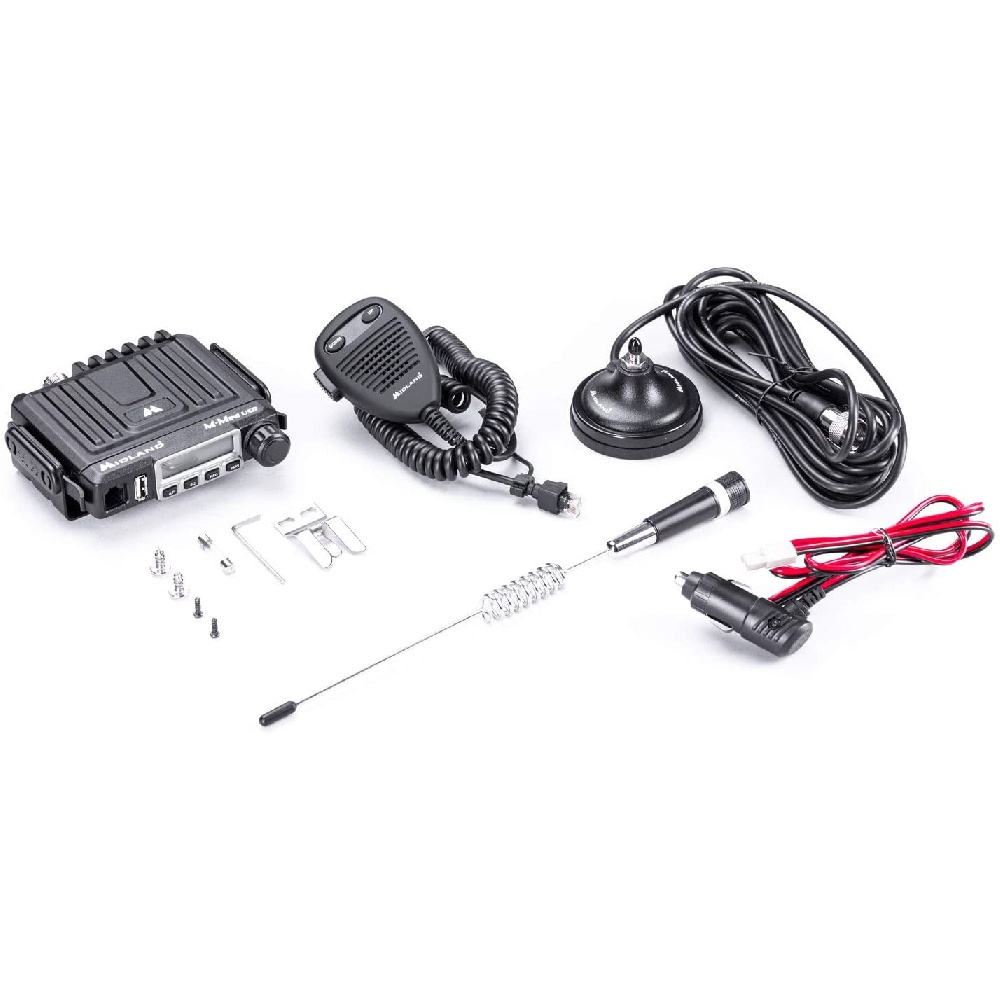

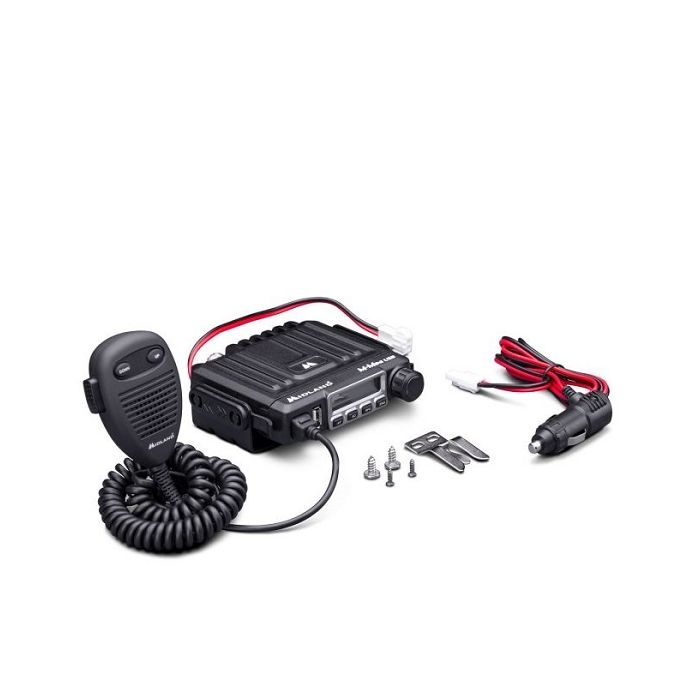

Comes with: 1 transceiver, 1 microphone, 1 power cord with cigarette lighter plug, 1 fixing screw, 1 mounting bracket.

To improve the reception and transmission range, we recommend using a 27 Mhz CB antenna measuring more than 1m.

More details

Download

User manual Midland M-Mini USB

2.4M

Brochure Midland M-Mini USB

925.66k

Modification Midland M-Mini USB

554.1k

Data sheet

Band: Cibi 27 Mhz
Frequency band: I, I2, D4, EU, EC, PL, UK, IN
Output power: 1 Watt - 4 Watt
Modulation: AM 90% +/- 5%, FM 2KHz
Channels: 40 AM / FM
Display: Backlit LCD display
Antenna connector: UHF female (SO-239)
Digital squelch
Emergency channel 9 and 19
Keypad lock
Microphone connector: RJ45
Audio output power: 1 Watt
Supply voltage: 12 Volts
External speaker socket
Optional: Mini Midland LC29 antenna (28cm) with magnetic base (68mm) and 4m coaxial cable with PL-259 (UHF male)
S-Meter, RF Gain
Dimensions HxWxD: 102x100x25 mm
Weight: 450 grams
