Talkie-Walkie 27Mhz ALAN42DS 4W AM FM

New version of the ALAN42DS walkie-talkie 27 Mhz CB, 40 channels AM and FM portable transceiver, approved for the 27Mhz cibi band.

- Usable without license
- Frequencies: 27 Mhz
- Power: 4W AM / FM
- Antenna connector: BNC female

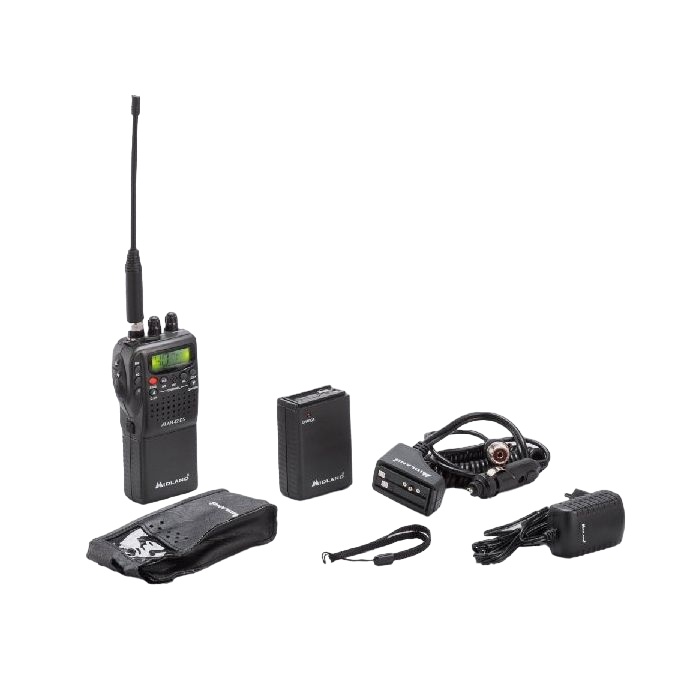

Comes with: 1 ALAN42DS, wrist strap, battery holder, 27Mhz antenna, charger CA42, carrying case, 12V cigarette lighter adapter, user manual in Italian English German Spanish French Portuguese and Polish.

More details

Download

Manual ALAN 42 (FR)

636.24k

Data sheet

Features Alan 42 DS

Audio jack: 2 pin, 2.5mm Mono and 3.5mm Mono, the distance between the two pins is 10mm
Channels: 40 or 80 depending on the country (see below)
Frequency range: 25.615 - 30.105 MHz
Mode: F3E (FM), A3E (AM)
Power supply: 7.2 to 13.2 (nominal 12V)
Antenna connector: BNC female
Dimensions: 30 x 70 x 140 mm
Weight: 220g (without batteries)
CE standards and 2 year warranty

List of frequencies and modes available on the ALAN42 DS:

I: Italy 40 CH AM / FM 1W (26.965-27.405)
I2: Italy 34 CH AM / FM 1W (26.875-27.265)
D: Germany 80 CH FM 1W / 12 CH AM 1W
D2: Germany 40 CH FM 1W / 12 CH AM 1W
EU: Europe 40 CH FM 1W / 40 CH AM 1W
CE: CEPT 40 CH FM 1W
E: Spain 40 CH AM / FM 1W
F: France 40 CH FM 1W / 40 CH AM 1W
UK: 40 CH UK FM 4 Watt + 40 CH EU FM 1W
